Description

Price

1

clutch basket

50532001173

$288.72

2

Inner clutch hub

50532002000

$34.03

3

Inner ring

50532013000

$6.91

4

Friction plate 1.95 mm

50532011000

$19.44

5

PRESSURE PIECE CPL.

78132057144

$30.75

6

Sleeve 7.95x31.65

50532004100

$3.08

7

HH collar screw M5x20 TX30

0025050206

$2.05

8

Spring plate

50532006000

$28.14

9

Clutch spring

50532005000

$11.02

10

Hex nut DIN0936-M18x1.5 right

0936181506

$3.08

11

Wedge lock washer 19.5x29x3.4

0252012002900

$3.08

12

Supporting plate 20x36x2.5

50532017000

$9.62

13

Needle cage K263017

0405263017

$10.93

14

Collar 20x26x19,5

50532015000

$20.94

15

Primary gear wheel 23 teeth.

A42032023023

$60.86

17

Push rod

A42032054000

$11.49

18

O-ring 30x1.5 NBR 70

0770300015

$2.05

29

Preasure plate

50532003000

$24.77

99

Clutch disc pack

50532010033

$163.99

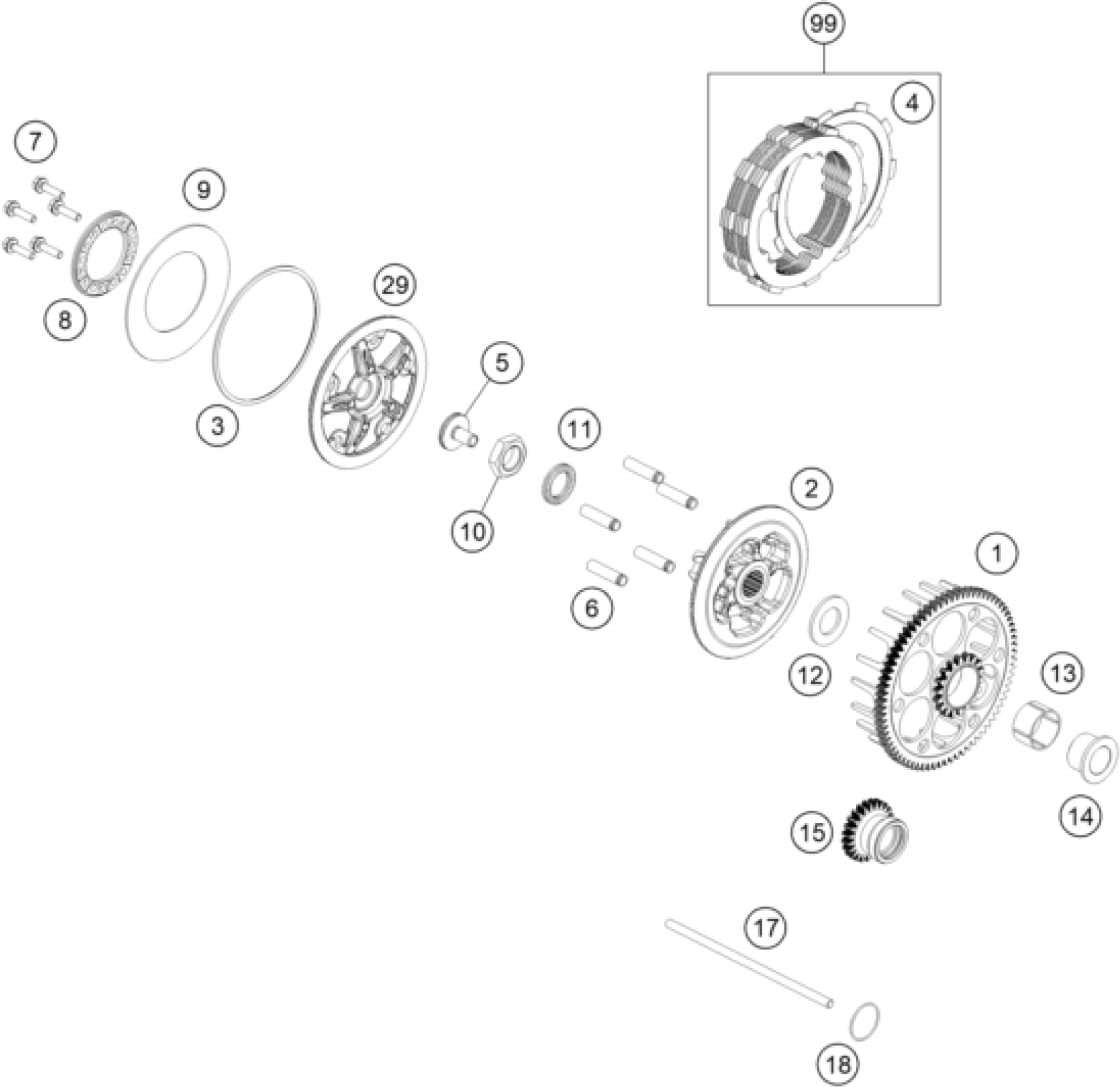

KTM 150 XC-W 2024 CLUTCH Diagram

clutch basket

Inner clutch hub

Inner ring

Friction plate 1.95 mm

PRESSURE PIECE CPL.

Sleeve 7.95x31.65

HH collar screw M5x20 TX30

Spring plate

Clutch spring

Hex nut DIN0936-M18x1.5 right

Wedge lock washer 19.5x29x3.4

Supporting plate 20x36x2.5

Needle cage K263017

Collar 20x26x19,5

Primary gear wheel 23 teeth.

Push rod

O-ring 30x1.5 NBR 70

Preasure plate

Clutch disc pack
