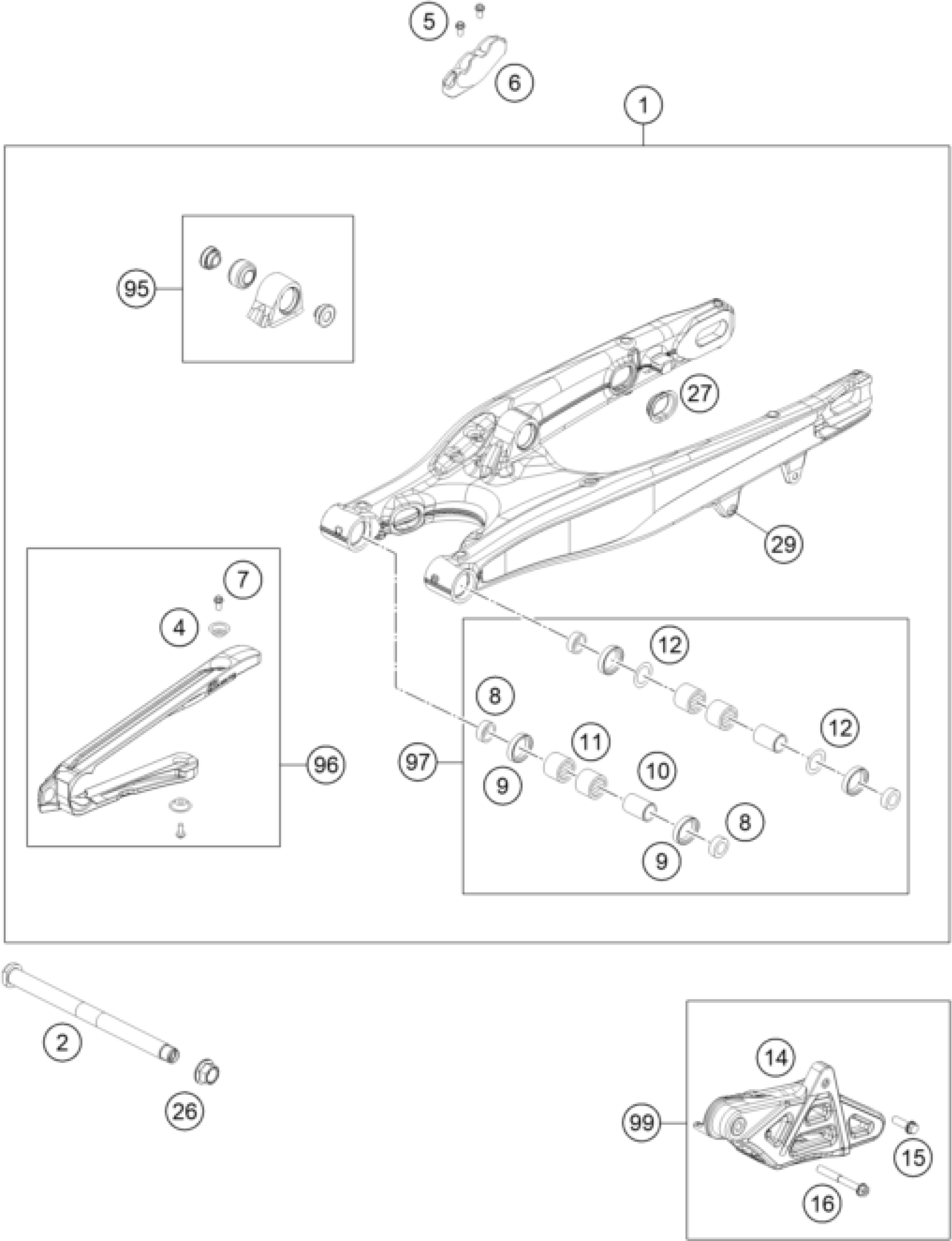

KTM 150 XC-W 2023 SWING ARM Diagram

#

Description
Price

1

SWING ARM CPL. PDS 2017

79604030044

$872.35

2

SWING ARM M16X1,5 2016

79004037000

$78.91

4

chain slider bushing

77304066050

$1.49

5

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

6

BRAKE HOSE GUIDE LOWER 07

77313047000

$5.23

7

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

8

Support f. shaft seal ring 16

77704034000

$13.46

9

radial shaft seal 25x32x7

0760253270

$6.63

10

Bearing sleeve 17x22x38.7 03

59404032000

$10.09

11

Needle bushing HK2212V 22/28/1

0618222812

$9.81

12

STOP DISK 22,2X31,7X1

54603036000

$3.08

15

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

16

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

26

Nut with flange M16X1,5 WS=19

54804038000

$2.05

27

Locking cap swingarm

77204041000

$4.11

29

PRESS IN NUT M6 STEEL ZINC

54603055051

$2.05

95

PIVOT BEARING+BUSH. PDS '17

79604090044

$67.50

96

CHAIN SLIDING GUARD KIT 11-15

51504066044

$28.14

97

SWINGARM REPAIR KIT SX-F/XC-F

78904230010

Unavailable

99

CHAIN GUIDE KIT EXC 14-15

78104070010

Unavailable

14

Chain cuide EXC

78104070100

$54.97
