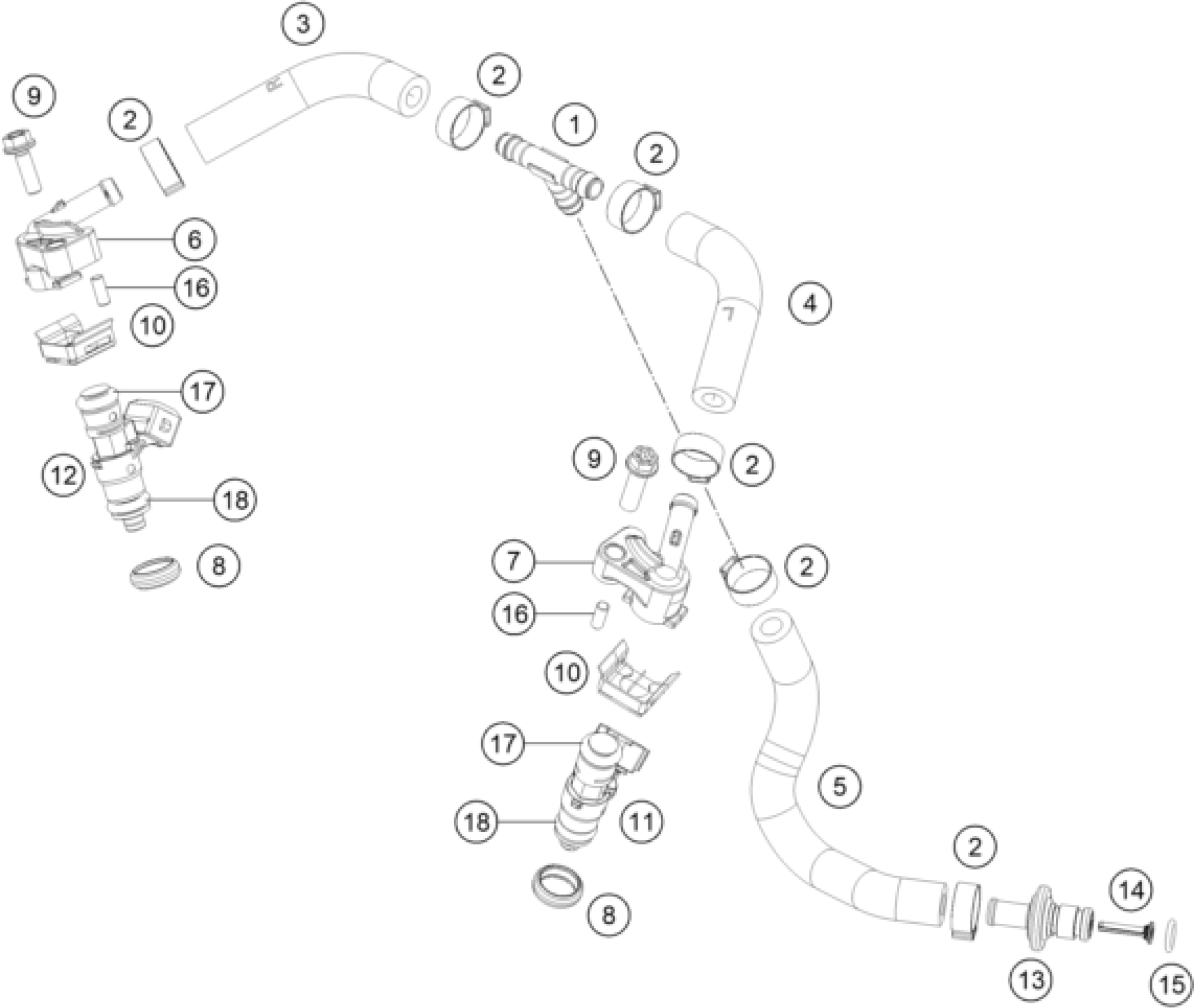

KTM 150 XC-W 2023 FUEL DISTRIBUTOR Diagram

#

Description
Price

1

T-connector 7.5

55441007000

$1.49

2

VARIABLE ONE-EAR CLAMP 15,3MM

00050153706

$5.23

3

TPI hose right

51741019000

$11.59

4

TPI hose left

51741018000

$11.30

5

TPI supply hose

51741020000

$17.66

6

Injector top section right

51741014000

$12.71

7

Injector top section left

51741013000

$12.71

8

Protective ring

55441024000

$3.08

9

HH collar screw M6x20 TX30

0025060206S

$2.05

10

Injector clip

55441017000

$1.49

11

Injector cpl.

55441023044

$118.27

13

Fuel connection

77707010000

$15.14

12

Injector cpl.

51741023044

$121.17

15

O-ring VITON f. plug CPC 0

58507012000

$6.26

14

FUEL FILTER

78141013190

$9.53

16

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

17

O-ring

55641023020

$10.56

18

O-ring

55641023010

$7.66
