Description

Price

1

Silencer EXC

51705083100

$561.18

2

SCREW TORX M5X10

78105081010

$2.05

4

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

5

DAMP. COMPON. BLACK

77205068000

$6.54

6

Endcap cpl.

51705083060

$102.28

7

stuffingyarn package

51705083085

$65.91

8

Pair of washers M6 NORDLOCK

50233041000

$4.11

9

HH collar screw M6x30 TX30

0025060306

$3.08

10

Manifold

51705007000

$522.84

11

exhaust rubber

50405057000

$9.62

12

O-ring 38x3 VITON

0770380030

$5.23

13

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

15

Damper gray

79105068000

$8.03

16

HH collar screw M8x30

0025080306

$3.08

17

RANGE CHANGE METAL NUT M8

54603048000

$4.11

18

Hose spring

50405058000

$4.11

19

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

20

BUSHING 8.5x12x28x8.3

77805069000

$5.98

99

EXHAUST HARDWARE KIT 11-14

00050000811

Unavailable

3

O-RING 74,00X1,50 FKM 75SH

0770740015

$4.11

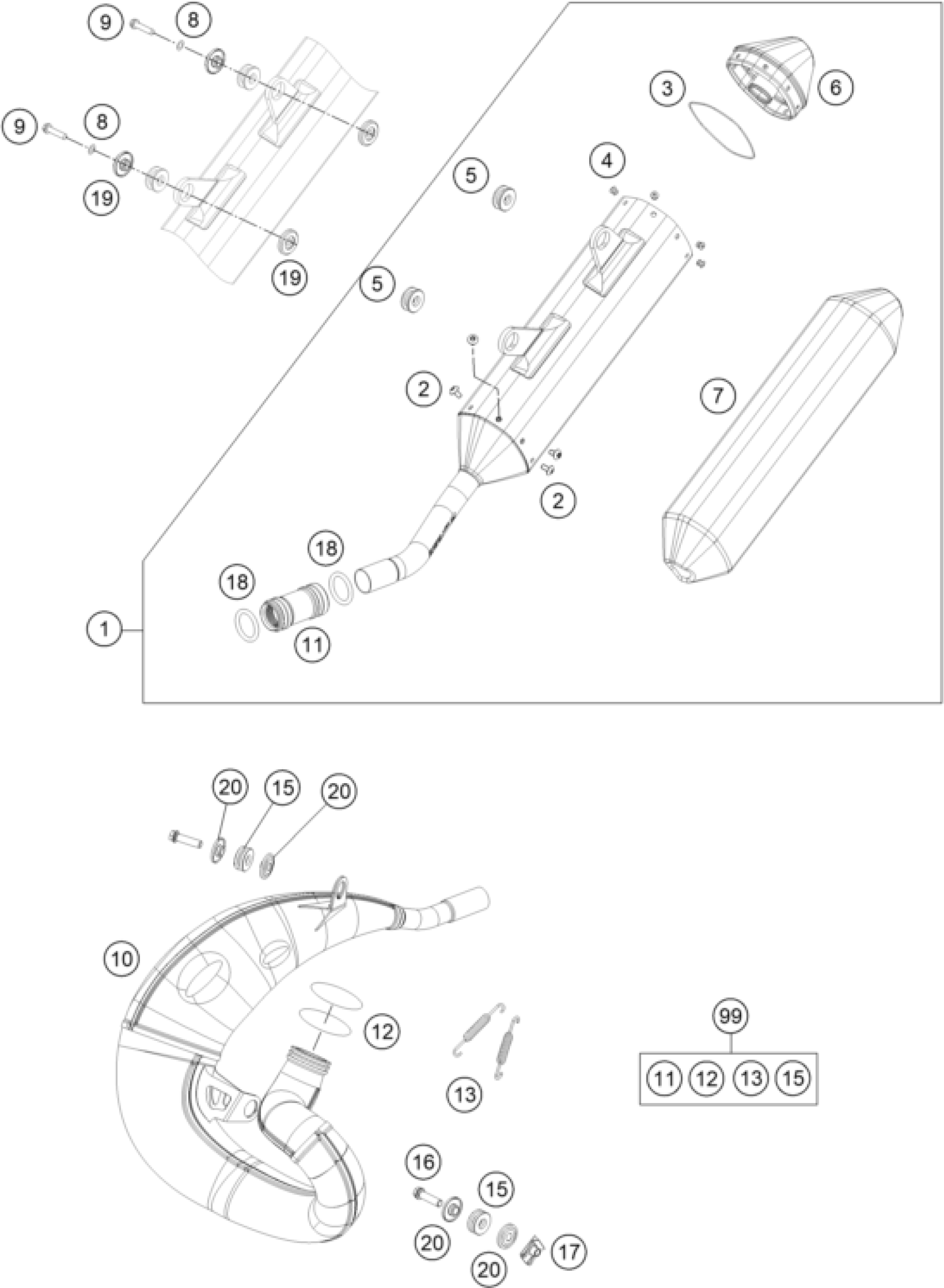

KTM 150 XC-W 2023 EXHAUST SYSTEM Diagram

Silencer EXC

SCREW TORX M5X10

DUMMY RIVET 4,8X 8 NIRO

DAMP. COMPON. BLACK

Endcap cpl.

stuffingyarn package

Pair of washers M6 NORDLOCK

HH collar screw M6x30 TX30

Manifold

exhaust rubber

O-ring 38x3 VITON

TEN.SPRING L=62MM EY.MOVEABLE

Damper gray

HH collar screw M8x30

RANGE CHANGE METAL NUT M8

Hose spring

BUSHING 7.5x12x28x8.3 11

BUSHING 8.5x12x28x8.3

EXHAUST HARDWARE KIT 11-14

O-RING 74,00X1,50 FKM 75SH
