Description

Price

1

Radiator hose eng. thermos.

51735026033

$142.39

2

Radiator, left 19

50535007100

$205.13

3

Radiator right

50535008100

$256.18

4

RADIATOR CAP 1,8 BAR

79035016000

$28.51

5

COLLAR SCREW M6X12 TX

0024060123

$1.49

6

Y-hose cpl.

79135071044

$40.48

7

threaded bushing

79135073000

$13.27

8

Hose clip 18-29

0310000902900

$2.05

9

preformed hose

50535027000

$16.17

10

radiator protector le/ri black

7913503400030

$17.85

11

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

12

O-RING 32,00X2,00

0770320020

$2.05

13

THERMOSTAT 70 DEGREE 04

59435017000

$42.25

14

PVC-HOSE 6X9

50335030001

$6.72

16

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

17

Hose clip 20-32

0310000903200

$2.05

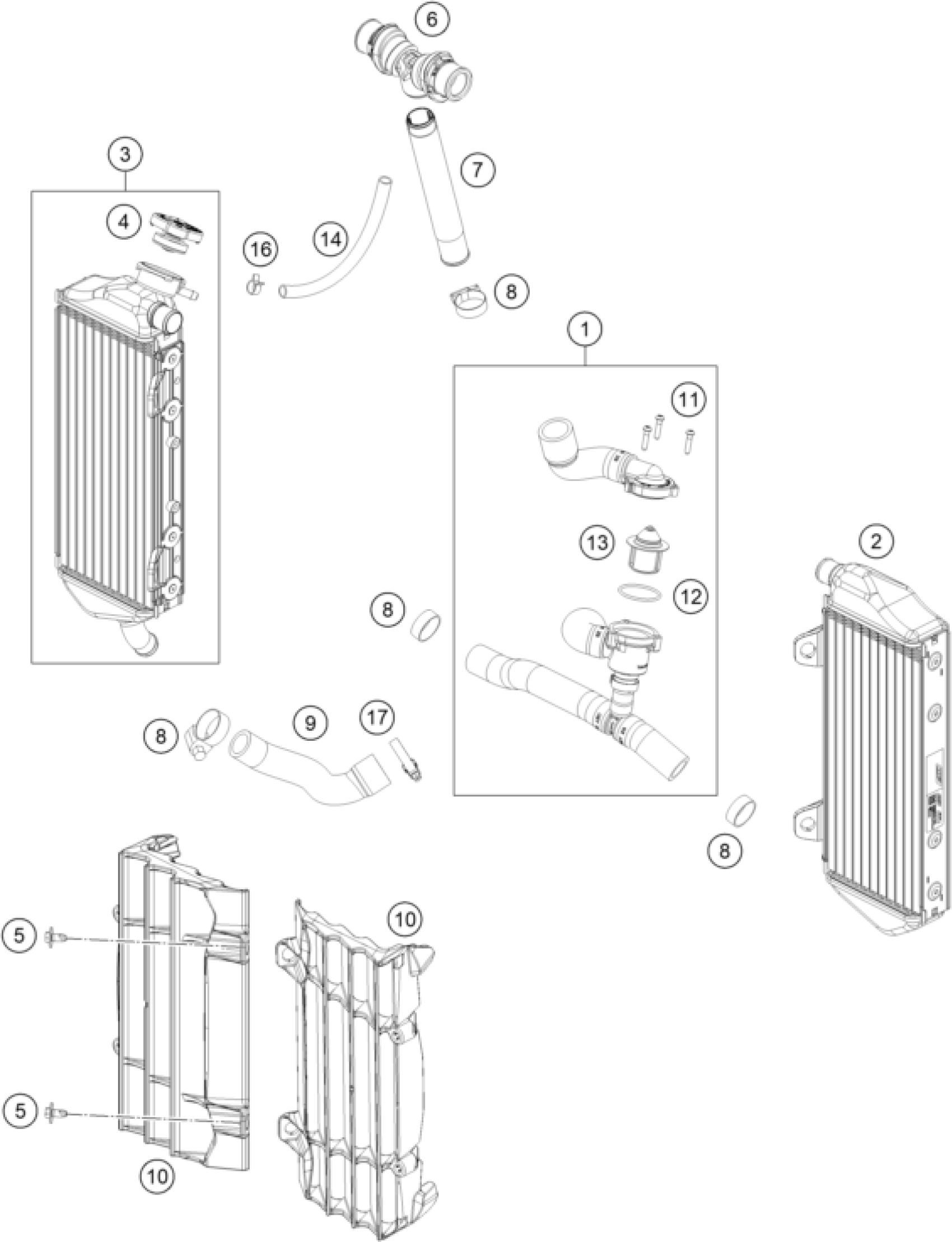

KTM 150 XC-W 2023 COOLING SYSTEM Diagram

Radiator hose eng. thermos.

Radiator, left 19

Radiator right

RADIATOR CAP 1,8 BAR

COLLAR SCREW M6X12 TX

Y-hose cpl.

threaded bushing

Hose clip 18-29

preformed hose

radiator protector le/ri black

SCREW FOR PLASTIC D=4X18

O-RING 32,00X2,00

THERMOSTAT 70 DEGREE 04

PVC-HOSE 6X9

CLAMP YDNAC 10096F (9,6MM)

Hose clip 20-32
