Description

Price

12

MASTER CYLINDER CPL.

79202030044

$268.06

33

COVER HYD. CLUTCH CPL. 2014

5480200310030

$35.52

37

PROTECTION CAP 06

54802037000

$20.94

38

Lever screw cmpl. 06

54802038100

$39.82

39

CLAMP CPL. 06

54802005100

$25.80

40

Push rod cmpl.

54802046000

$23.46

41

BOLT KPL.

54802052000

$29.35

31

Clutch lever cmpl. BREMBO 06

54802031000

$45.15

32

REP. KIT PISTON 9MM

79202032044

$60.39

63

CLUTCH PIPE

79232063000

$112.38

19

OUTPUT CYLINDER CPL.

79232061044

$187.65

20

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

21

CLUTCH PIPE

79232063000

$112.38

22

BLEEDER SCREW CPL.

79032064000

$30.38

23

HH collar screw M6x16 TX30

0025060166

$3.08

24

HH collar screw M6x25 TX30

0025060256

$3.08

25

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

16

VALVE

54802051000

$19.16

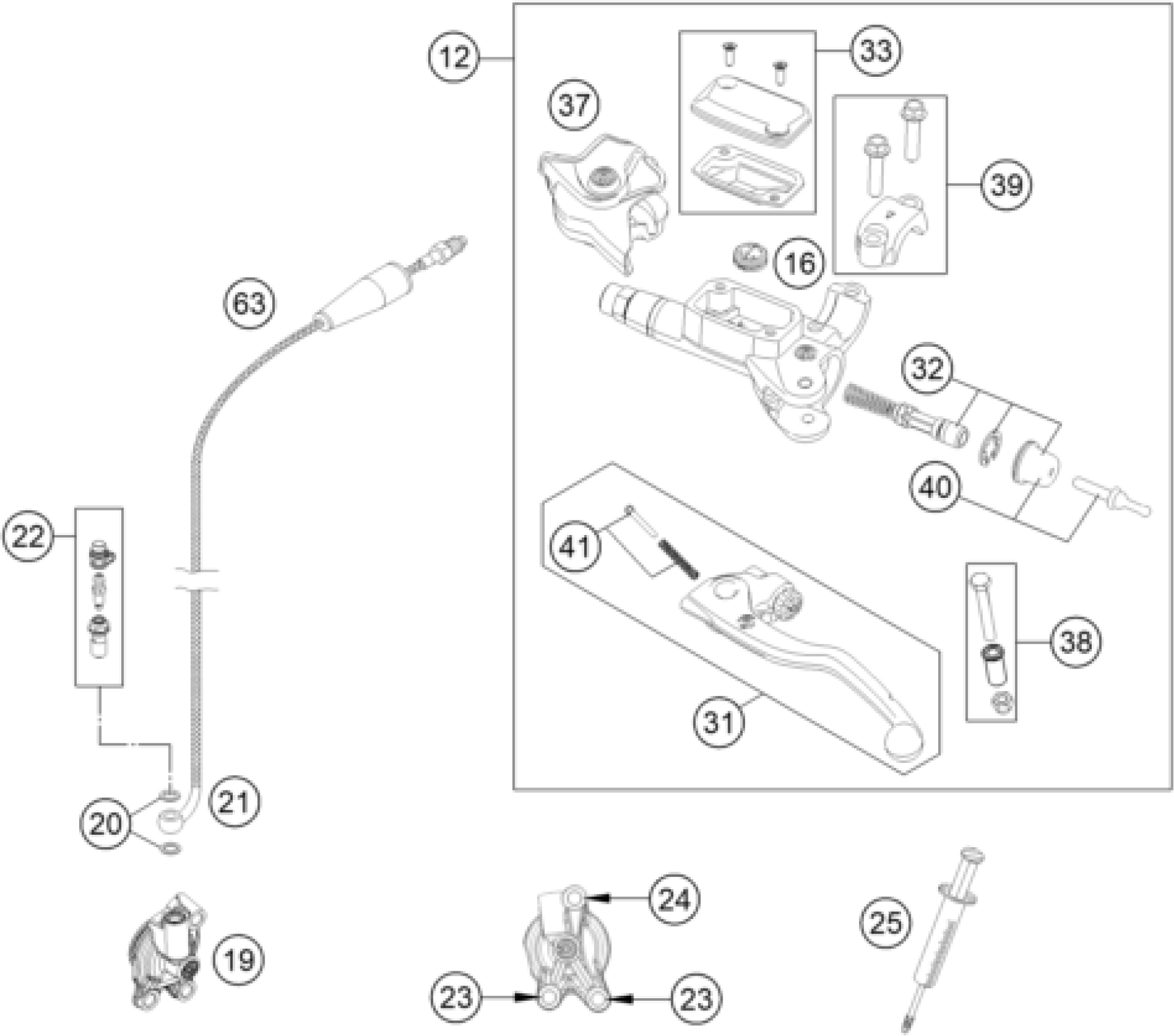

KTM 150 XC-W 2023 CLUTCH CONTROL Diagram

MASTER CYLINDER CPL.

COVER HYD. CLUTCH CPL. 2014

PROTECTION CAP 06

Lever screw cmpl. 06

CLAMP CPL. 06

Push rod cmpl.

BOLT KPL.

Clutch lever cmpl. BREMBO 06

REP. KIT PISTON 9MM

CLUTCH PIPE

OUTPUT CYLINDER CPL.

SEAL RING CU DIN7603- 8X12X1

CLUTCH PIPE

BLEEDER SCREW CPL.

HH collar screw M6x16 TX30

HH collar screw M6x25 TX30

VENT INJEKTION HYDR. CLUTCH

VALVE
