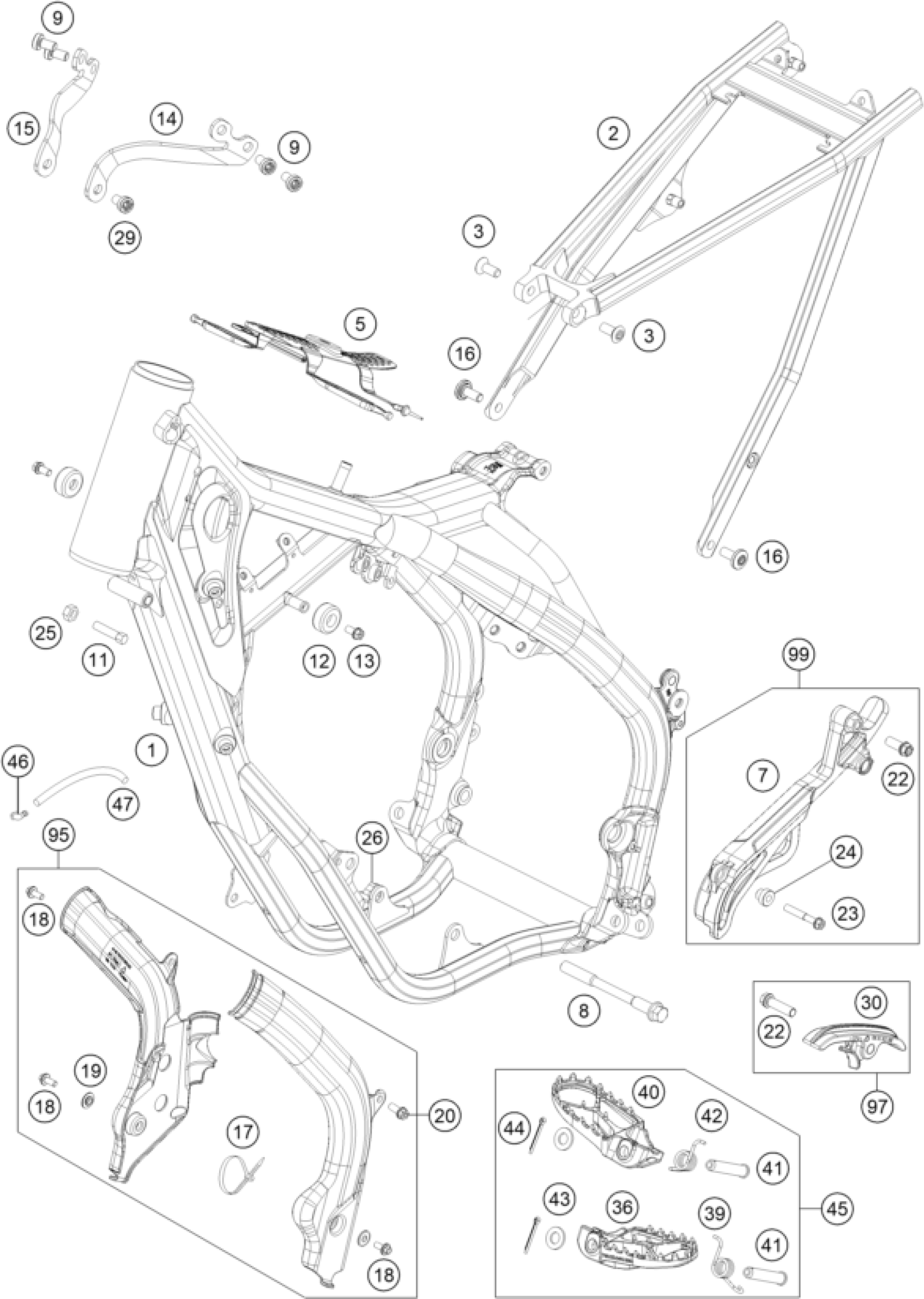

KTM 150 XC-W 2017 FRAME Diagram

#

Description
Price

29

SHCS M8x20 TX45

0035080206S

$5.32

1

RAHMEN ''504Q2''SCHWARZ

5040310100033

$1,580.89

2

SUBFRAME 2016

79003002000

$267.78

3

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

5

TANK REST RUBBER

79607012000

$10.09

7

FRONT CHAIN GUARD 125

50403096000

$19.71

8

engine brac.scr. M10x115

77203014000

$8.97

9

AH-COLLAR SCREW M8X15 TORX45

0035080156S

$2.05

11

SPECIAL SCREW M8X26 WS=10

59001037000

$3.08

12

TANK ROLLER 12X26X12 '98

50307014000

$11.02

13

COLLAR SCREW M6X13 ISA30

0026060136

$3.08

14

MOTOR BRACKET LEFT

50403113000

$35.71

15

MOTOR BRACKET RIGHT

50403114000

$35.71

16

Special screw M8X18 TORX45 SL

79003003000

$3.08

17

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

17

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

18

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

19

Bush f. frame protection 03

54803092060

$4.11

20

HH collar screw M6x12 TX30

0025060126

$3.08

22

HH collar screw M8x30

0025080306

$3.08

23

HH collar screw M6x40 TX30

0025060406

$3.08

24

WASHER DIN0125-A 6,4

0125060003

$1.49

25

Hexagon nut DIN934 M8

0934080003

$2.05

26

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

30

Chain slider, lower part, cmpl

79003053000

$10.56

36

FOOTREST L/S EXC 2017

79603040000

$44.78

39

FOOTREST SPRING L/S 2016

79003045000

$2.05

40

FOOTREST R/S EXC 2017

79603041000

$44.78

41

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

42

FOOTREST SPRING R/S 2016

79003044000

$2.05

43

washer DIN 125 A 10.5

0125100003

$2.05

44

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

45

FOOTREST-SET

79603040033

$113.03

46

ANGLE PIECE 90 DEGREE M10X1

51030022000

$5.23

47

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

95

FRAME PROTECTION SET BLACK

7900309400033

$35.24

97

CHAIN SLIDING KIT BELOW CPL.16

79003053010

$17.85

99

SPROCKET COVER KIT

50403096010

$24.77
