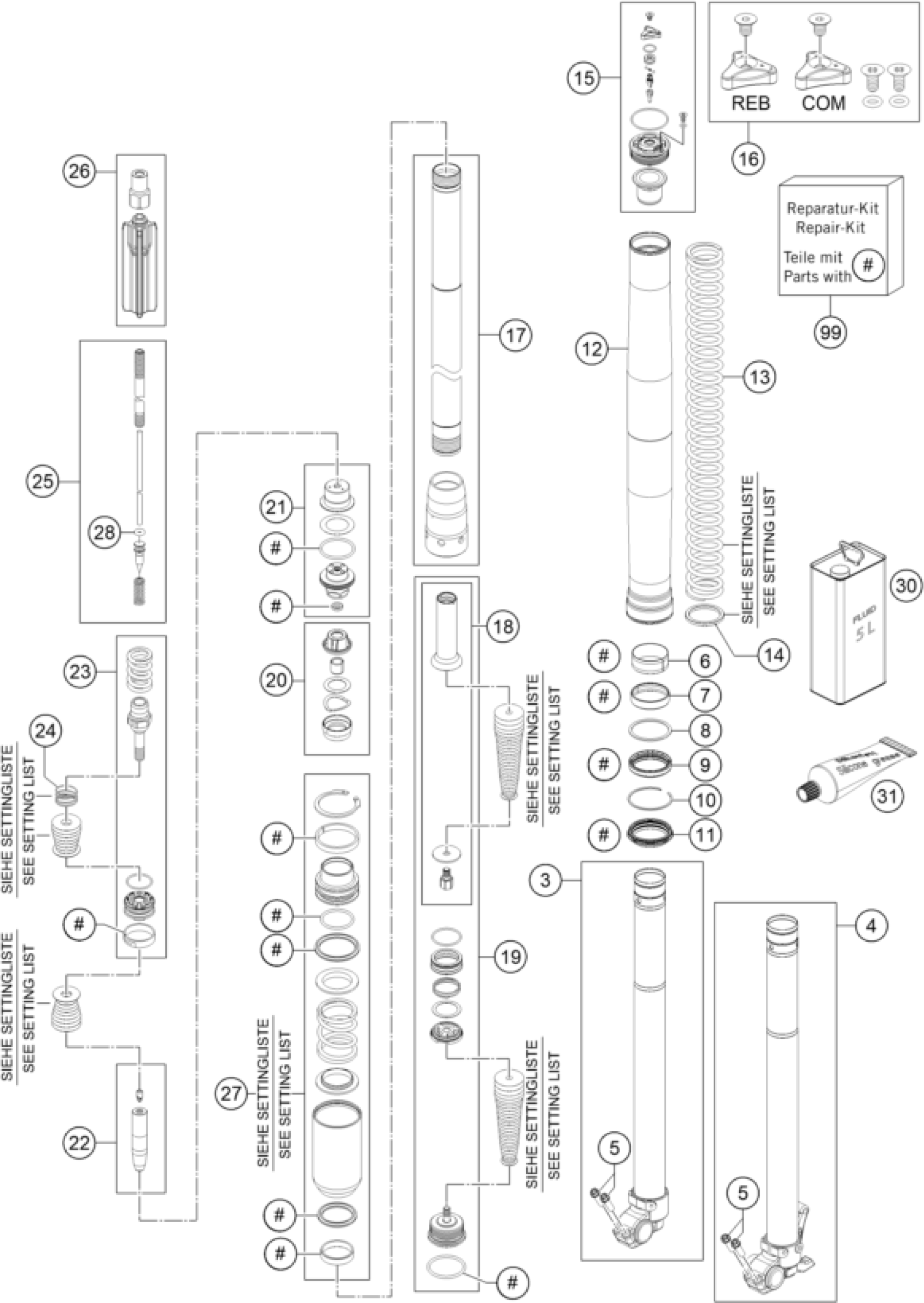

KTM 150 XC 2014 FRONT FORK DISASSEMBLED Diagram

#

Description
Price

5

HH collar screw M8x25

0025080256

$2.05

3

AXLE CLAMP R/S WITH INNER TUBE

48601029S1

$332.03

16

SCREW CAP SMALL PART KIT

R14033

$6.82

17

CARTRIDGE KIT

48601031S

$109.39

18

HYDROSTOP KIT

R14034

$41.04

19

BASE VALVE KIT

48601279S

$55.52

21

SCREW SLEEVE KIT

R14035

$60.95

22

NEEDLE KIT

48601123S

$34.52

13

SPRING D43,8 L465 4,8N/MM SET

91410092S

Unavailable

23

TAP KIT

R14036

$65.72

25

PISTON ROD CPL.

48601054S

$85.48

26

SPRING GUIDE CPL.

48601035S

$14.39

4

AXLE CLAMP L/S WITH INNER TUBE

48601028S1

$392.78

6

Guide bushing 47x49x20

48601008

$12.05

7

Guide bushing 48x52x12

48601009

$12.05

9

Shaft seal SKF 48x57,9x11,4 re

48601179

$13.64

10

Snap ring SB58x1,5 acc drawing

48600070

$2.05

11

Dirt scarper SKF 48mm red

48601178

$12.80

12

Fork outer tube 49,13x577 dt54

48600736

$462.35

13

SPRING D43,8 L465 3,8N/MM SET

91410082S

Unavailable

14

Washer 35x43x2,5 plastic

48600456

Unavailable

14

Washer 35x43x1,5 plastic

48600458

Unavailable

15

Screw cap M51x1,5 compression

48601116E

$62.82

15

Screw cap M51x1,5 Zugsture cpl

48601050E

$62.82

20

Check valve d21mm cpl.

48601025S1

$28.88

24

Spring (11,4) 0,4-8 valve

48600382

$2.05

30

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

31

SILICONE GREASE F. DUST STRI

T511

$34.59

99

REPAIR - KIT

R24001

Unavailable

8

Supportwasher 50x57,6x1,5

48600013

$3.08

13

SPRING D43.8 L465 3.6N/MM SET

91410081S

Unavailable

13

SPRING D43,8 L465 4,0N/MM SET

91410083S

Unavailable

13

SPRING D43,8 L465 4,2N/MM SET

91410084S

Unavailable

13

SPRING D43,8 L465 4,4N/MM SET

91410085S

Unavailable

13

SPRING D43,8 L465 4,6N/MM SET

91410086S

Unavailable

27

Reservoir 36x74,5 cpl.

48601021S

Unavailable

27

PRESSURE TANK L74,5 D36 S2 CPL

48601021S2

Unavailable

27

PRESSURE TANK L74,5 D36 S3 CPL

48601021S3

Unavailable

27

PRESSURE TANK L74,5 D36 S4 CPL

48601021S4

Unavailable

28

O-ring 2,2x1,6 Viton75 green

46811265

$1.49
