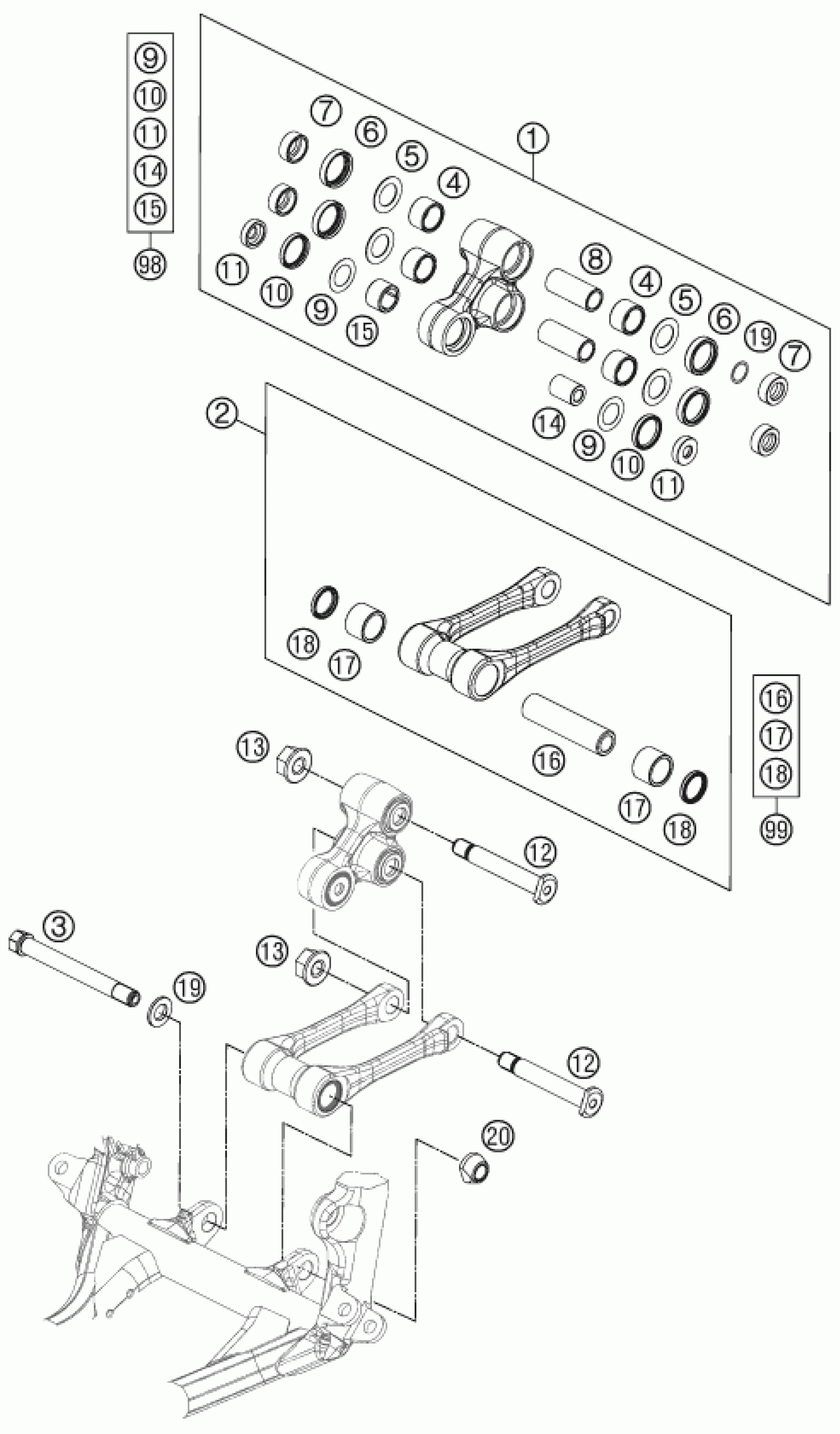

KTM 150 XC 2013 PRO LEVER LINKING Diagram

#

Description
Price

4

Needle bushing HK 2016 / 20x26

54603097000

$15.04

6

radial shaft seal 25x32x7

0760253270

$6.63

10

Radial shaft seal 24X30X5

0760243050

$5.23

20

NUT TIE-ROD BEARING

77404084020

$19.35

12

Bolt triangle lever arm M14x1.

77204085000

$48.99

14

Bearing sleeve 10x18x25.5

77204080010

$8.41

15

NEEDLE BUSH HN1816 RS 18/24/16

0618182416

$12.89

16

BEARING SLEEVE

77204084010

$22.15

17

NEEDLE BEARING HK2220 22X28X20

0618222820

$11.30

18

Radial shaft seal G22x28x4

0760222841

$4.11

19

Steel washer 15.2x19x0.1

54603090010

Unavailable

19

STEEL WASHER 15,2X19X0,2

54603090020

Unavailable

19

STEEL WASHER 15,2X19X0,3

54603090030

Unavailable

98

TRIANGLE LEVER REP. KIT FRONT

77204080090

Unavailable

99

PULL ROD REP. KIT SX/SX-F

77204083010

Unavailable

21

WASHER TIE-ROD BEARING M14

77404084010

$6.82

1

TRIANGLE LEVER CPL. SX 2013

7720408014401

$284.42

2

PULL ROD CPL.

7720408304401

$210.18

3

BOLT TIE-ROD BEARING M14

77404084000

$53.85

5

Shim 20x31.9x1

59033080000

$2.05

7

Bucket f. shaft seal ring 25X1

77204080130

$10.93

8

Bushing sleeve 15x20x48

54603081000

$24.77

9

Shim 29.75x19x0.4

50180604

$2.05

11

Bucket f. shaft seal ring 24x6

77204080020

$9.90

13

hex nut M14x1.5 WS17

77204087000

$2.05
