Description

Price

1

HAND BRAKE CYLINDER CPL. SX 09

77013001044

$249.17

9

HANDBRAKE CYL.COVER CPL.NATURE

50313003000

$24.68

10

REP.SET PISTON D=9MM 2009

54813008300

$62.92

11

CLAMP CPL. NATURE

50313005000

$26.08

12

HH collar screw M6x25 TX30

0025060256

$3.08

15

LEVER SCREW CPL. 2001

50313006100

$12.61

20

HAND BRAKE LEVER + SPRING 2009

54813002200

$25.80

21

ADJUSTING SCREW CPL. SX 2009

54813007300

$30.00

23

PROTECTION CAP HAND BRAKE CYL.

50313004000

$12.61

30

Brakeho. Front 1235mm 2000

59013010000

$127.71

31

banjo bolt M10x1x19 black

54813020100

$9.90

32

sealing ring DIN 7603 10x14x1

0603100141

$2.05

34

VALVE

54802051000

$19.16

80

Brake fluid DOT5.1 0,25L

00062030000

$12.52

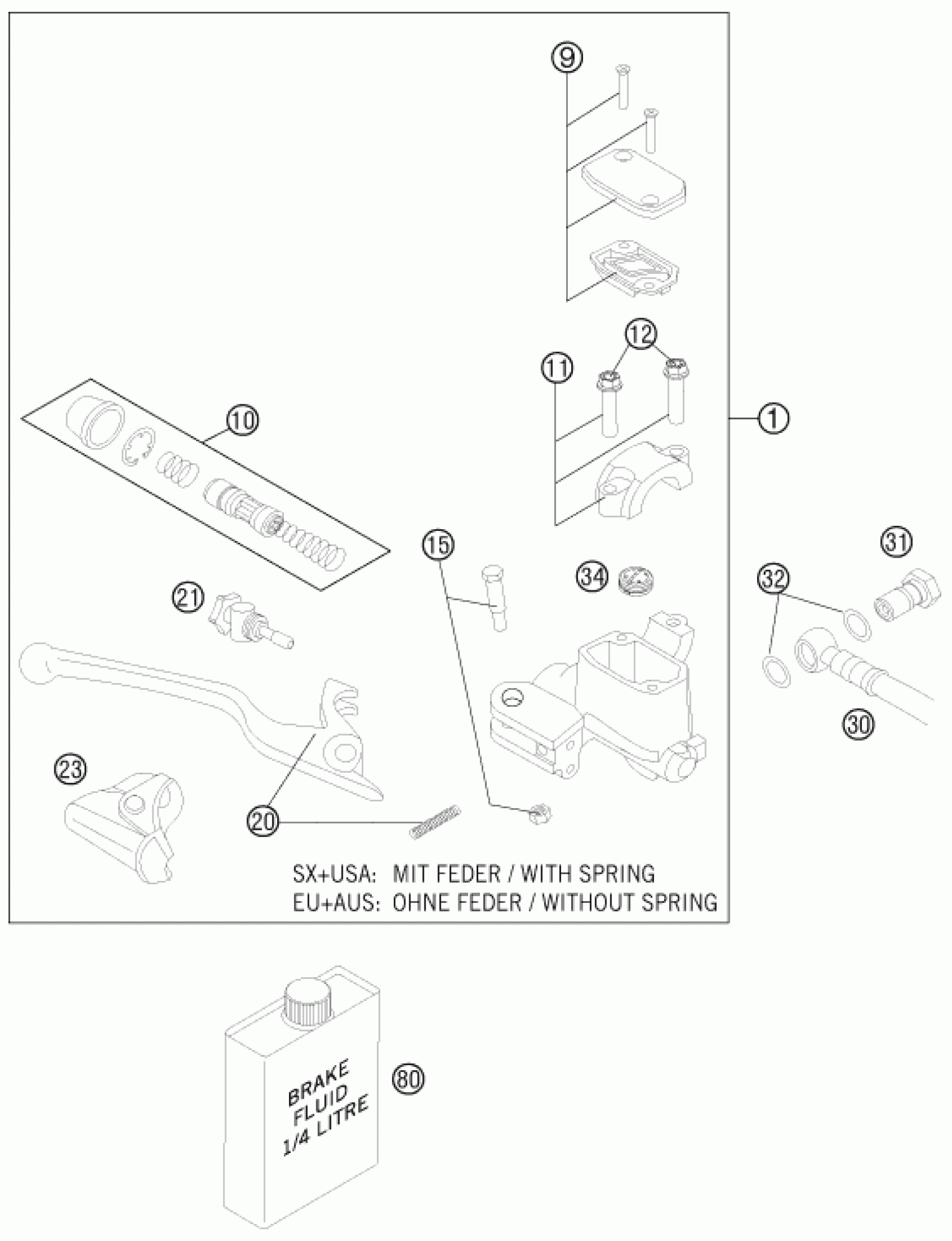

KTM 150 XC 2013 FRONT BRAKE CONTROL Diagram
