Description

Price

1

START NUMBER PLATE CPL. WHITE

7730800704428

$26.64

3

BRAKE HOSE GUIDE BLACK 08

7730802200030

$7.47

4

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

5

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

6

HH collar screw M5x16 TX30

0025050166

$2.05

7

FRONT FENDER 07

7730801000004

$30.94

9

SPACER BUSHING 03

54808020000

$4.11

11

HH collar screw M6x20 TX30

0024060206

$3.08

14

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

20

REAR FENDER SX WHITE 11

7720801300028

$70.12

22

COLLAR NUT M12X1/WS17 H=5MM

50314057050

$6.63

23

BUSHING FOR SEAT FASTENING 03

54807048000

$10.65

24

HH collar screw M6x25 TX30

0025060256

$3.08

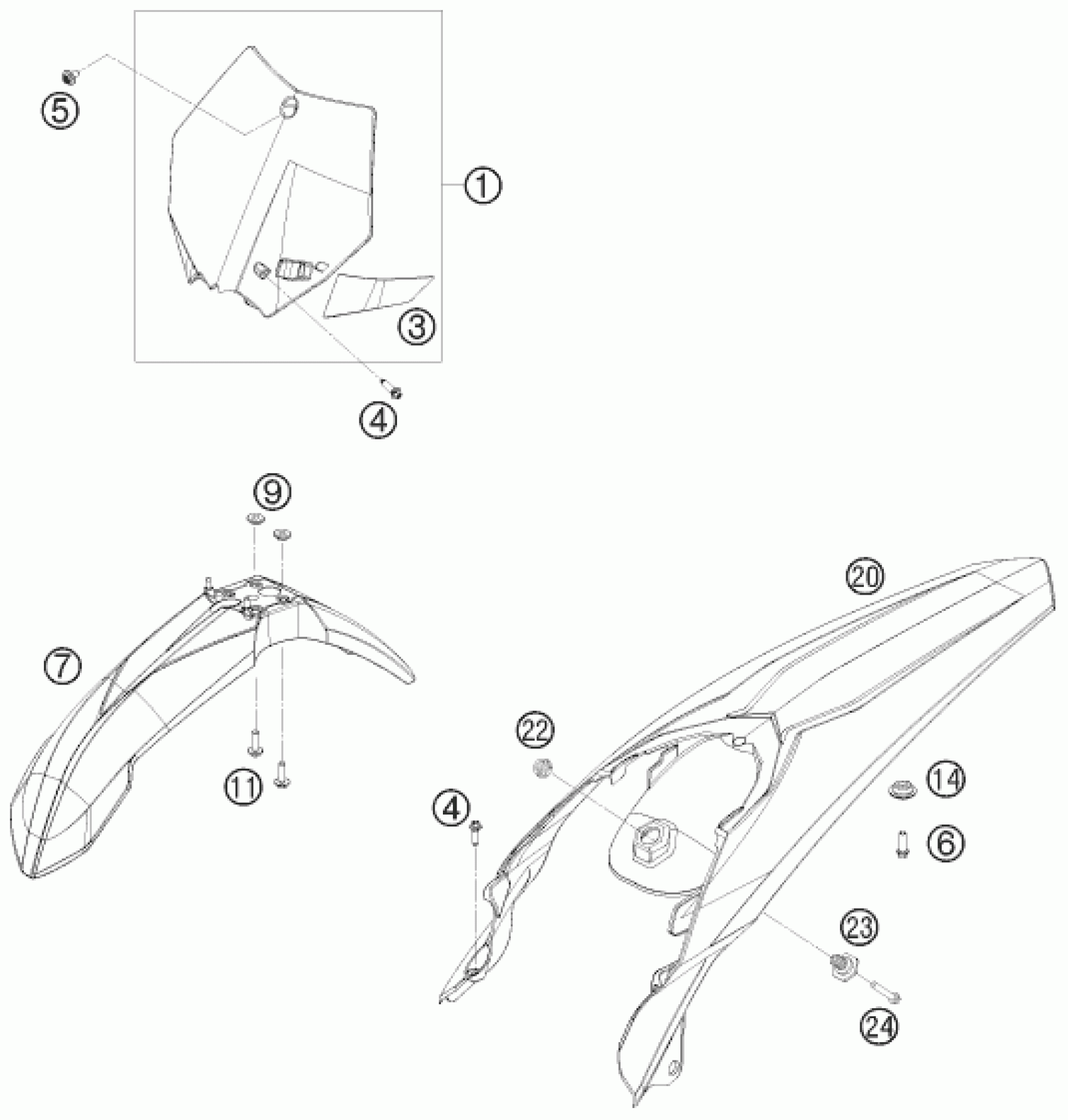

KTM 150 XC 2011 MASK, FENDERS Diagram

START NUMBER PLATE CPL. WHITE

BRAKE HOSE GUIDE BLACK 08

EJOT PT SCREW K60X20 ALU WS=6

HH COLLAR SCREW M6X10 TX30

HH collar screw M5x16 TX30

FRONT FENDER 07

SPACER BUSHING 03

HH collar screw M6x20 TX30

COLLAR BUSH. F.REAR FENDER 07

REAR FENDER SX WHITE 11

COLLAR NUT M12X1/WS17 H=5MM

BUSHING FOR SEAT FASTENING 03

HH collar screw M6x25 TX30
