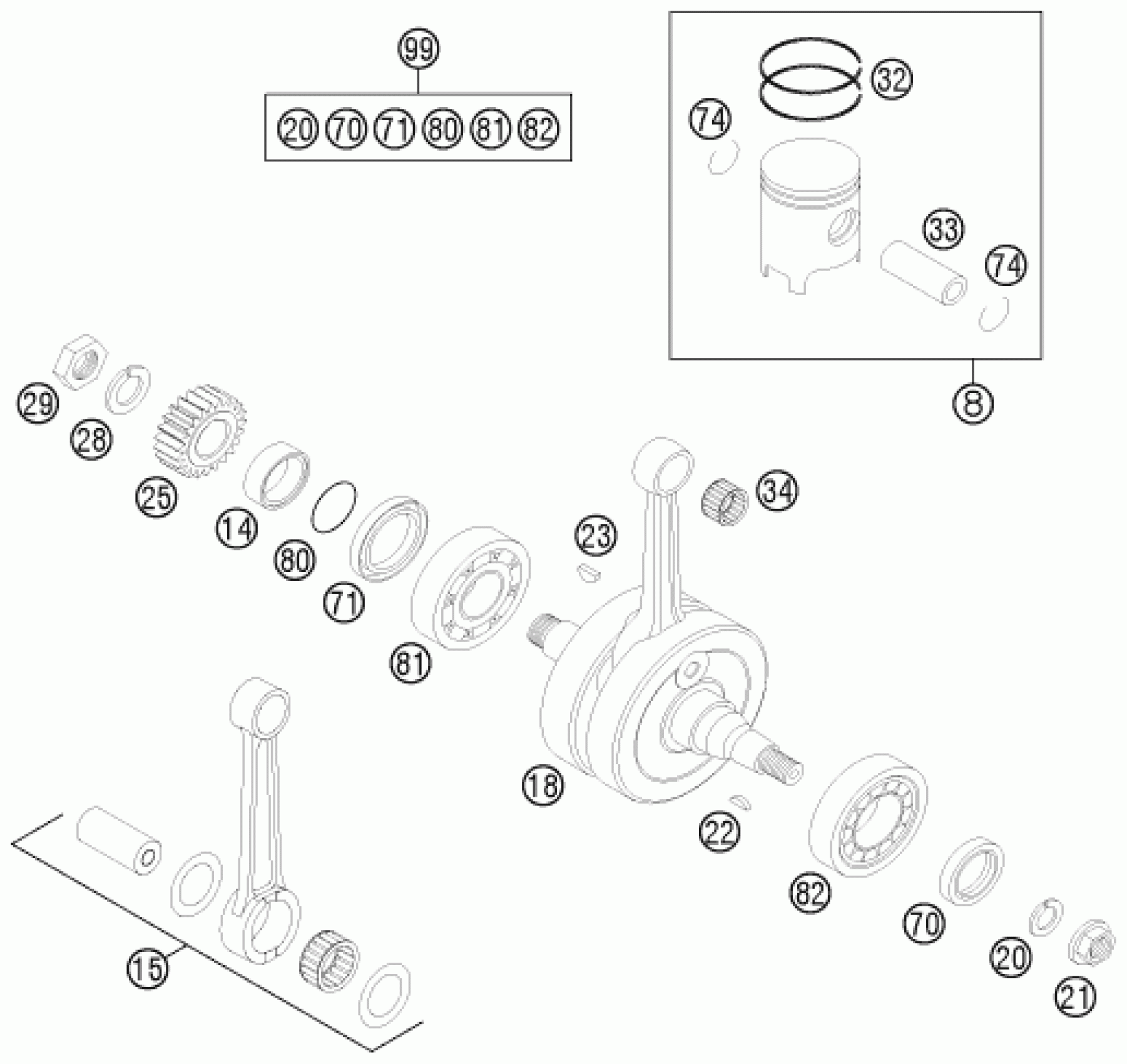

KTM 150 XC 2011 CRANKSHAFT, PISTON Diagram

#

Description
Price

8

PISTON I CPL. 144 09

51530007300 I

$252.25

8

PISTON II CPL. 144 09

51530007300 II

$251.32

14

SPACER BUSHING 12MM

54633014100

$20.94

15

CON.ROD REPAIR KIT 125'07

50330015100

$368.01

18

CRANKSHAFT CPL. 144 SX 2007

51530018000

$784.92

20

LOCKING RING VSK 12

50230029012

$2.05

21

COLLAR NUT M12X1 R/S

49030021000

$2.05

22

WOODRUFF KEY DIN6888-3X5X13

0888030050

$2.05

23

WOODRUFF KEY 5X6,5 HARDED

6946005

$2.05

25

PRIMARY PINION 23-T 125/200 06

50332023123

$77.41

28

LOCKING RING VSK 16

50230029016

$2.05

29

HEXAGON NUT M 16 X 1,5 - L/S

50330029000

$10.00

32

TRAPEZOID RING 144 08

51530032000

Unavailable

33

PISTON PIN 150 SX 08

51530033100

$17.85

34

NEEDLE BEARING KBK 15X19X20

51030034000

$25.05

70

SHAFT SEAL RING 25X35X7 BTSL

0760253570

$16.79

71

SHAFT SEAL RING 32X45X6,5 BT

0760324564

$12.33

74

WIRE LOCK RING 15X1

50330074500

$2.05

80

O-RING 25,00X2,00 NBR 70

0770250020

$3.08

81

BALL BEARING 6305 JR2 CS36

0625063055

$43.19

82

CYL.ROLLER BEAR.NJ206 ET2XCS46

50330082000

$83.21

99

CRANKSHAFT REP. KIT 125-200

00050002300

Unavailable
