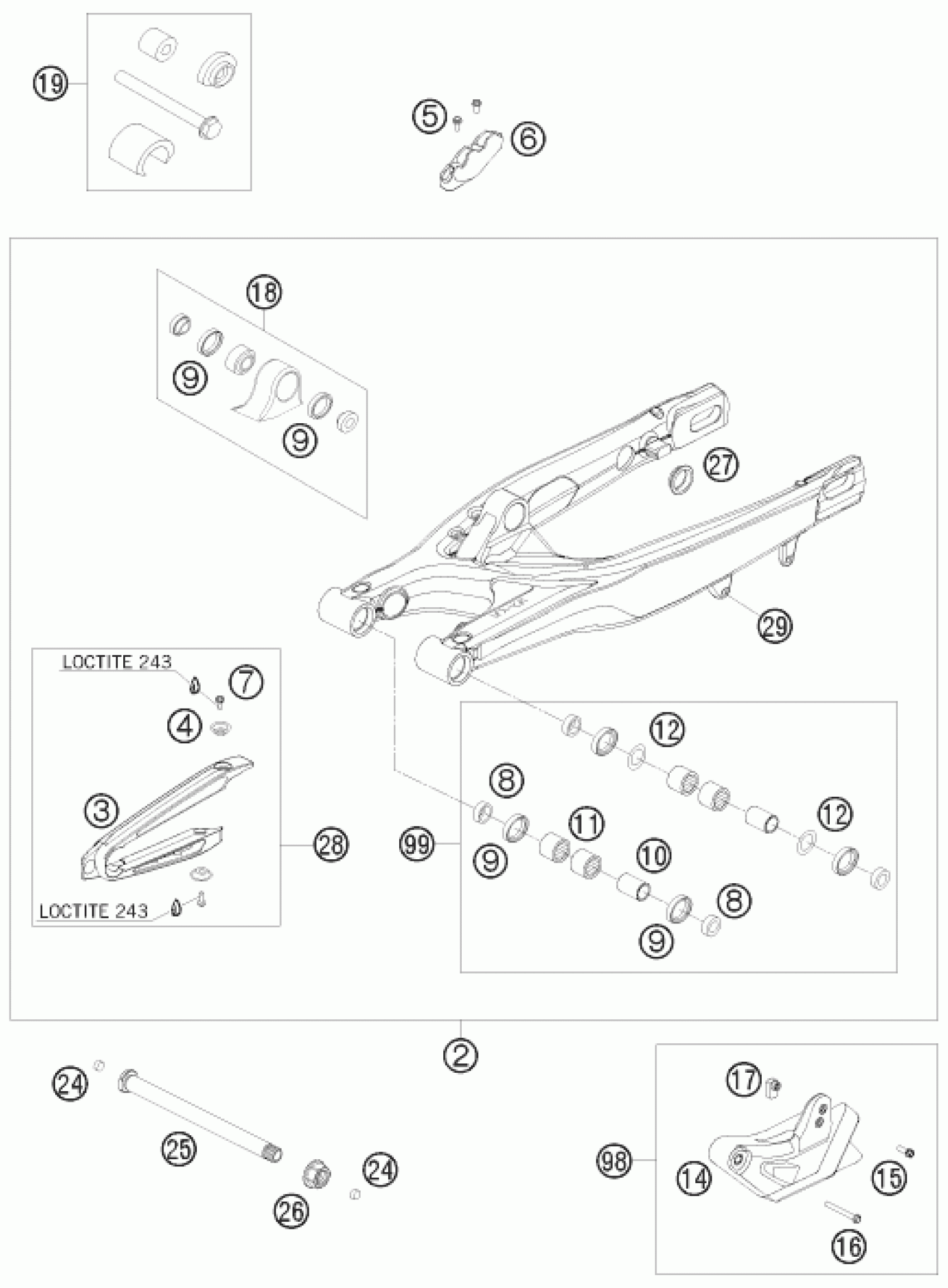

KTM 150 XC 2010 SWING ARM Diagram

SWINGARM CPL. 07

77304030044

$555.29

CHAIN SLIDING PROTECTION

77304066000

$21.87

chain slider bushing

77304066050

$1.49

SPECIAL SCREW M 5,0X10

0009050103

$2.05

BRAKE HOSE GUIDE LOWER 07

77313047000

$5.23

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

Bucket f. shaft seal ring 03

54804034000

$5.23

radial shaft seal 25x32x7

0760253270

$6.63

BUSHING SLEEVE F. SWING ARM 03

54804032000

$10.93

NEEDLE BEARING HK 2216

58033097000

$14.02

STOP DISK 22,2X31,7X1

54603036000

$3.08

INSERTION NUT F. CHAIN GUIDE

77304070030

$8.87

PIVOT BEARING+BUSH. PDS '99

50304090044

$64.69

TOOL BEARING MOUNTING PDS

50329000044

$752.92

PLUG SFL13

55009086000

$2.05

SWINGARM BOLT M16X1,5 07

77304037000

$56.65

Nut with flange M16X1,5 WS=19

54804038000

$2.05

CLOSING COVER ROUND 03

58404041100

$1.49

CHAIN GUARD CPL. 07-11

77304066010

$25.14

PRESS IN NUT M6 STEEL ZINC

54603055051

$2.05

SWINGARM REPAIR KIT 05-15

54804230210

Unavailable

CHAIN GUIDE CPL.

78004070000

$43.94

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

HH COLLAR SCREW M6X45 TX30

0025060456

$2.05

Chain guide kit

77304070310

$57.40
