Description

Price

2

FLYWHEEL KOKUSAN 2K-2 CPL. '97

54739005144

$291.52

5

STATOR KOKUSAN 2K-2 2005

54839104000

$284.70

10

SPARK PLUG CAP NGK REINFORC.04

47039090000

$31.44

12

SEALING CUP FOR SPARK PLUG

50231012000

$4.11

13

SPARK PLUG

51539093000

$17.57

16

IGNITIONCOIL ''IG5128''

59039006000

$66.19

31

ELECTRONICBOX 150XC 10

51539031300

$202.76

32

WIRING HARNESS F.CDI 2-ST.SX07

54839032300

$65.44

38

COLLAR SCREW M6X12 TX

0023060123

$2.05

40

HH collar screw M5x16 TX30

0025050166

$2.05

43

HH collar screw M6x16 TX30

0025060166

$3.08

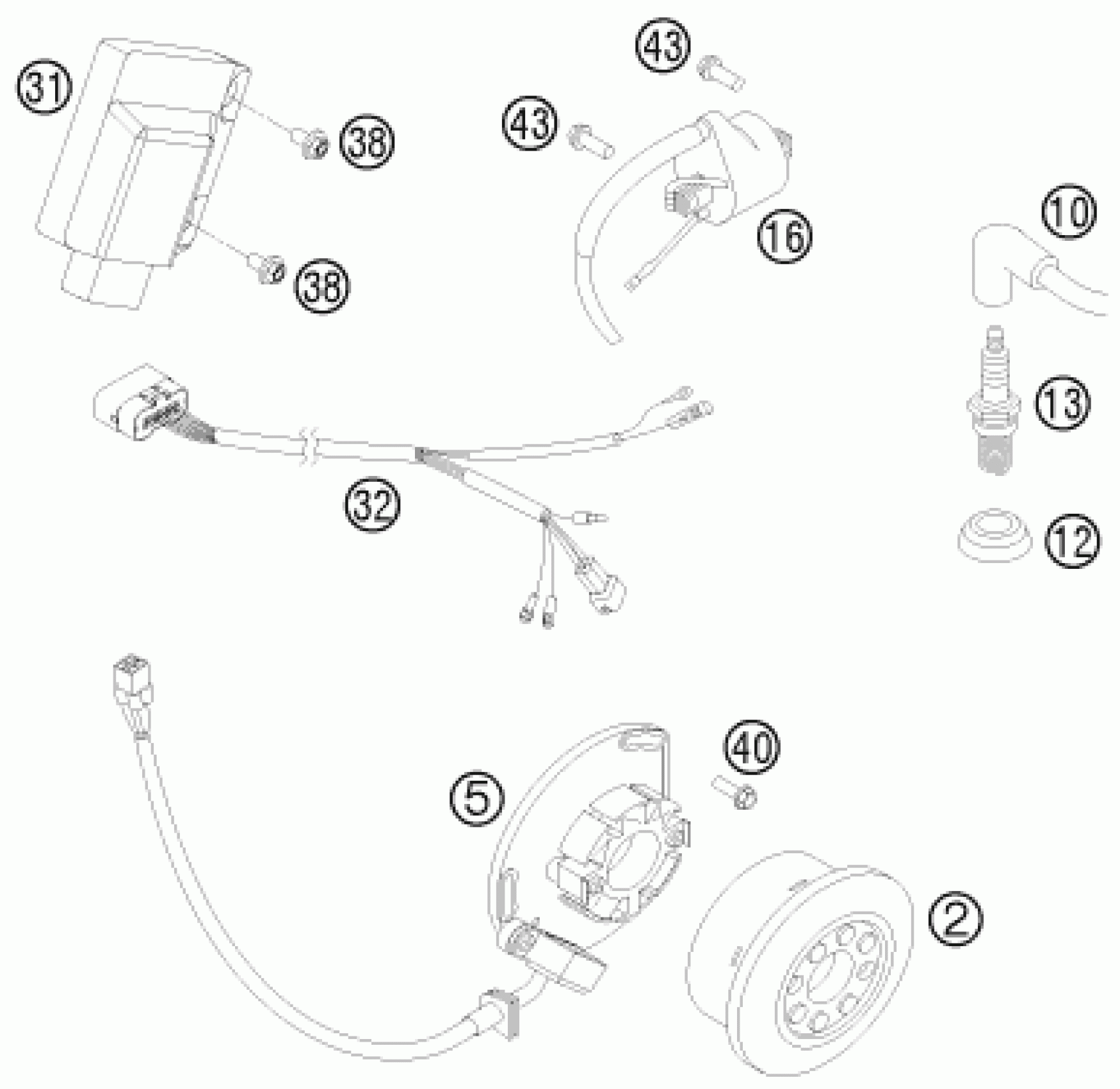

KTM 150 XC 2010 IGNITION SYSTEM Diagram

FLYWHEEL KOKUSAN 2K-2 CPL. '97

STATOR KOKUSAN 2K-2 2005

SPARK PLUG CAP NGK REINFORC.04

SEALING CUP FOR SPARK PLUG

SPARK PLUG

IGNITIONCOIL ''IG5128''

ELECTRONICBOX 150XC 10

WIRING HARNESS F.CDI 2-ST.SX07

COLLAR SCREW M6X12 TX

HH collar screw M5x16 TX30

HH collar screw M6x16 TX30
