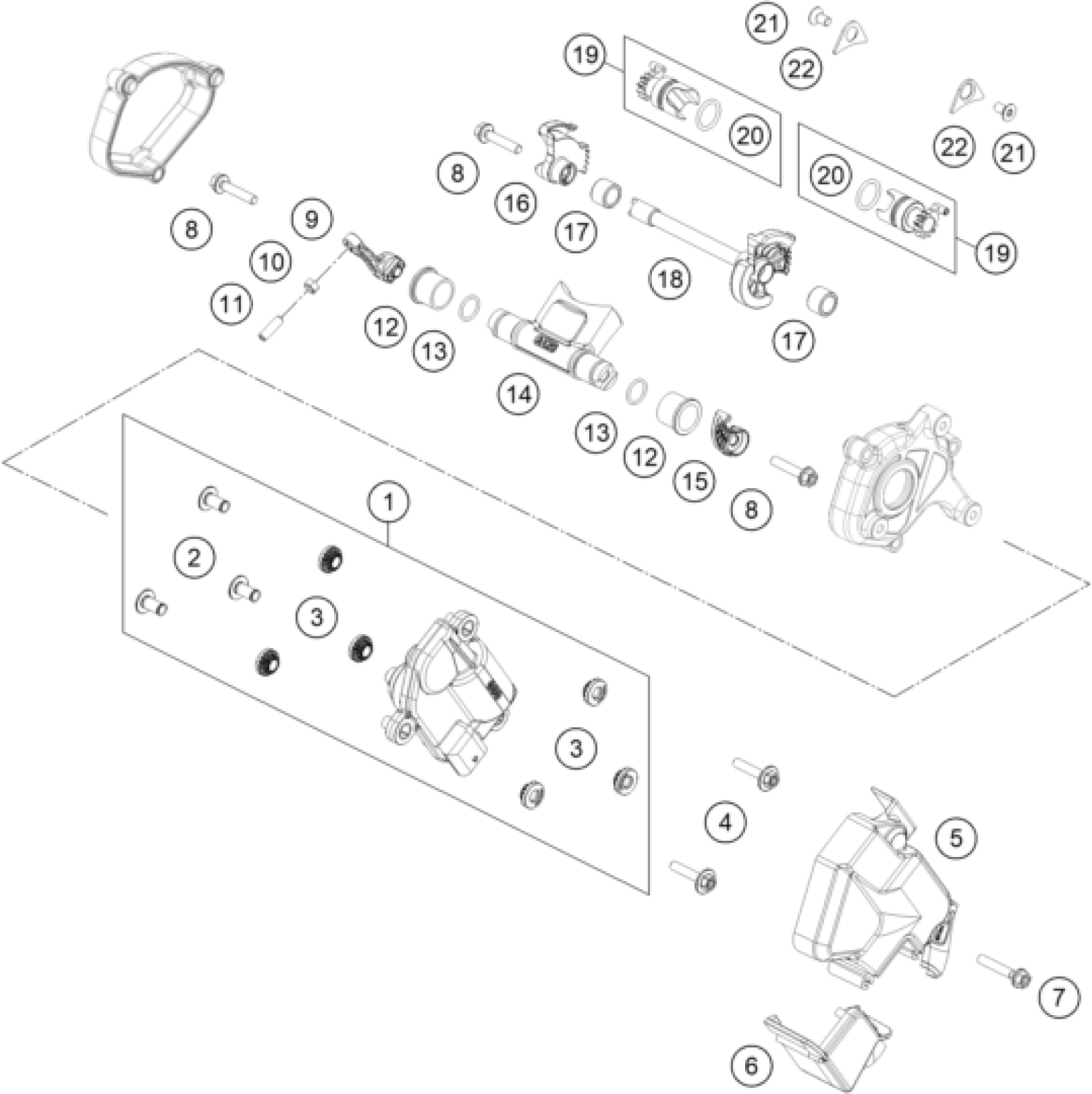

KTM 150 SX 2025 EXHAUST CONTROL Diagram

#

Description
Price

1

Exhaust control actuator cpl.

A45041072033

$209.90

2

Actuator bushing

A45041072010

$5.41

3

Damper actuator

A45041072005

$4.11

4

HH collar screw, M5x25, ISA 30

0000240502500S

$1.49

5

Actuator protection cap

A42037096000

$6.44

6

Actuator protection cap

A42037096020

$7.38

7

HH COLLAR SCREW M5X30 TX30

0025050306

$2.05

8

HH collar screw M5x25 TX30

0025050256S

$1.49

9

Control lever

A42037057000

$29.35

10

Nut M5 SW7

0934050040

$1.49

11

Grub screw M5x16 with AH

0913050160

$1.49

12

exaust flap bushing

50437023100

$5.23

13

O-ring 12x1.5 FPM75

07700120151

$1.49

14

Control flap

A43037120000

$89.94

15

Control flap lever

A42037080000

$22.81

16

Slotted lever rh

A42037065000

$35.33

17

needle sleeve HK 1010 10x14x10

0618101410

$5.98

18

Idler shaft cmpl.

A42037070033

$74.32

19

Exhaust roller rh

A42037063000

$31.59

20

O-RING 14X2 FPM 75SH

0770140201

$3.08

21

hex lobe countersunc screw M5x

0019050106S

$2.05

22

Retaining bracket crankshaft b

75030085100

$1.49
