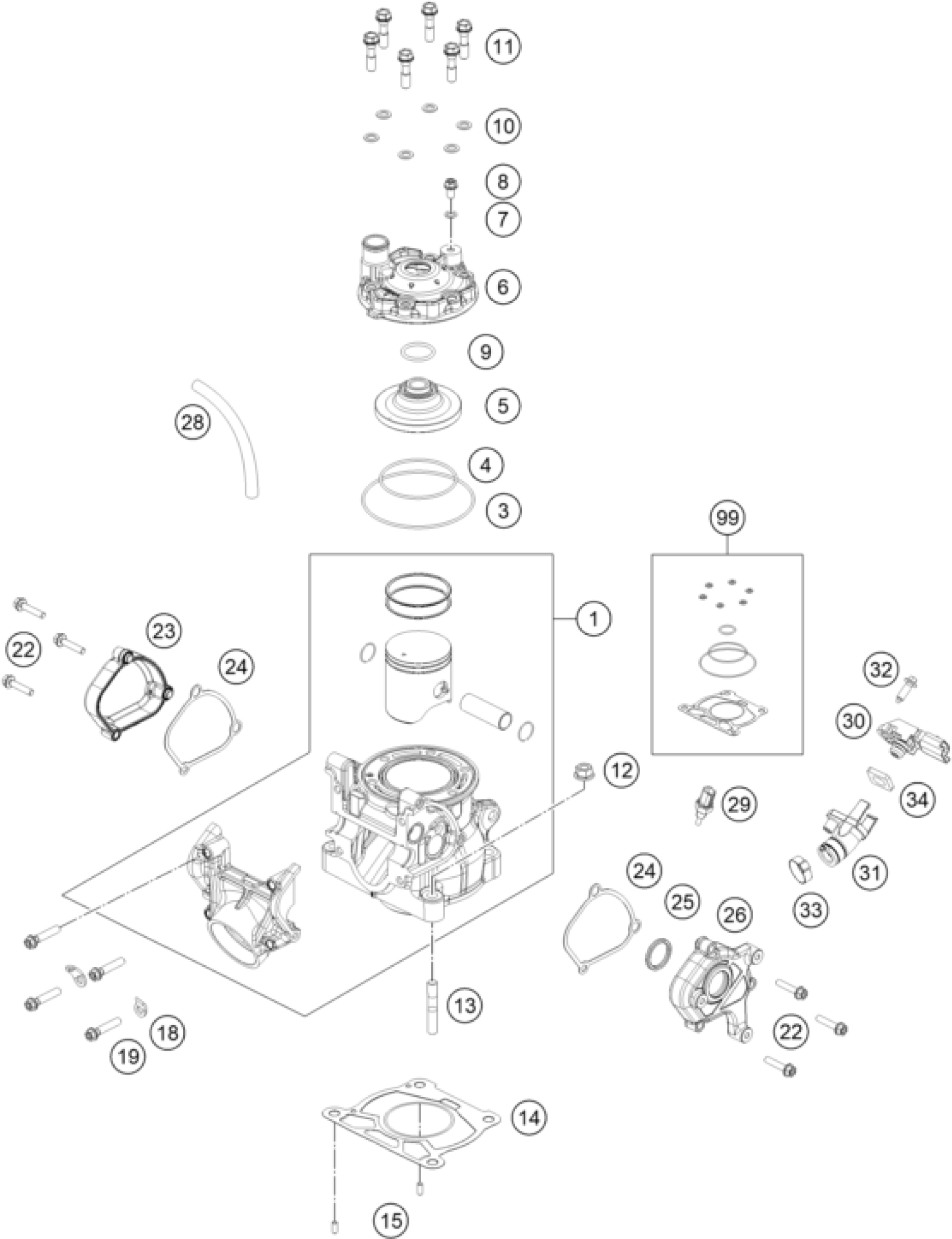

KTM 150 SX 2025 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

cylinder and piston cpl. 150 S

A43030238000

$981.74

3

O-RING 89X2 NBR 70 SH

0770890200

$3.08

4

O-RING 64X2 FPM 80SH

0770640200

$5.23

5

Combustion chamber insert

A43030160000

$54.69

6

Cylinder head

A42030006100

$29.72

7

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

8

HH collar screw M6x10 TX30

0025060106

$3.08

9

O-ring 23.00X2.5 NBR 70 SH

07702300251

$2.05

10

CU-SEAL RING DIN7603- 7,3X12X1

0603070121

$1.49

11

CYLINDER HEAD SCREW

50430079000

$3.08

12

HH COLLAR NUT M 8 WS=12

50330045000

$2.05

13

STUD DIN 835 M8X32

0835080326

$2.05

14

Cylinder base gasket

A42030035020

Unavailable

14

Cylinder base gasket

A42030035025

Unavailable

14

Cylinder base gasket

A42030035030

Unavailable

14

Cylinder base gasket

A42030035040

Unavailable

14

Cylinder base gasket

A42030035040

Unavailable

14

Cylinder base gasket

A42030035050

Unavailable

15

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

18

RETAINING PLATE

51005074000

$3.08

19

HH collar screw M6x30 TX30

0025060306

$3.08

22

HH COLLAR SCREW M5X25 ISA30

0025050256

$1.49

23

exhaust regulation cover rh

A42037007000

$12.71

24

Gasket, control lid left

A42037006000

$5.23

25

X-ring 21.89x2.62 FKM 70

0770002226200

$2.05

26

exhaust regulation cover lh

A42037005000

$22.06

28

Engine vent hose

A42030087000

Unavailable

29

water temperature sensor

79435047000

$23.74

30

crank case pressure sensor

A45041075000

$50.01

31

Pressure sensor flange

A44041087000

$12.05

32

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

33

VARIABLE ONE-EAR CLAMP 21,0MM

00050210706

$2.05

34

Pressure sensor EPDM plate

A45041075050

$5.79

99

Sealkit Cylinder MX 125

A42030097000

Unavailable
