Description

Price

1

Special screw K60X30 WS=6

0017060305

$2.05

2

ELECTRONIC BOX 150 SX 16

51639031000

$267.50

3

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

4

BATTERY BOX

79011055000

$31.22

5

WIRING HARNESS FOR CDI 2-ST.07

54839032200

$78.53

6

SPARK PLUG CAP NGK REINFORC.04

47039090000

$31.44

7

SPARK PLUG

51539093000

$17.57

8

SEALING SLEEVE

50439091000

$7.38

9

COLLAR SCREW M6X18 ISA30

0026060186

$1.49

10

IGNITIONCOIL ''IG5128''

59039006000

$66.19

11

DISTANCE UNIT

50439013000

$6.07

12

STATOR

50439004000

$225.33

13

PICKUP BRACKET

50439004010

$5.23

14

HH COLLAR SCREW M 5X16 WS=6

0014050163

$2.05

15

AH SCREW DIN0912-M 5X25

0912050253

$1.49

16

ROTOR

50439005000

$202.61

17

IGNITION COVER SX

50430002000

$34.77

18

HH collar screw M6x20 TX30

0025060206

$3.08

19

washer DIN 9021 A - 5.3

0021050003

$1.49

20

COLLAR BUSHING 6,2X9,2X15X12,5

60308006000

$3.08

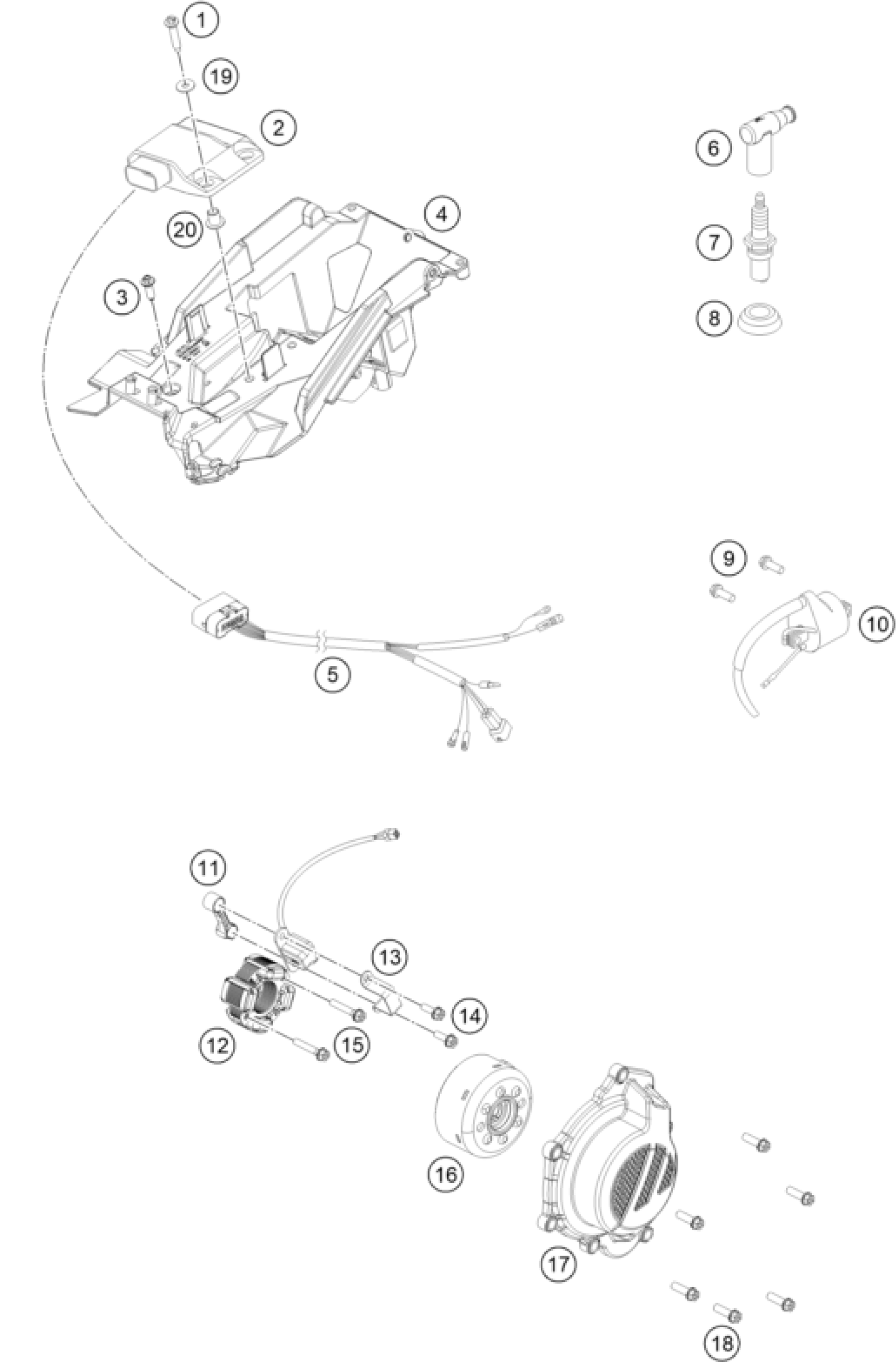

KTM 150 SX 2016 IGNITION SYSTEM Diagram

Special screw K60X30 WS=6

ELECTRONIC BOX 150 SX 16

SCREW F. PLASTIC K60X20AL SW6

BATTERY BOX

WIRING HARNESS FOR CDI 2-ST.07

SPARK PLUG CAP NGK REINFORC.04

SPARK PLUG

SEALING SLEEVE

COLLAR SCREW M6X18 ISA30

IGNITIONCOIL ''IG5128''

DISTANCE UNIT

STATOR

PICKUP BRACKET

HH COLLAR SCREW M 5X16 WS=6

AH SCREW DIN0912-M 5X25

ROTOR

IGNITION COVER SX

HH collar screw M6x20 TX30

washer DIN 9021 A - 5.3

COLLAR BUSHING 6,2X9,2X15X12,5
