Description

Price

1

FORK LEG R/S + TUBE CPL.

48601408S2

$485.91

2

FORK LEG L/S + TUBE CPL.

48601407S2

$485.91

3

HH collar screw M8x25

0025080256

$2.05

5

Rubber cap 26,4x11

48600692

$3.08

6

Adjustment screw slot M20x1 cp

48601484S

$42.35

7

HH collar screw M20x1x18 cpl.

48601533S

$21.31

8

PISTON ROD R/S CPL. M9X1

48601574S

$290.20

9

PISTON ROD L/S CPL. M12X1

48601501S

$423.36

10

SCREW SLEEVE OIL CPL.

48601462S1

$69.37

11

Screw sleeve M35,5x0,8

48601452S1

$47.86

12

Spring (13,9) 37-32 rebound cp

48600578S

$4.11

13

Spring (21) 60-30 cpl.

48601578S

$25.89

14

PISOTN SET AIR FORK D34

R14061

$94.36

15

Compression cpl.

48601485S

$224.11

16

SMALL PARTS KIT SCREW CAP

R14062

$5.79

17

SCREW CAP + TUBE CPL. R/S

48601454S1

$286.10

18

SCREW CAP + TUBE CPL. L/S

48601453S1

$354.73

19

ISA lock screw M8x1 l7 Alu

48601495

$11.40

20

Schrader valve M8x1 cmpl.

48601494S

$24.98

21

Fork outer tube 49,13x577 dt54

48600736

$462.35

22

Guide bushing set fork 48mm

R14047

$25.70

23

Repair kit fork 48mm

R14046

$66.75

99

SEALING KIT

R14060

$77.04

98

Fork Fluid Viscosity 4.0 5L

48601166S1

$149.59

97

CENTOPLEX 2 EP - 45g MP-GREASE

00062010051

$18.02

24

X-ring 26,57x3,53 FKM80

04100002

$5.23

96

SILICONE GREASE F. DUST STRI

T511

$34.59

25

O-ring 6x1,5 NBR70

48600044

$1.49

26

Washer check valve 6x31x0,4

48601459

$18.41

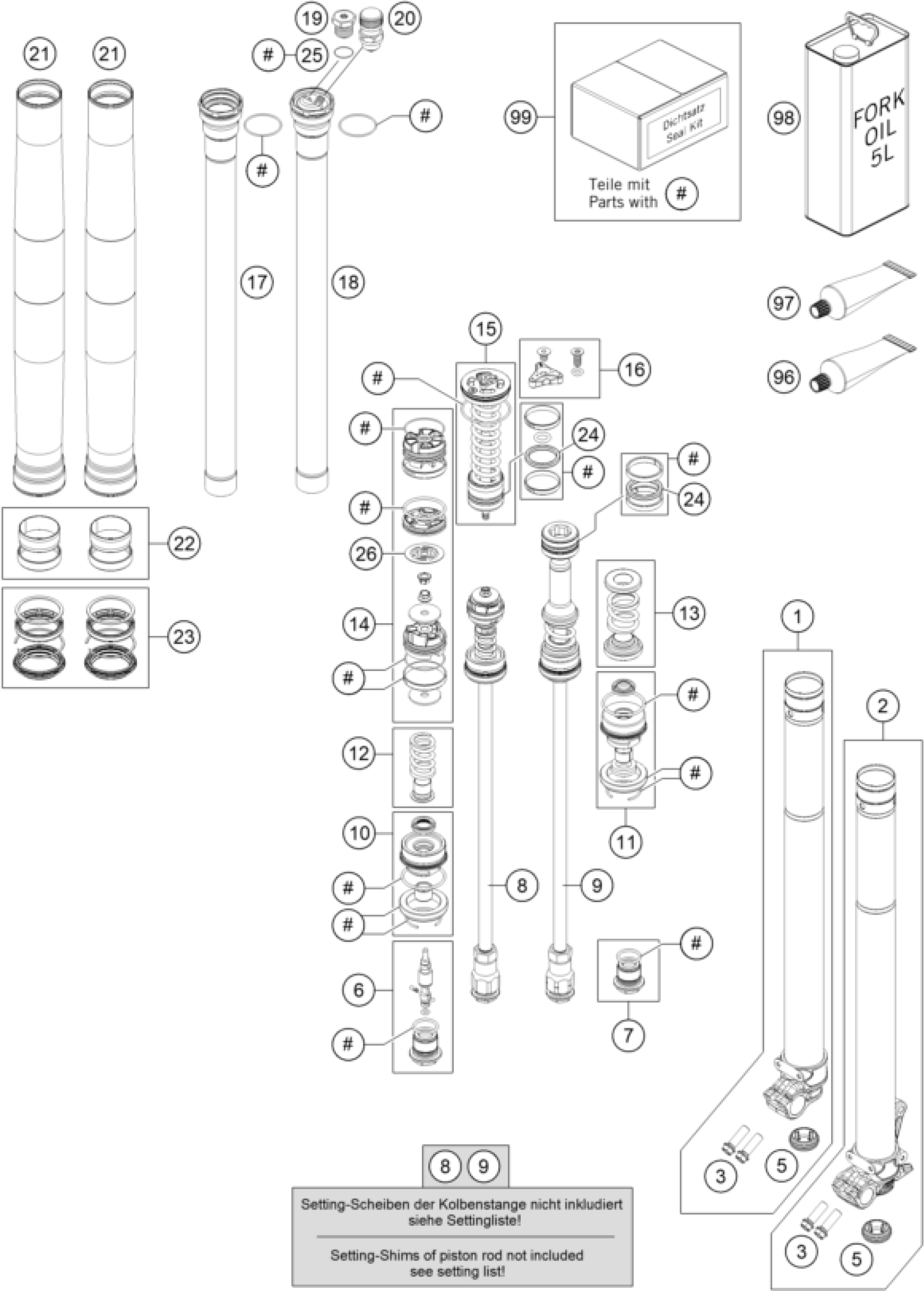

KTM 150 SX 2016 FRONT FORK DISASSEMBLED Diagram
