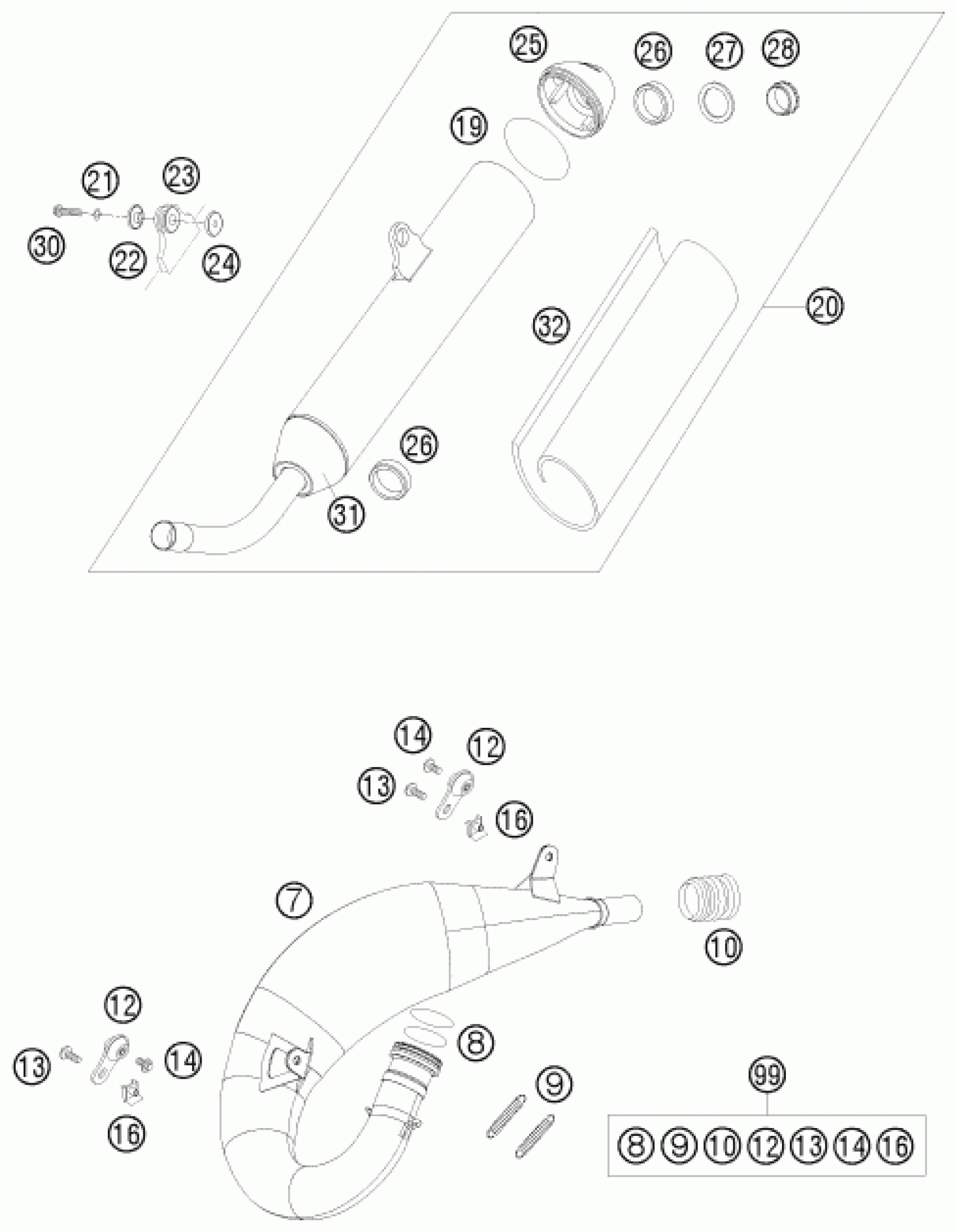

KTM 150 SX 2009 EXHAUST SYSTEM Diagram

#

Description
Price

7

EXHAUST PIPE CPL. 2007

51505007000

$378.83

8

O-RING 44,00X3,00 VITON

0770440030

$4.11

9

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

$4.57

10

RUBBER SLEEVE D=21MM/23MM '93

54605057000

$20.66

12

Silent block for exhaust pipe

50305012000

$19.91

13

HH collar screw M6x15 TX30

0024060156

$3.08

14

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

16

clip nut M6

54603048100

$4.11

20

EXHAUST SILENCER 125 SX 07

50305079400

$238.30

21

spring washer DIN 137 B - 6

0137060003

$2.05

22

BUSHING 7.5x12x28x7.6 07

77305069000

$6.07

24

BUSHING SIL.-SMR REAR 2004

59405169000

$6.18

23

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

25

SILENCER ENDCAP 2-STROKE 2004

54805079052

$38.16

26

SILCENCER RUBBER 2-STROKE 2005

54805079150

$14.95

27

SILENCER DISC 2004

54805083060

$4.11

28

SILENCER SCREW 2-STROKE 2004

54805079058

$7.39

30

HH collar screw M6x35 TX30

0025060356

$3.08

31

SILENCER CONNECTING-CAP 2004

54805079060

$20.88

32

STUFFING YARN 07

50305079255

$71.16

19

0-RING 55,00X2,00 NBR70

0770055020

$2.05

99

EXHAUST HARDWARE KIT 05-15

00050000810

Unavailable
