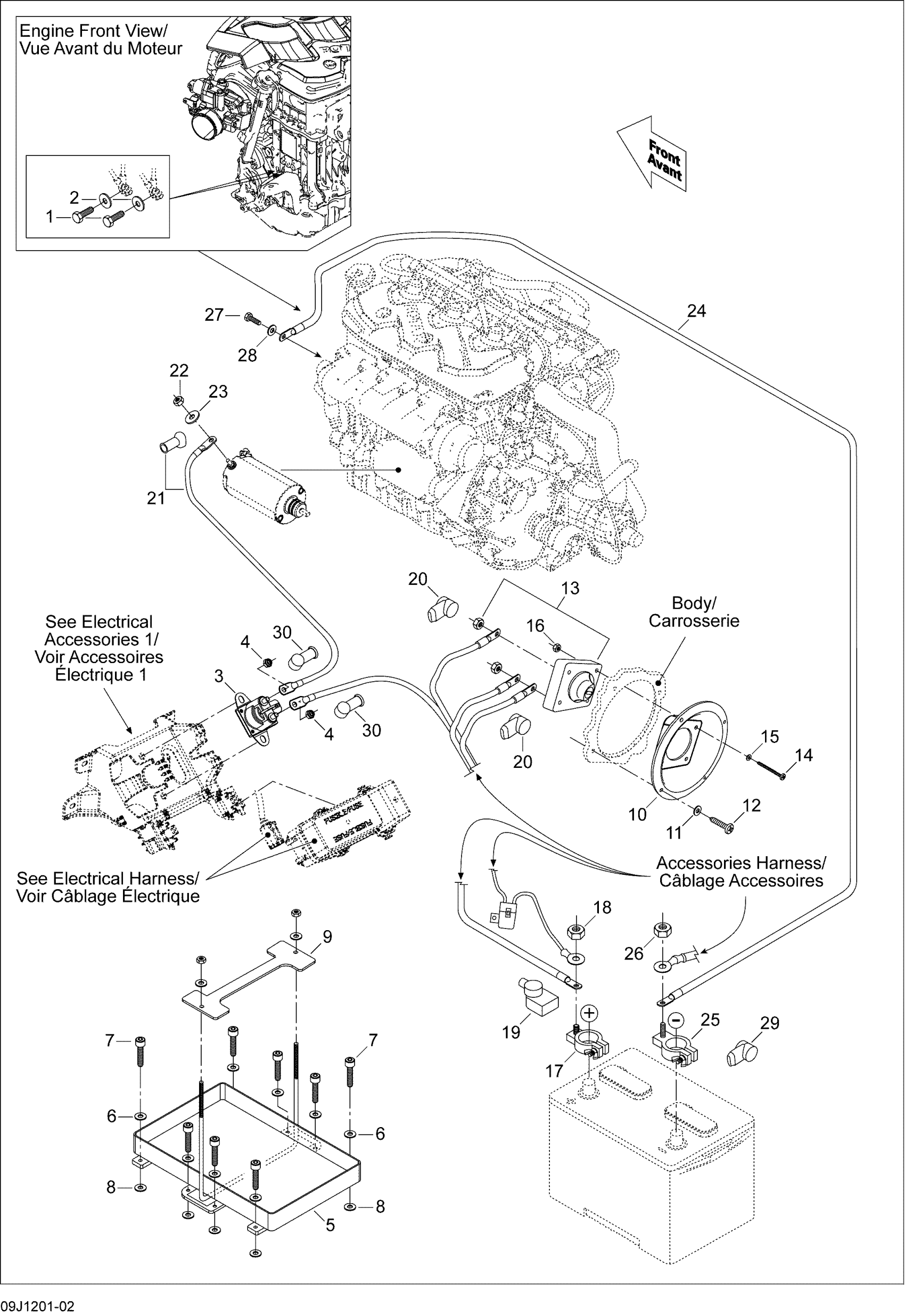

Sea-doo 150 Speedster 260, 2012 10- Electrical System Diagram
#
Description
Price
1
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
2
Stainless Flat Washer M6
234061600
$0.33
3
Starter Relay
278003012
$42.49
4
Hex. Elastic Stop Nut M6
232561600
$1.15
5
BATTERY SUPPORT - Call your local BRP dealership
204471008
Unavailable
6
FLAT WASHER - Call your local BRP dealership
204100069
Unavailable
7
Socket Head Screw M6 X 25
205062560
$1.69
8
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
9
TOP BATTERY SUPPORT - Call your local BRP dealership
204471290
Unavailable
10
SWITCH SUPPORT - Call your local BRP dealership
204471341
Unavailable
11
Flat Washer 4 mm, Stainless
234041600
$1.15
12
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
13
BATTERY SWITCH - Call your local BRP dealership
204471339
Unavailable
14
Phillips Screw M5 X 25
208652560
$3.39
15
Flat Washer M5, Stainless
234051600
$0.77
16
Hex. Elastic Nut M5 | X
232551600
$1.15
17
POSITIVE BATTERY POLE - Call your local BRP dealership
204470349
Unavailable
18
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
19
RED BOOT - Call your local BRP dealership
204470269
Unavailable
20
RED BOOT - Call your local BRP dealership
204471376
Unavailable
21
RED CABLE - Call your local BRP dealership
204470798
Unavailable
22
Hex. Elastic Stop Nut M6
232561600
$1.15
23
Stainless Flat Washer M6
234061600
$0.33
24
RH GROUND CABLE - Call your local BRP dealership
204470199
Unavailable
25
NEGATIVE BATTERY POLE - Call your local BRP dealership
204470348
Unavailable
26
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
27
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
28
Flat Washer M6, Stainless
234062600
$0.77
29
BOOT-BLACK - Call your local BRP dealership
278002575
Unavailable
30
RED BOOT - Call your local BRP dealership
204471377
Unavailable
