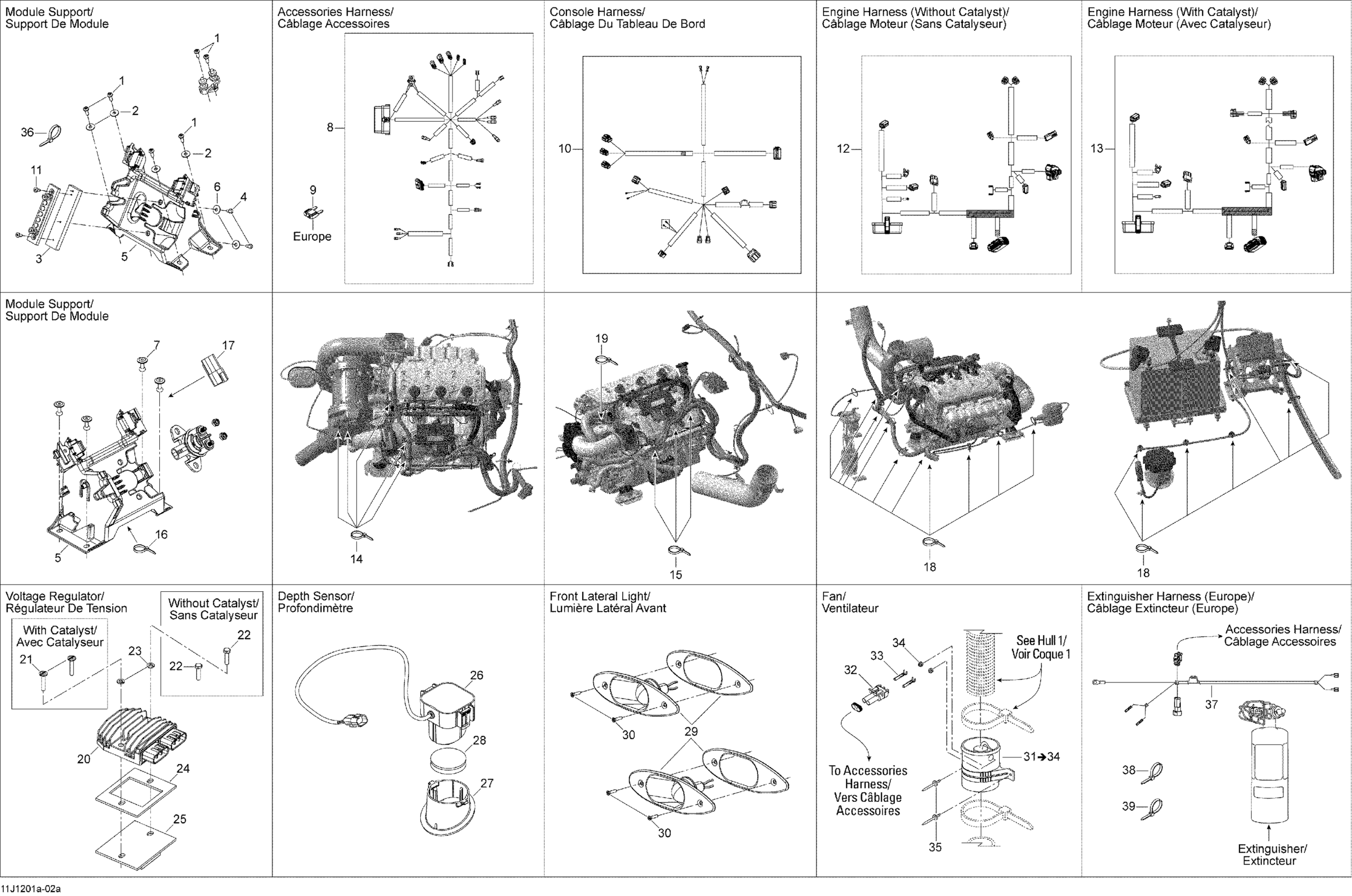

Sea-doo 150 Speedster 260, 2012 Electrical Accessories 1 Diagram

#

Description
Price

1

SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership

204100073

Unavailable

2

Flat Washer 5 mm, Stainless

234052600

$0.64

3

Not Available As Spare Part - Friction Washer

Unavailable

4

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

5

MODULE SUPPORT - Call your local BRP dealership

278002699

Unavailable

6

Flat Washer 5 mm, Stainless

234052600

$0.64

7

Pop Rivet 3/16"

293150123

$3.43

8

Accessories Harness

278002661

Unavailable

9

Little Fuse, 7.5 Amperes

710000743

$7.78

10

CONSOLE HARNESS - Call your local BRP dealership

278002827

Unavailable

11

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

12

Engine Harness | Without Catalyst

278002662

Unavailable

13

Not Available As Spare Parts

XXX

Unavailable

14

Not Available As Spare Parts

XXX

Unavailable

15

Tie-Rap 206 mm

293750027

$2.61

16

Tie Wrap 142 mm

293750002

$0.88

17

Diagnostic Connector

278002704

$15.57

18

Tie-Rap 180 mm

414115200

$0.09

19

Tie Wrap 142 mm

293750002

$0.88

20

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

21

Not Available As Spare Parts

XXX

Unavailable

22

HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst

204100226

Unavailable

23

Lock Washer 1/4”

211200025

$1.04

24

SEAL - Call your local BRP dealership

204471293

Unavailable

25

RECTIFIER HEAT SINK - Call your local BRP dealership

204471296

Unavailable

26

Depth Sensor

278002954

$373.99

27

Depth Sensor Base

278001994

$21.42

28

Gel Pad

293550042

$16.87

29

LATERAL LIGHT KIT - Call your local BRP dealership

204470908

Unavailable

30

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

31

Fan Ass'y | Includes 44 to 47

204470108

$114.37

32

Male Connector, 2 Circuits

278000220

$11.02

33

Female Terminal

278000223

$2.55

34

Wire Seal

278000218

$3.48

35

Pop Rivet 3/16"

293150123

$3.43

36

Tie-Rap 206 mm

293750027

$2.61

37

FIRE EXTINGUISHER HARNESS - Call your local BRP dealership | CE

278002881

Unavailable

38

Tie-Rap 180 mm

414115200

$0.09

39

Tie-Rap 206 mm

293750027

$2.61
