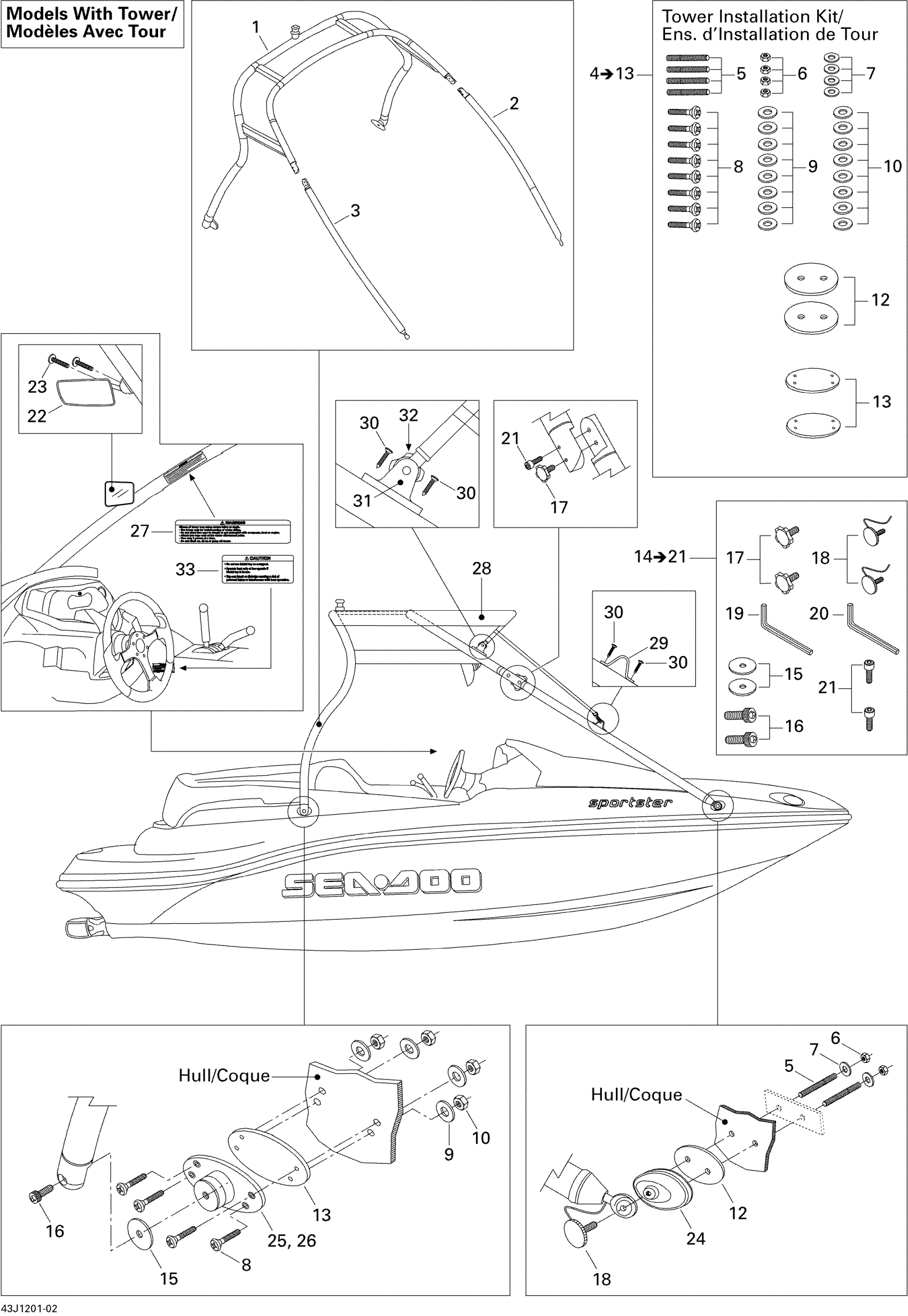

Sea-doo 150 Speedster 260, 2012 09- Tower And Bimini Top Diagram
#
Description
Price
1
Upper Tower
204950251
Unavailable
2
Lower Tower, Port
204950249
Unavailable
3
Lower Tower, Starboard
204950250
Unavailable
4
Tower Hardware Kit | Includes 4 to 13
204950266
Unavailable
5
Threaded Stud
204100152
Unavailable
6
LOCK NUT 1/2? - Call your local BRP dealership
204100131
Unavailable
7
FENDER WASHER - Call your local BRP dealership
204100132
Unavailable
8
HEX. SCREW 1/4-20 X 2-1/2 - Call your local BRP dealership
204100014
Unavailable
9
WASHER-FENDER/S.S. - Call your local BRP dealership
204100139
Unavailable
10
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
12
Front Gasket
204130272
Unavailable
13
REAR GASKET - Call your local BRP dealership
204130273
Unavailable
14
HARDWARE KIT - Call your local BRP dealership | Includes 14 to 21
204950267
Unavailable
15
Not Available As Spare Part - Friction Washer
Unavailable
16
Socket Screw 1/2-13 X 1-1/2"
204100190
Unavailable
17
Fluted Knob
204071433
Unavailable
18
FLUTED KNOB - Call your local BRP dealership
204950176
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
HEX. SCREW 3/8 X 1-1/2 - Call your local BRP dealership
204100135
Unavailable
22
SKI MIRROR - Call your local BRP dealership This part replaces 204071420.
295100386
Unavailable
23
PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership
204100129
Unavailable
24
FRONT TOWER SUPPORT, ANODIZED - Call your local BRP dealership
204950143
Unavailable
25
Tower Mount Support, Starboard
204950178
Unavailable
26
Tower Mount Support, Port
204950226
Unavailable
27
WARNING LABEL, TOWER - Call your local BRP dealership | With Tower
204902068
Unavailable
28
BIMINI TOP - Call your local BRP dealership
204950213
Unavailable
29
STRAP EYE, STAINLESS - Call your local BRP dealership
269800358
Unavailable
30
SCREW 8-18 X 1 - Call your local BRP dealership
269800422
Unavailable
31
Bimini Top Mount Support
204072822
$12.49
32
BIMINI TOP KNOB - Call your local BRP dealership
204072823
Unavailable
33
CAUTION LABEL, BIMINI TOP - Call your local BRP dealership
204901331
Unavailable
