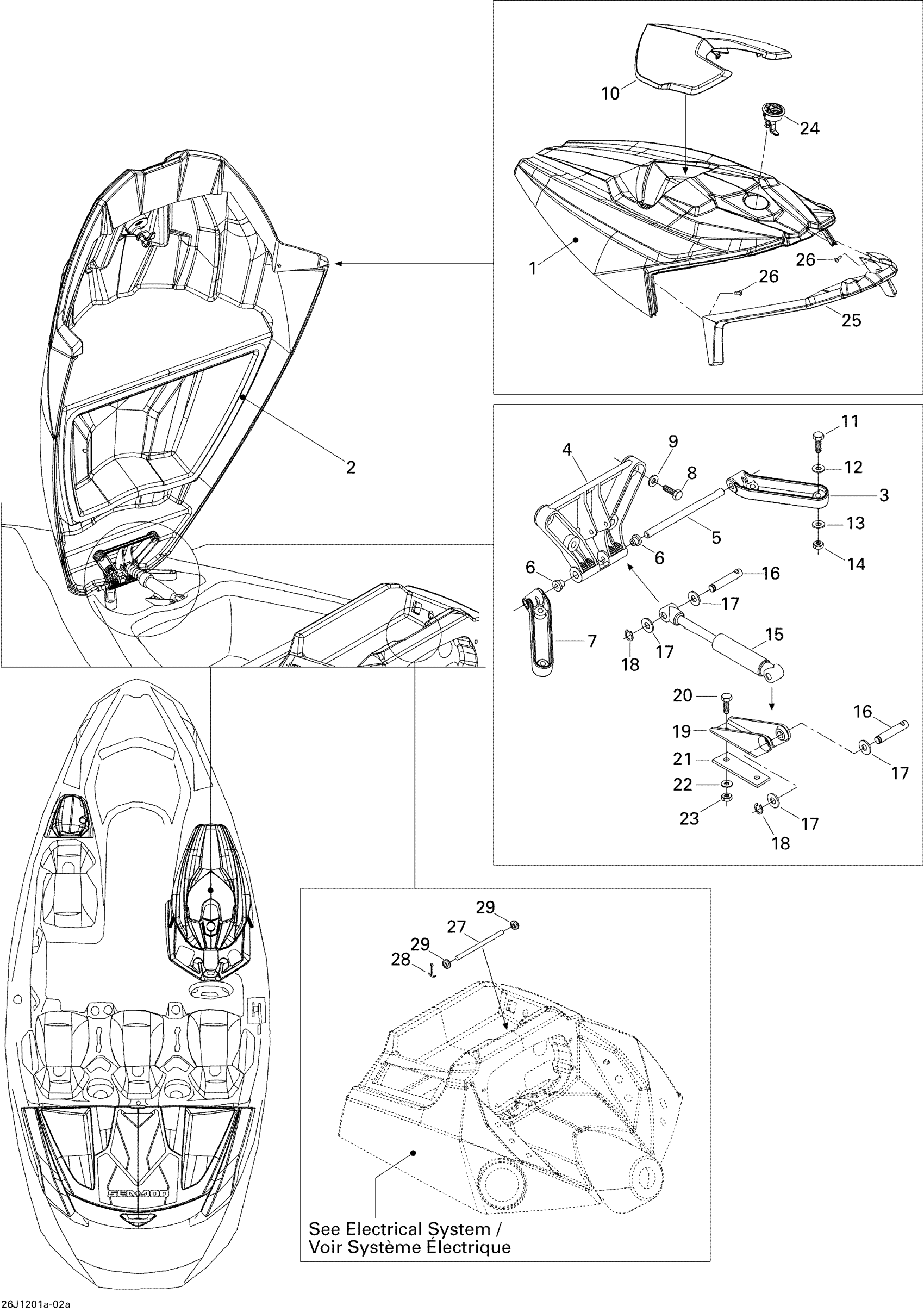

Sea-doo 150 Speedster 260, 2012 Storage Compartment, Front 1 Diagram

#

Description
Price

1

COVER-STORAGE ASSY. - Call your local BRP dealership | Orange Model

269501879

Unavailable

1

COVER-STORAGE ASSY. - Call your local BRP dealership | Green Model

269501916

Unavailable

2

Seal Tray 1000Mm Long

219704368

$13.99

3

RH HINGE - Call your local BRP dealership

269700022111

Unavailable

4

COVER HINGE - Call your local BRP dealership

269700038

Unavailable

5

AXLE - Call your local BRP dealership

269700024

Unavailable

6

CUSHION - Call your local BRP dealership

293350016

Unavailable

7

LH HINGE - Call your local BRP dealership

269700023111

Unavailable

8

Hex. Screw M6 X 25

207162560

$1.47

9

Stainless Flat Washer M6

234061600

$0.33

10

Black Upper Front Deflector This part replaces 269501663.

269502209

$154.99

11

Hex. Screw M6 X 35

207063560

$2.22

12

Stainless Flat Washer M6

234061600

$0.33

13

Flat Washer M6, Stainless

234062600

$0.77

14

Hex. Elastic Stop Nut M6

232561600

$1.15

15

Shock-Gas This part replaces 269501864.

269501993

$56.99

16

SHORT PIN - Call your local BRP dealership

211400006

Unavailable

17

Stainless, Flat Washer 8 mm

234081600

$0.55

18

CIRCLIP - Call your local BRP dealership

293370008

Unavailable

19

SHOCK SUPPORT - Call your local BRP dealership

291000855

Unavailable

20

Hex. Screw M6 X 25

207162560

$1.47

21

REINFORCEMENT PLATE - Call your local BRP dealership

291000079

Unavailable

22

Flat Washer M6, Stainless

234062600

$0.77

23

Hex. Elastic Stop Nut M6

232561600

$1.15

24

COMPRESSION LATCH 2 - Call your local BRP dealership

262000178

Unavailable

25

CONSOLE BROW - Call your local BRP dealership

291003529

Unavailable

26

SCREW-TAPP.TRUSS HD.PH.#6 X 3/8 SS - Call your local BRP dealership

204100268

Unavailable
