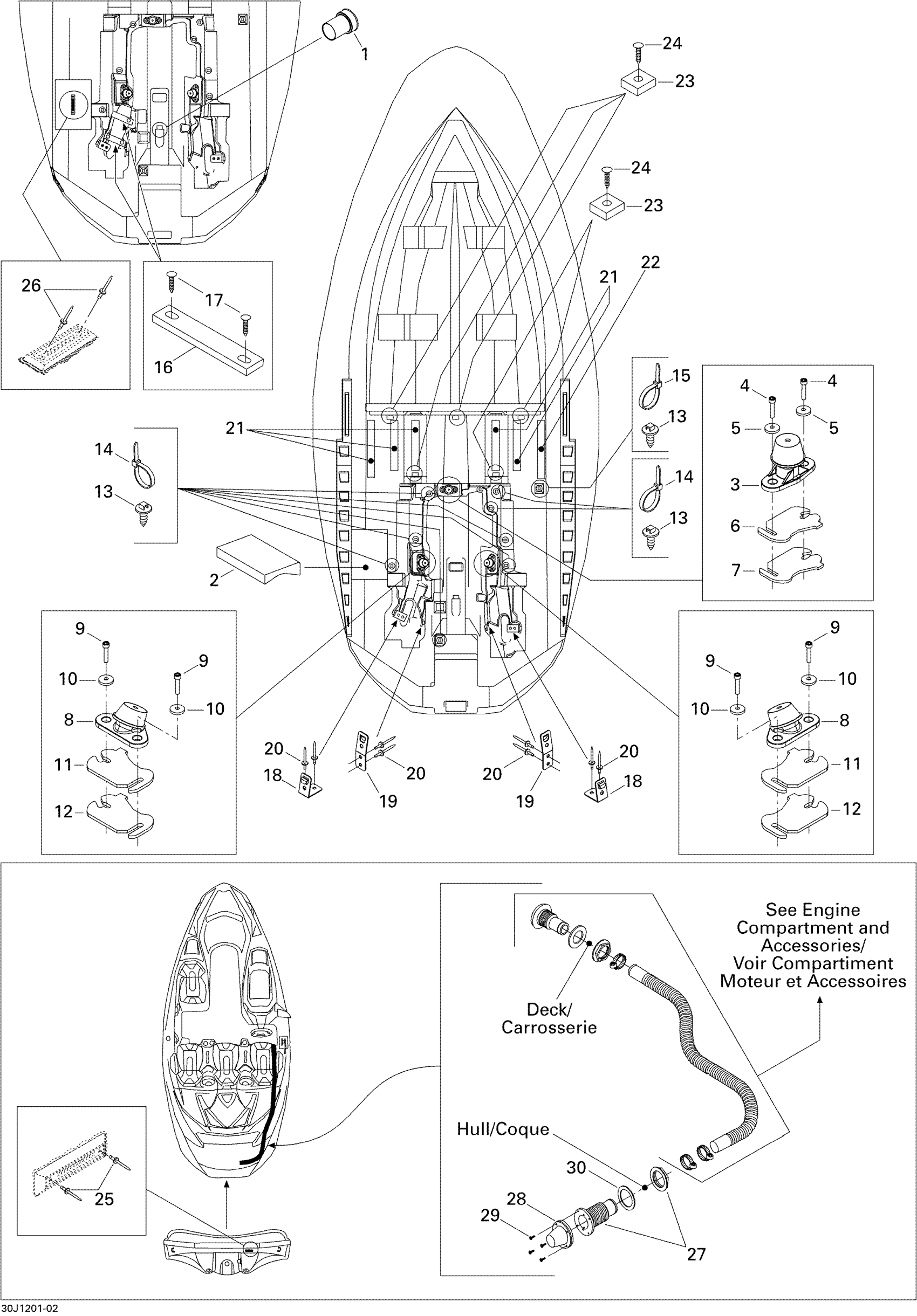

Sea-doo 150 Speedster 260, 2012 Lower Hull Diagram

#

Description
Price

1

HULL INSERT, 41 MM - Call your local BRP dealership

292000975

Unavailable

2

BATTERY FOAM - Call your local BRP dealership

204061397

Unavailable

3

Engine Support Ass'y

270001096

$97.99

4

Socket Head Screw M8 X 45

205084560

$3.59

5

Cone Washer

250200018

$5.61

6

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

7

Shim 1.3 mm

270000762

$12.99

8

Engine Support Ass'y

270001081

$109.99

9

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

10

Cone Washer

250200018

$5.61

11

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

12

Shim 1.3 mm

270000762

$12.99

13

Mount Dart

293730040

$1.04

14

Tie-Rap 180 mm

414115200

$0.11

15

Tie Wrap 368 mm

293750008

$1.04

16

MUFFLER RUBBER PAD - Call your local BRP dealership

204060702

Unavailable

17

Black, Dart

293730006

$0.99

18

Strap Clip 90°

204060017

Unavailable

19

Strap Clip

293850030

$11.12

20

Pop Rivet 3/16"

293150088

$0.99

21

NEOPRENE, METER - Call your local BRP dealership

202000024

Unavailable

22

NEOPRENE, METER - Call your local BRP dealership

202000024

Unavailable

23

RUBBER PAD - Call your local BRP dealership

204060684

Unavailable

24

Black, Dart

293730006

$0.99

25

Pop Rivet 1/8''

293150033

Unavailable

26

Avdel Rivet 3/16"

293150037

$0.56

27

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

28

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

29

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

30

GASKET - Call your local BRP dealership

292800106

Unavailable
