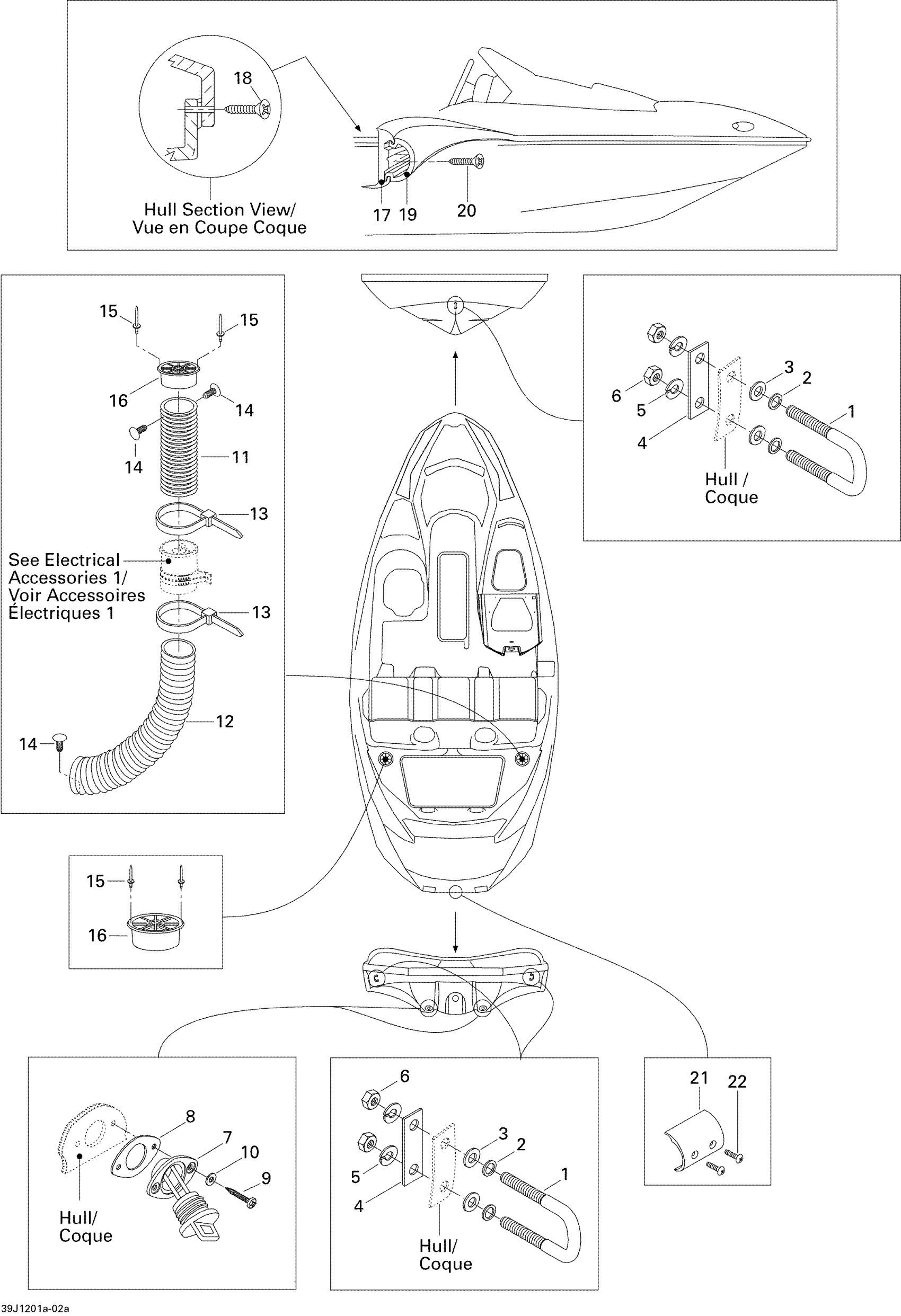

Sea-doo 150 Speedster 260, 2012 09- Hull 1 Diagram
#
Description
Price
1
U-Clamp
292000933
$59.49
2
Flat Washer M8.5 x 18
293050001
$3.07
3
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
4
RETAINING PLATE - Call your local BRP dealership
291000307
Unavailable
5
Lock Washer 8 mm, Stainless
234181601
$0.55
6
Hex. Nut M8
232081600
$1.47
7
Drain Plug
292000187
$14.49
8
GASKET - Call your local BRP dealership
293250030
Unavailable
9
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
10
Flat Washer 4 mm, Stainless
234041600
$1.15
11
Was 204050122 Vent Hose 4"
219704358
$25.99
12
Was 204050122 Vent Hose 4"
219704358
$25.99
13
Tie Rap, 533 mm
293750047
$2.09
14
Black, Dart
293730006
$0.99
15
RIVET_POP 1/8 X ,750 - Call your local BRP dealership
293150036
Unavailable
16
VENT - 4 OPEN / WHT. - Call your local BRP dealership This part replaces 204050533.
204050803
Unavailable
17
BUMPER, BLACK - Call your local BRP dealership
262000198
Unavailable
18
PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership
204100049
Unavailable
19
RUBRAIL INSERT 50FT - Call your local BRP dealership
204061394
Unavailable
20
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
21
BUMPER COVER, BLACK - Call your local BRP dealership
204050780
Unavailable
22
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
