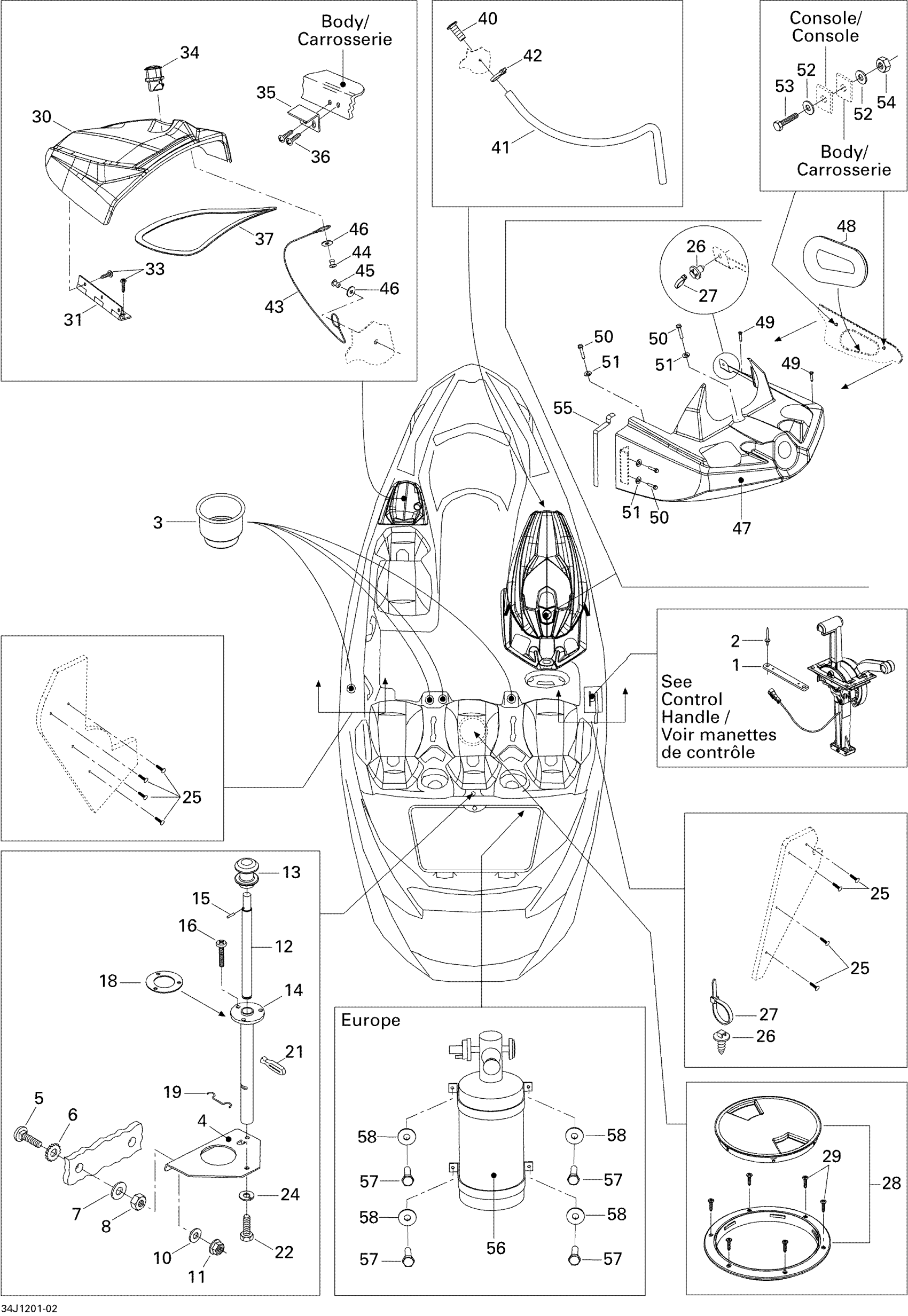

Sea-doo 150 Speedster 260, 2012 09- Body And Accessories Diagram
#
1
SHIFTER INSERT - Call your local BRP dealership
293450061
Unavailable
2
Pop Rivet 3/16"
293150013
$1.37
3
CUP HOLDER - Call your local BRP dealership | STD
291000619
Unavailable
4
FIXATION PLATE - Call your local BRP dealership
204071140
Unavailable
5
Elevator Bolt
204000130
Unavailable
6
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
7
Flat Washer M6, Stainless
234062600
$0.77
8
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
10
Flat Washer M6, Stainless
234062600
$0.77
11
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
12
SKI SHAFT - Call your local BRP dealership
204071624
Unavailable
13
SKI SHAFT CAP - Call your local BRP dealership
293000004
Unavailable
14
FIXED TUBE - Call your local BRP dealership
204071495
Unavailable
15
ROLLED PIN M3 X 30 - Call your local BRP dealership
211400004
Unavailable
16
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
18
RUBBER WASHER - Call your local BRP dealership
293830045
Unavailable
19
SPRING - Call your local BRP dealership
291001205
Unavailable
21
Windshield Latch
570023800
$4.49
22
Hex. Screw M8 X 18
207181860
$1.48
24
Lock Washer 8 mm, Stainless
234181601
$0.55
25
Black Dart
293730014
$0.99
26
Mount Dart
293730040
$1.04
27
Tie-Rap 180 mm
414115200
$0.11
28
DECK PLATE 8 - Call your local BRP dealership
204073192
Unavailable
29
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership
209941960
Unavailable
30
STORAGE DOOR, PORT SIDE, ORANGE - Call your local BRP dealership | Orange Model
291003478
Unavailable
30
STORAGE DOOR, PORT SIDE, GREEN - Call your local BRP dealership | Green Model
291003473
Unavailable
31
HINGE - Call your local BRP dealership
291002974
Unavailable
33
SCREW 8 X 3/4? - Call your local BRP dealership
204100054
Unavailable
34
LATCH - Call your local BRP dealership
204073210
Unavailable
35
KEEPER - Call your local BRP dealership
204070060
Unavailable
36
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
37
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
40
DRAIN FITTING - Call your local BRP dealership
204071783
Unavailable
41
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
42
Tie Wrap 94 mm | 4X4
293750001
$1.03
43
RETAINER CABLE - Call your local BRP dealership
204000117
Unavailable
44
POP RIVET 3/16 - Call your local BRP dealership
204130050
Unavailable
45
Pop Rivet 3/16"
293150039
$1.49
46
Flat Washer 5 mm, Stainless
234052600
$0.77
47
CONSOLE ASS'Y - Call your local BRP dealership
291003472
Unavailable
48
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
49
PHILLIPS SCREW 1 - Call your local BRP dealership
204100154
Unavailable
50
Self Drill Screw L( Hex Washer Head ) - Call your local BRP dealership
204050138
Unavailable
51
Lock Washer 1/4”
211200025
$1.29
52
Flat Washer M6, Stainless
234062600
$0.77
53
Hex. Screw M6 X 35
207163560
$1.49
54
Hex. Elastic Stop Nut M6
232561600
$1.15
55
TRIM, WHITE - Call your local BRP dealership
204050042
Unavailable
56
FIRE EXTINGUISHER SYSTEM - Call your local BRP dealership | Europe
291003320
Unavailable
57
Hex. Screw M4 X 16 | Europe
207141660
$1.47
58
Flat Washer 4 mm, Stainless
234042600
$1.15
