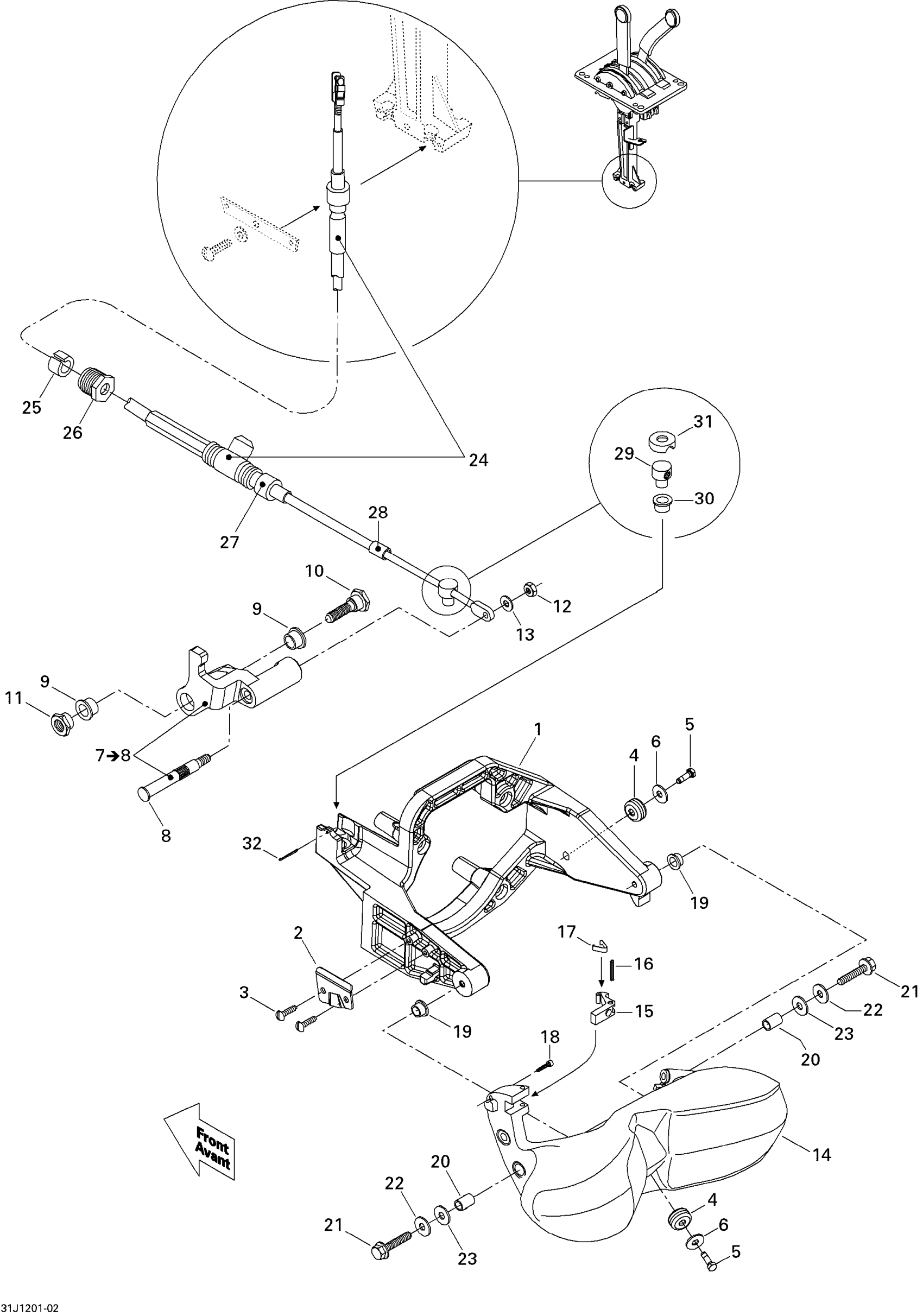

Sea-doo 150 Speedster 260, 2012 05- Reverse Diagram
#
Description
Price
1
Reverse Gate Support
204170214
$189.99
2
STOP PAWL - Call your local BRP dealership
271000485
Unavailable
3
SCREW-MACH.PAN HD.SLTD.10-24 X 1/2-SS - Call your local BRP dealership
204100270
Unavailable
4
Anode Zinc
271001813
$18.99
5
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
6
Stainless Flat Washer M6
234061600
$0.33
7
NEEDS DESCRIPTION | Includes 7 to 8 This part replaces 204170230.
0460979
$224.99
8
PIN - Call your local BRP dealership
204130037
Unavailable
9
BUSHING - Call your local BRP dealership
204130036
Unavailable
10
SHOULDER SCREW - Call your local BRP dealership
204100124
Unavailable
11
SHOULDER NUT - Call your local BRP dealership
204100123
Unavailable
12
NEEDS DESCRIPTION This part replaces 204100034.
0460000
$0.60
13
Flat Washer 5 mm, Stainless
234052600
$0.77
14
Reverse Gate
204170213
$289.99
15
HOOK - Call your local BRP dealership
204170220
Unavailable
16
Pin
211400009
$1.68
17
Spring
271000431
$15.49
18
Socket Head Screw
204100127
$3.70
19
Bushing
204130237
$12.11
20
Sleeve
204170177
$33.99
21
Hex. Flange Screw 18 X 1.56
204100163
$9.09
22
Flat Washer 8 mm, Stainless
234082600
$2.43
23
WASHER, NYLON - Call your local BRP dealership
204100128
Unavailable
24
Reverse Cable
268000108
$217.49
25
Slip Grommet - Call your local BRP dealership
204130420
Unavailable
26
Steering Cable Lock This part replaces 277000784.
277001729
$13.22
27
End Piece
277001583
$14.49
28
Wiper Rod
277001582
$11.11
29
THREADED END PIECE - Call your local BRP dealership
204130038
Unavailable
30
Bushing
204130237
$12.11
31
Reverse Cable Bushing - Call your local BRP dealership This part replaces 204170212.
296000396
Unavailable
32
Cotter Pin
204130040
$2.85
