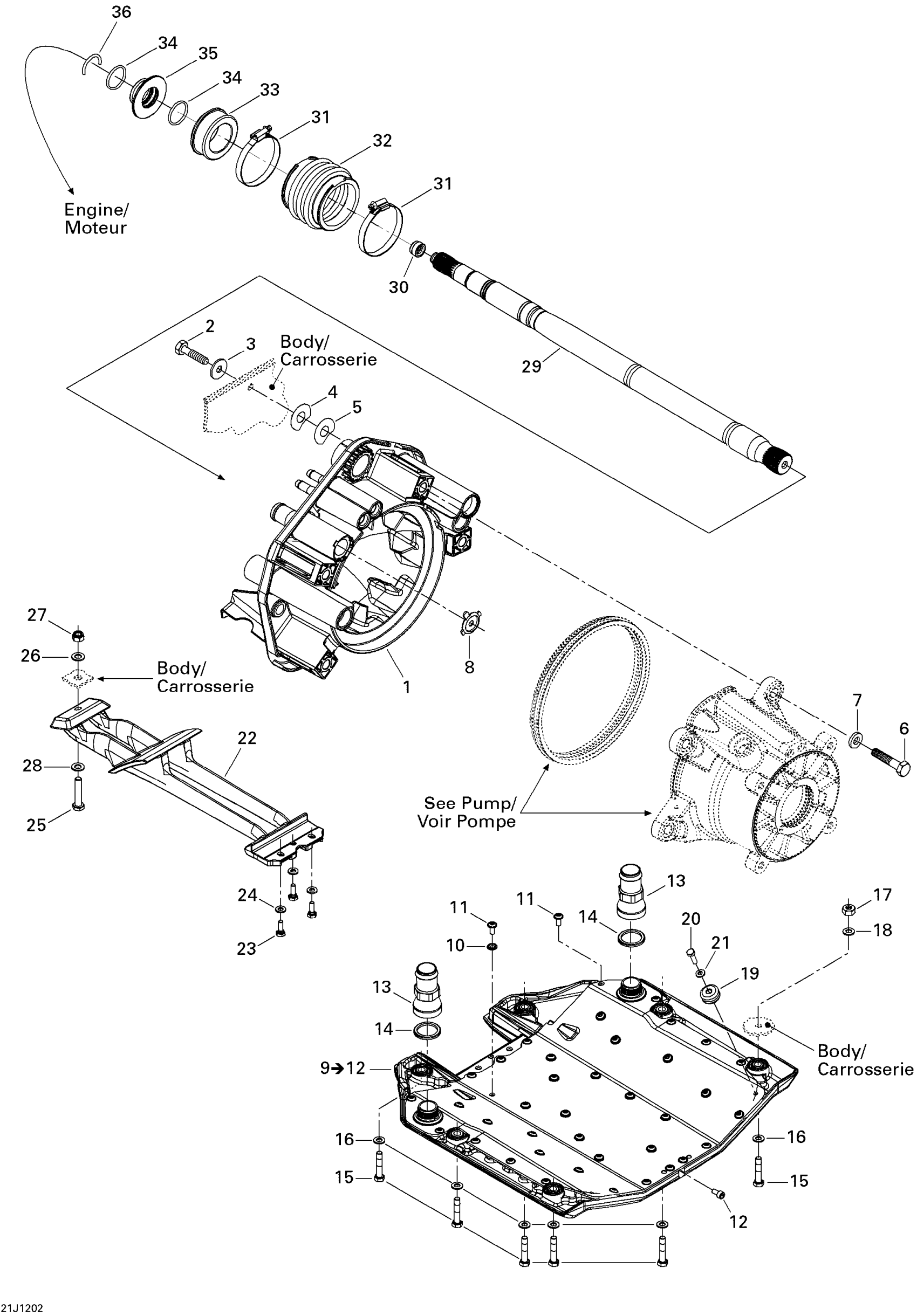

Sea-doo 150 Speedster 260, 2012 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120384

Unavailable

2

HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership

250000189

Unavailable

3

Flat Washer 10 mm, Stainless

234002600

$2.22

4

Shim 0.3 mm

272000053

$11.49

5

NEEDS DESCRIPTION This part replaces 204120067.

0460011

$10.49

6

HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

250000188

Unavailable

7

Flat Washer

211200051

$1.68

8

Reducer, Green This part replaces 271001586.

271002029

$16.49

9

Riding Plate Ass'y | Includes 9 to 12

271001650

$312.49

10

Sealing Washer

250200114

$4.44

11

Torx Screw M6 X 14

250000384

$7.51

12

Socket Drain Plug M6 X 12

250500005

$16.49

13

Straight Plastic Fitting

293710111

$8.47

14

O-Ring

293300121

$8.32

15

Hex. Screw M8 X 40

207084060

$2.22

16

Stainless, Flat Washer 8 mm

234081600

$0.55

17

Hex. Elastic Nut M8

232581600

$1.48

18

Flat Washer 8 mm, Stainless

234082600

$2.43

19

Anode Zinc

271001813

$18.99

20

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

21

Stainless Flat Washer M6

234061600

$0.33

22

PUMP GRATE - Call your local BRP dealership

271001582

$114.99

23

Hex. Screw M6 X 16

207161660

$1.59

24

Stainless Flat Washer M6

234061600

$0.33

25

Hex. Screw M8 X 40

207184060

$2.22

26

Stainless, Flat Washer 8 mm

234081600

$0.55

27

Hex. Elastic Nut M8

232581600

$1.48

28

Stainless, Flat Washer 8 mm

234081600

$0.55

29

Drive Shaft

204120309

$476.99

30

Drive Shaft Plug

272000173

$8.68

31

Norma Clamp

293650077

$7.41

32

Bellows

272000183

$28.99

33

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

34

O-Ring

293300044

$1.05

35

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

36

C-Clip

271001575

$6.11
