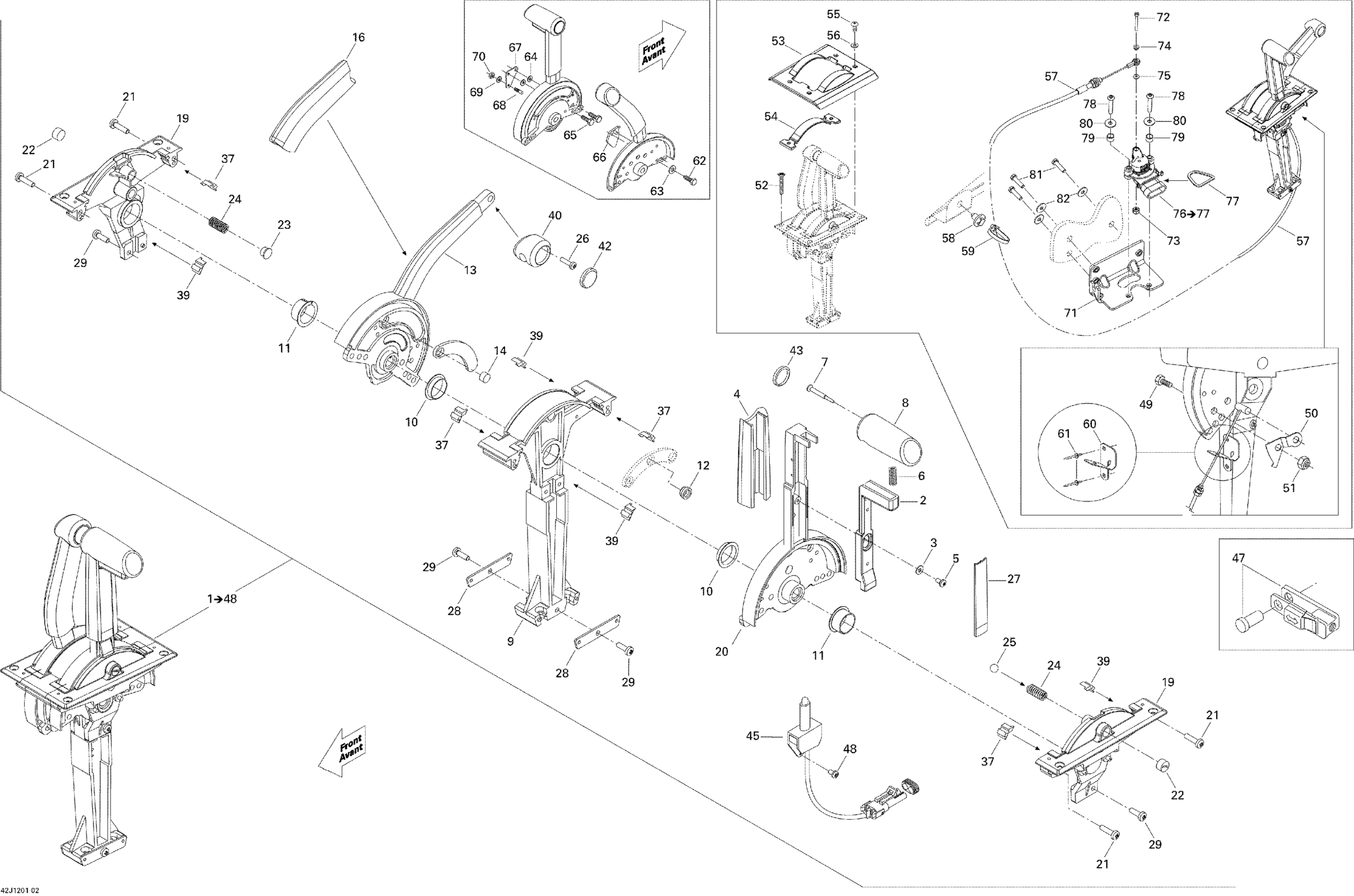

Sea-doo 150 Speedster 260, 2012 05- Control Handle Diagram
#
1
CONTROL-UFLEX - Call your local BRP dealership | Includes 1 to 340
277001859
Unavailable
2
LOCK - Call your local BRP dealership
277001825
Unavailable
3
WASHER - Call your local BRP dealership
277001829
Unavailable
4
MOLDED LEVER - Call your local BRP dealership
277001823
Unavailable
5
SCREW M4 X 8 - Call your local BRP dealership
277001828
Unavailable
6
SPRING - Call your local BRP dealership
277001830
Unavailable
7
SCREW M5 X 25 - Call your local BRP dealership
204390634
Unavailable
8
CONTROL HANDLE - Call your local BRP dealership
204390632
Unavailable
9
Not Available As Spare Part - Friction Washer
Unavailable
10
BUSHING - Call your local BRP dealership
277000398
Unavailable
11
BUSHING - Call your local BRP dealership
277000397
Unavailable
12
BALL BASE - Call your local BRP dealership | Not Shown
277001831
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
14
BLOCKING PIVOT - Call your local BRP dealership
277000404
Unavailable
16
THROTTLE LEVER - Call your local BRP dealership
204390626
Unavailable
19
Not Available As Spare Part - Friction Washer
Unavailable
20
Not Available As Spare Part - Friction Washer
Unavailable
21
SCREW M5 X 20 - Call your local BRP dealership
204100016
Unavailable
22
CAP SCREW - Call your local BRP dealership
277000402
Unavailable
23
FRICTION INSERT - Call your local BRP dealership
277000403
Unavailable
24
DETENT SPRING - Call your local BRP dealership
277001832
Unavailable
25
BALL - Call your local BRP dealership
277000399
Unavailable
26
Not Available As Spare Part - Friction Washer
Unavailable
27
LOCK COVER - Call your local BRP dealership
277001826
Unavailable
28
RETAINING PLATE - Call your local BRP dealership
204390227
Unavailable
29
Not Available As Spare Part - Friction Washer
Unavailable
37
Not Available As Spare Part - Friction Washer
Unavailable
39
Not Available As Spare Part - Friction Washer
Unavailable
40
THROTTLE HANDGRIP - Call your local BRP dealership
204390633
Unavailable
42
RED KNOB CAP - Call your local BRP dealership
204390630
Unavailable
43
BLACK KNOB CAP - Call your local BRP dealership
204390631
Unavailable
45
NEUTRAL SWITCH ASS'Y - Call your local BRP dealership | Not Shown
277001851
Unavailable
47
CLEVIS L26 - Call your local BRP dealership | Not Shown
204390226
Unavailable
48
SCREW M3X6 - Call your local BRP dealership | Not Shown
277001847
Unavailable
49
HEX. SCREW M5 X 16 - Call your local BRP dealership
207151660
Unavailable
50
THROTTLE LINK - Call your local BRP dealership
204390045
Unavailable
51
Hex. Elastic Nut M5 | X
232551600
$1.15
52
PHILLIPS SCREW M5 X 30 - Call your local BRP dealership
208453060
Unavailable
53
CONTROL PLATE - Call your local BRP dealership
277001767
Unavailable
54
CONTROL PLATE INSERT - Call your local BRP dealership
277001760
Unavailable
55
Phillips Screw M4 X 10
208641060
$1.01
56
Flat Washer 4 mm
234040600
$0.55
57
THROTTLE CABLE - Call your local BRP dealership
277001780
Unavailable
58
Mount Dart
293730040
$1.04
59
Tie Wrap 142 mm
293750002
$1.25
60
CABLE SUPPORT - Call your local BRP dealership
277000504
Unavailable
61
RIVET_POP 1/8 - Call your local BRP dealership
293150026
Unavailable
62
Hex. Cap Screw M6 X 12
207161260
$1.26
63
Lock Washer 1/4”
211200025
$1.29
64
Lock Washer 1/4”
211200025
$1.29
65
Hex. Cap Screw M6 X 12
207161260
$1.26
66
THROTTLE STOP - Call your local BRP dealership
204390610
Unavailable
67
STOP-REVERSE - Call your local BRP dealership
204390369
Unavailable
68
REVERSE PIN - Call your local BRP dealership
204390370
Unavailable
69
Lock Washer 1/4”
211200025
$1.29
70
Hex. Elastic Stop Nut M6
232561600
$1.15
71
SENSOR BRACKET - Call your local BRP dealership
277001694
Unavailable
72
SOCKET SCREW M3 X 30 - Call your local BRP dealership
205033060
Unavailable
73
Elastic Stop Nut M3
232531600
$2.11
74
PIVOT BUSHING - Call your local BRP dealership
706001163
Unavailable
75
PLASTIC WASHER - Call your local BRP dealership
277001810
Unavailable
76
SENSOR_POSITION THROTTLE - Call your local BRP dealership
277001727
Unavailable
77
O-Ring
270000544
$4.65
78
Socket Screw M5 X 30
205453060
$1.89
79
SPACER - Call your local BRP dealership
278002752
Unavailable
80
Flat Washer 5 mm, Stainless
234052600
$0.77
81
Hex. Screw M5 X 20
207152060
$1.47
82
Flat Washer 5 mm, Stainless
234052600
$0.77
