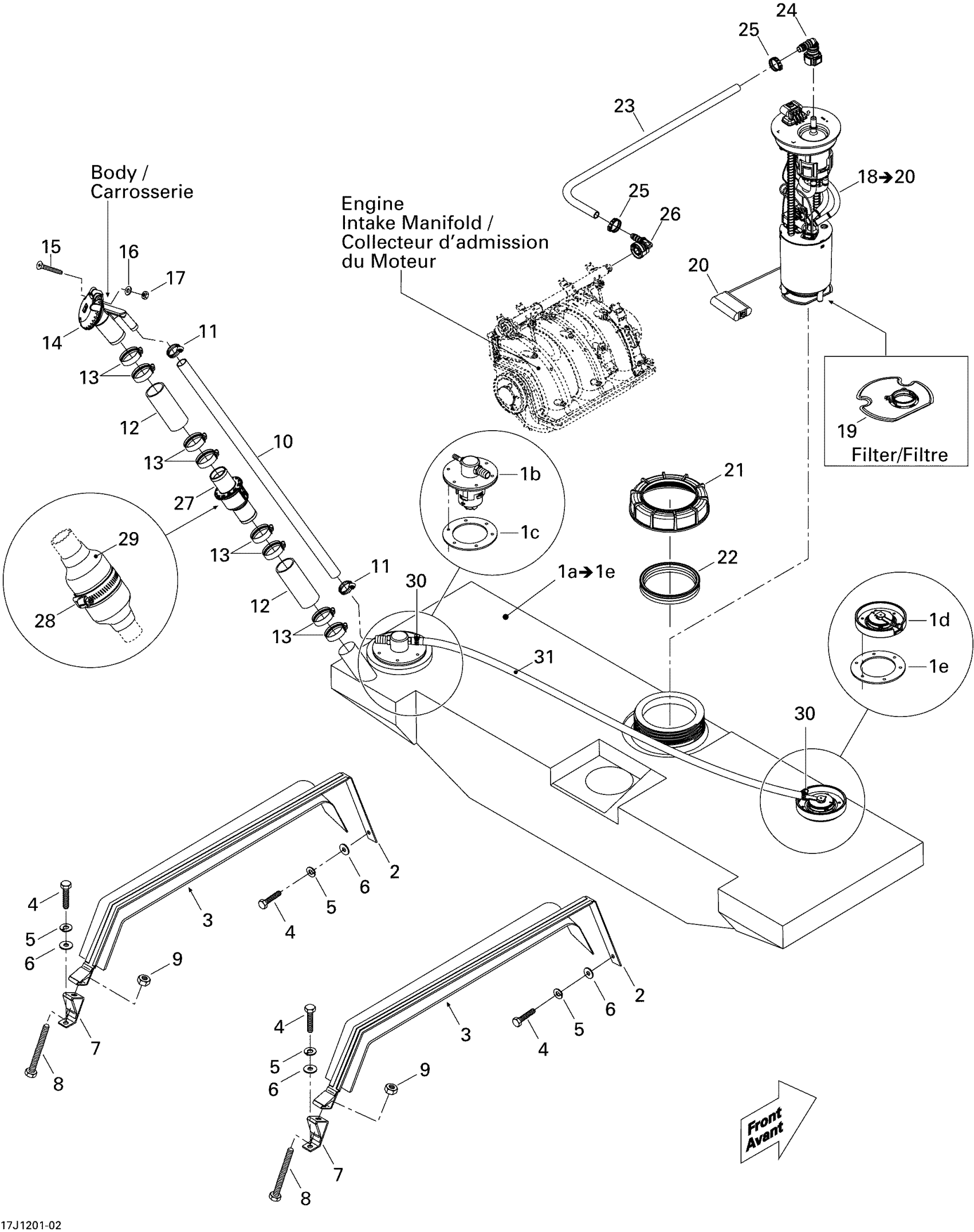

Sea-doo 150 Speedster 260, 2012 Fuel System Diagram

#

Description
Price

1a

FUEL TANK ASS'Y - Call your local BRP dealership | Includes 1a to 1e

275500814

Unavailable

1b

Fuel Limit Vent Valve

275500837

Unavailable

1c

Gasket

204560439

Unavailable

1d

Fuel Grade Valve

275500838

Unavailable

1e

Gasket

204560440

Unavailable

2

FUEL TANK STRAP - Call your local BRP dealership

204560181

Unavailable

3

Not Available As Spare Part - Friction Washer

Unavailable

4

Hex. Screw M8 X 30

207183060

$1.58

5

Lock Washer 8 mm, Stainless

234181601

$0.55

6

Flat Washer 8 mm, Stainless

234082600

$2.43

7

TANK BRACKET - Call your local BRP dealership

275500252

Unavailable

8

HEX. SCREW M8 X 55 - Call your local BRP dealership

207185560

Unavailable

9

Hex. Elastic Nut M8

232581600

$1.48

10

HOSE 16 MM - Call your local BRP dealership

204560358

Unavailable

11

NORMA CLAMP - Call your local BRP dealership

293650069

Unavailable

12

FILLER NECK HOSE - Call your local BRP dealership

204560401

Unavailable

13

NORMA CLAMP - Call your local BRP dealership

275500823

Unavailable

14

FUEL FILLER NECK ASS'Y - Call your local BRP dealership

275500816

Unavailable

15

PHILLIPS SCREW M4 X 25 - Call your local BRP dealership

208642560

Unavailable

16

Flat Washer 4 mm

234040600

$0.55

17

Elastic Stop Nut M4

232541600

$1.15

18

Fuel Pump Ass'y

275500734

$439.99

19

Fuel Filter

270600113

$33.99

20

Sensor Lever

275500780

$224.99

21

SPECIAL NUT M150 - Call your local BRP dealership

204100257

Unavailable

22

Gasket

293250173

$18.49

23

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable

24

Quick Attach 90°

275500700

$16.49

25

Norma Clamp

293650084

$4.12

26

Elbow Fitting 90°

293710105

$14.22

27

FILLER HOSE INLET CONTROL VALVE - Call your local BRP dealership

275500836

Unavailable

28

Tridon Clamp

293650179

$11.49

29

HEAT SHIELD - Call your local BRP dealership

204560444

Unavailable

30

Norma Clamp

293650084

$4.12

31

HOSE 5/16 - Call your local BRP dealership

204560396

Unavailable
