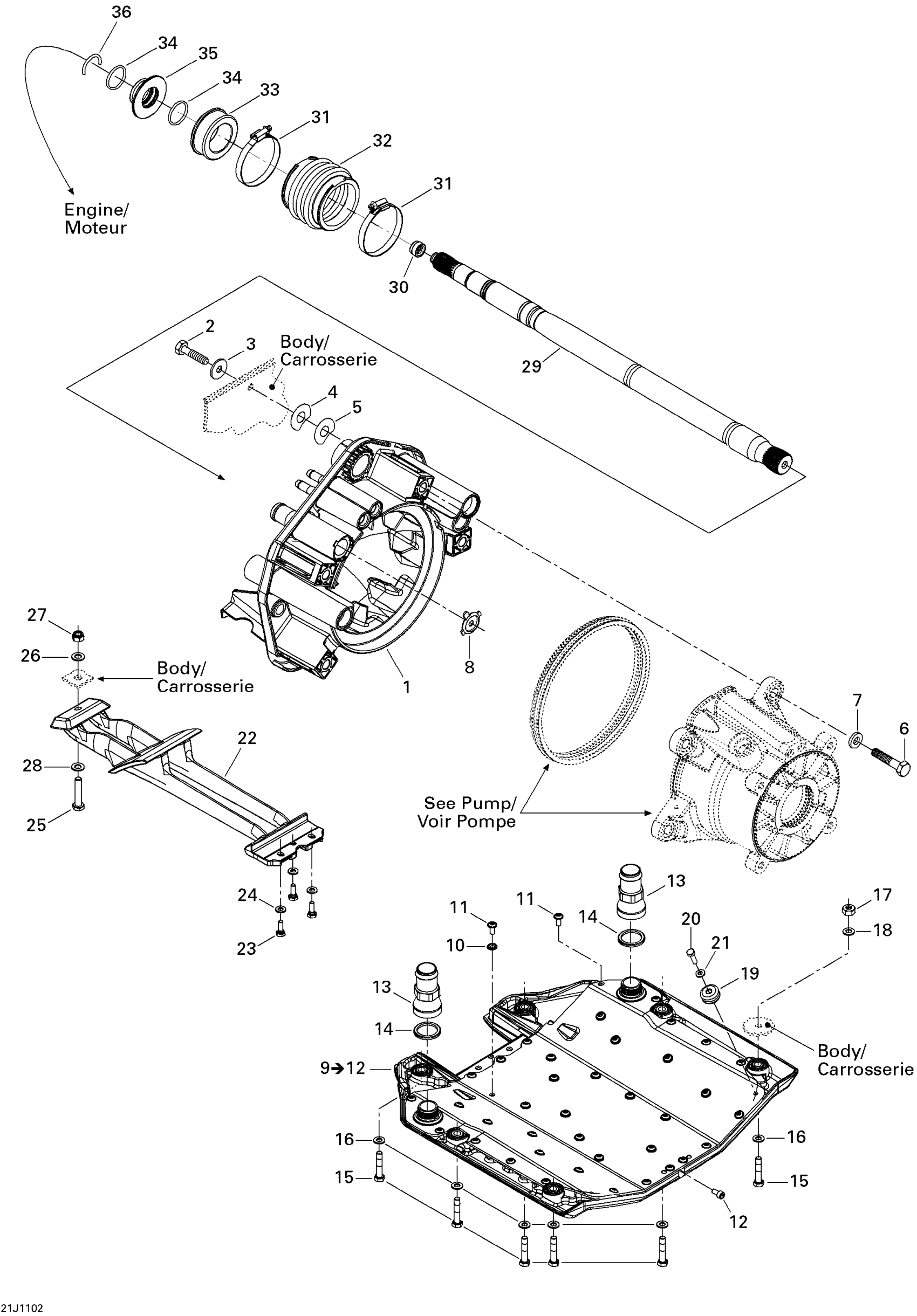

Sea-doo 150 Speedster 255, 2011 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120384

Unavailable

2

HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership

250000189

Unavailable

3

Flat Washer 10 mm, Stainless

234002600

$1.85

4

Shim 0.3 mm

272000053

$8.02

5

NEEDS DESCRIPTION This part replaces 204120067.

0460011

Unavailable

6

HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

250000188

Unavailable

7

Flat Washer

211200051

$1.34

8

Reducer, Green This part replaces 271001586.

271002029

$12.82

9

Riding Plate Ass'y | Includes 9 to 12

271001650

$252.17

10

Sealing Washer

250200114

$3.61

11

Torx Screw M6 X 14

250000384

$6.15

12

Socket Drain Plug M6 X 12

250500005

$11.74

13

Straight Plastic Fitting

293710111

$6.88

14

O-Ring

293300121

$6.18

15

Hex. Screw M8 X 40

207084060

$1.85

16

Stainless, Flat Washer 8 mm

234081600

$0.46

17

Hex. Elastic Nut M8

232581600

$1.25

18

Flat Washer 8 mm, Stainless

234082600

$1.98

19

Anode Zinc

271001813

$13.62

20

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.22

21

Stainless Flat Washer M6

234061600

$0.25

22

PUMP GRATE - Call your local BRP dealership

271001582

Unavailable

23

Hex. Screw M6 X 16

207161660

$1.22

24

Stainless Flat Washer M6

234061600

$0.25

25

Hex. Screw M8 X 40

207184060

$1.85

26

Stainless, Flat Washer 8 mm

234081600

$0.46

27

Hex. Elastic Nut M8

232581600

$1.25

28

Stainless, Flat Washer 8 mm

234081600

$0.46

29

Drive Shaft

204120309

$385.42

30

Drive Shaft Plug

272000173

$7.02

31

Norma Clamp

293650077

$6.11

32

Bellows

272000183

$22.72

33

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

34

O-Ring

293300044

$0.86

35

Carbon Ring Kit This part replaces 272000177.

295501200

$67.57

36

C-Clip

271001575

$4.54
