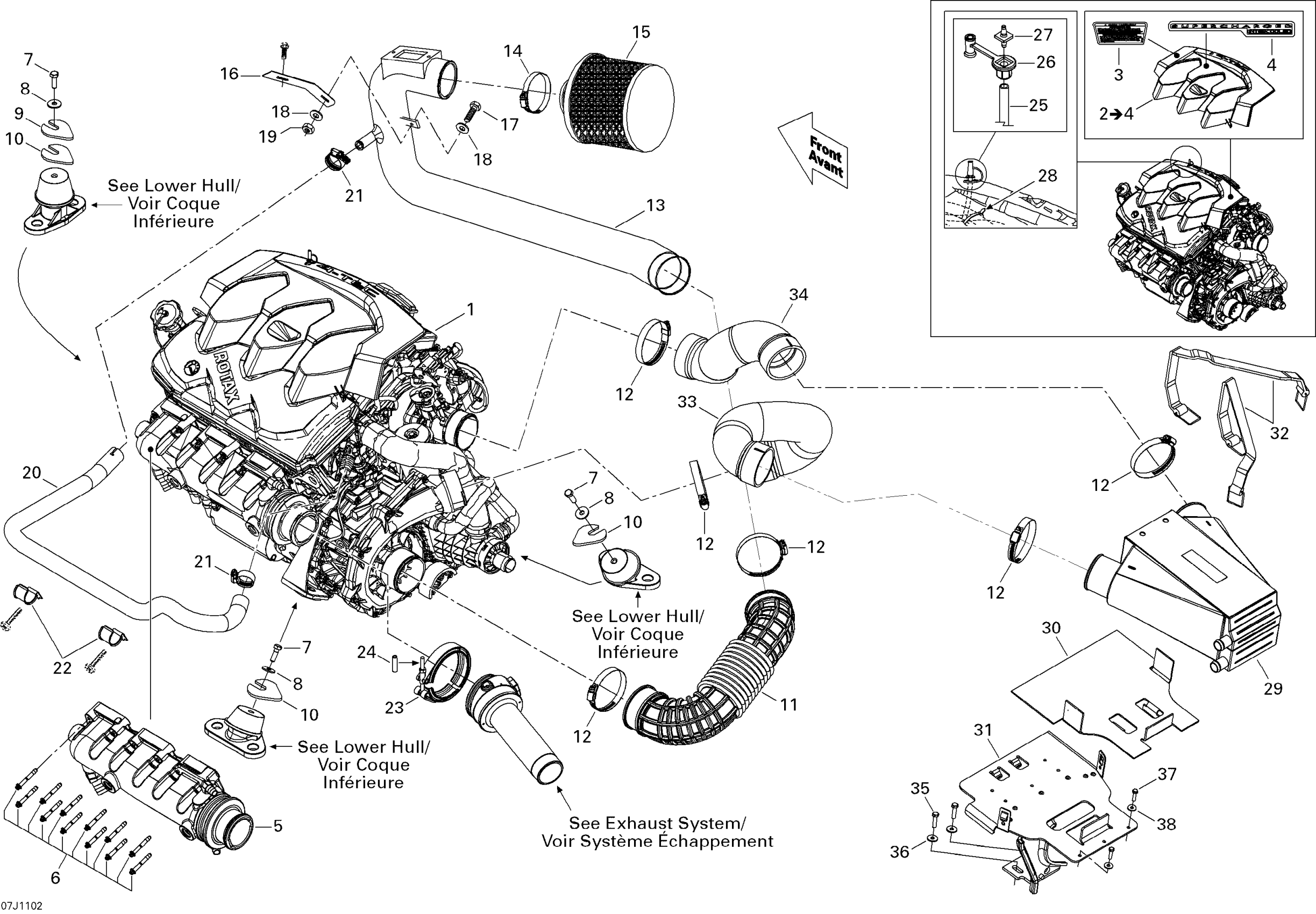

Sea-doo 150 Speedster 255, 2011 01- Engine And Air Intake Silencer Diagram

#

Description
Price

1

Engine Long Block This part replaces 420150338.

420150394

$4.00

1

Engine Long Block This part replaces 420150338.

420150394

$4.00

2

ENGINE COVER ASS'Y - Call your local BRP dealership | Includes 1 to 3

270000727

Unavailable

3

WARNING DECAL, ENGINE OIL LEVEL - Call your local BRP dealership

219902674

Unavailable

4

IDENTIFICATION DECAL, MOTOR SCIC - Call your local BRP dealership

219902676

Unavailable

5

Engine Exhaust Manifold 0990732-00 - 150 This part replaces 420673294.

296000422

$839.99

6

Torx Flange Screw M6 X 45

420641198

$4.12

7

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

8

Flat Washer 8 mm, Stainless

234082600

$2.43

9

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

10

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

11

INTAKE HOSE - Call your local BRP dealership | Without Catalyst

273000188

Unavailable

12

Tridon Clamp

293650179

$11.49

13

AIR INTAKE TUBE - Call your local BRP dealership | Without Catalyst

204250437

Unavailable

14

Tridon Clamp

293650179

$11.49

15

Air Filter This part replaces 204250436.

204250466

$137.99

16

BRACKET - Call your local BRP dealership | Without Catalyst

204250404

Unavailable

17

Hex. Screw M6 X 30

207163060

$1.48

18

Flat Washer, Stainless/Neoprene

211200055

$0.73

19

Hex. Elastic Stop Nut M6

232561600

$1.15

20

FORMED HOSE - Call your local BRP dealership

270000808

Unavailable

21

Tridon Gear Clamp

293650051

$4.19

22

Retainer

275500664

$14.75

23

Exhaust Clamp

274001417

$58.99

24

Polyurethane Hose 10000Mm Long

219704410

$56.99

25

HOSE 3 MM - Call your local BRP dealership

270000469

Unavailable

26

GROMMET CAP - Call your local BRP dealership

293830120

Unavailable

27

CONNECTOR - Call your local BRP dealership

293710107

$1.09

28

Tie Wrap 142 mm

293750002

$1.25

29

Intercooler

296000379

Unavailable

30

RUBBER PAD - Call your local BRP dealership

293830124

Unavailable

31

COOLER SUPPORT - Call your local BRP dealership

270000752

Unavailable

32

Fuel Tank Strap

293850093

$21.99

33

Intercooler Hose Inlet

204250474

Unavailable

34

INTERCOOLER HOSE, OUTLET - Call your local BRP dealership

204250442

Unavailable

35

Hex. Screw M6 X 25

207162560

$1.47

36

Flat Washer M6, Stainless

234062600

$0.77

37

Hex. Screw M5 X 20

207152060

$1.47

38

Flat Washer 5 mm, Stainless

234052600

$0.77
