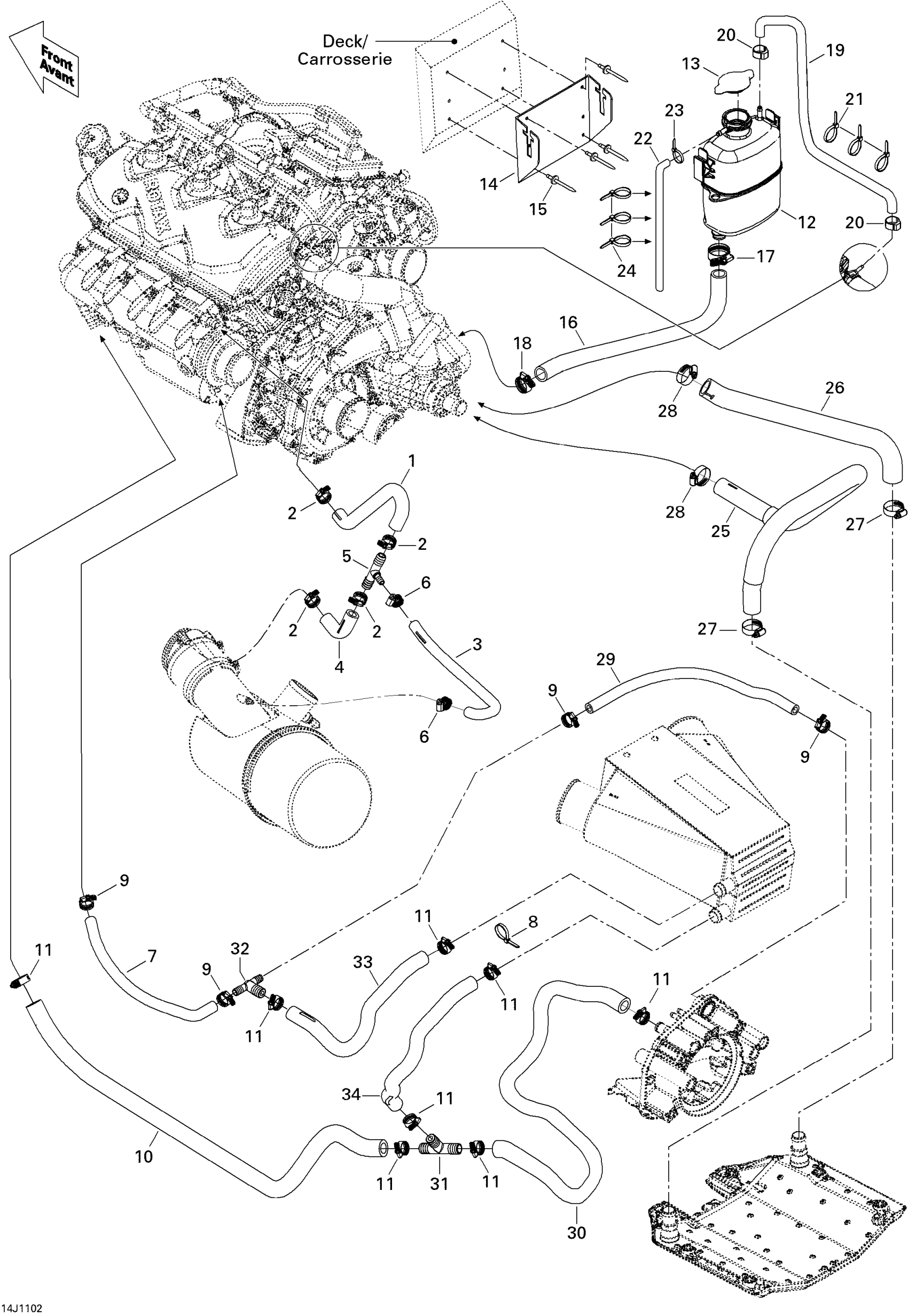

Sea-doo 150 Speedster 255, 2011 Cooling System Diagram

#

Description
Price

1

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

2

Tridon Gear Clamp

293650172

$3.09

3

Formed Hose | Without Catalyst

276000246

$19.49

4

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

5

T-Fitting

293710116

$17.62

6

Tridon Gear Clamp

293650171

$3.09

7

Was 276000001 Hose 12.5 mm

219704394

$51.99

8

Tie Wrap 368 mm

293750008

$1.04

9

Tridon Gear Clamp

293650172

$3.09

10

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

11

Tridon Gear Clamp

293650051

$4.19

12

Coolant Tank

276000086

$109.99

13

Pressure Cap | Includes 720 to 720a

276000100

$25.99

14

COOLANT TANK BRACKET - Call your local BRP dealership

276000287

Unavailable

15

Pop Rivet 3/16"

293150039

$1.49

16

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

17

Tridon Gear Clamp

293650051

$4.19

18

Tridon Gear Clamp

293650019

$5.82

19

Was 275500549 Hose 1/4"

219704357

$194.99

20

Oetiker Gear Clamp

293650025

$3.09

21

Tie Wrap 142 mm

293750002

$1.25

22

Polyurethane Hose 10000Mm Long

219704410

$56.99

23

Tie Wrap 94 mm | 4X4

293750001

$1.03

24

Tie Wrap 142 mm

293750002

$1.25

25

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

26

RH Radiator Hose

276000248

$58.99

27

Tridon Gear Clamp

293650045

$5.69

28

Tridon Gear Clamp

293650045

$5.69

29

Was 276000001 Hose 12.5 mm

219704394

$51.99

30

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

31

T-Fitting

293710131

$15.87

32

T-Fitting

293710132

$12.65

33

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

34

Hose 19.0Mm. 2000Mm Long

219704361

$48.99
