- 150 Speedster 215, 2008
10- Electrical System Edition 2

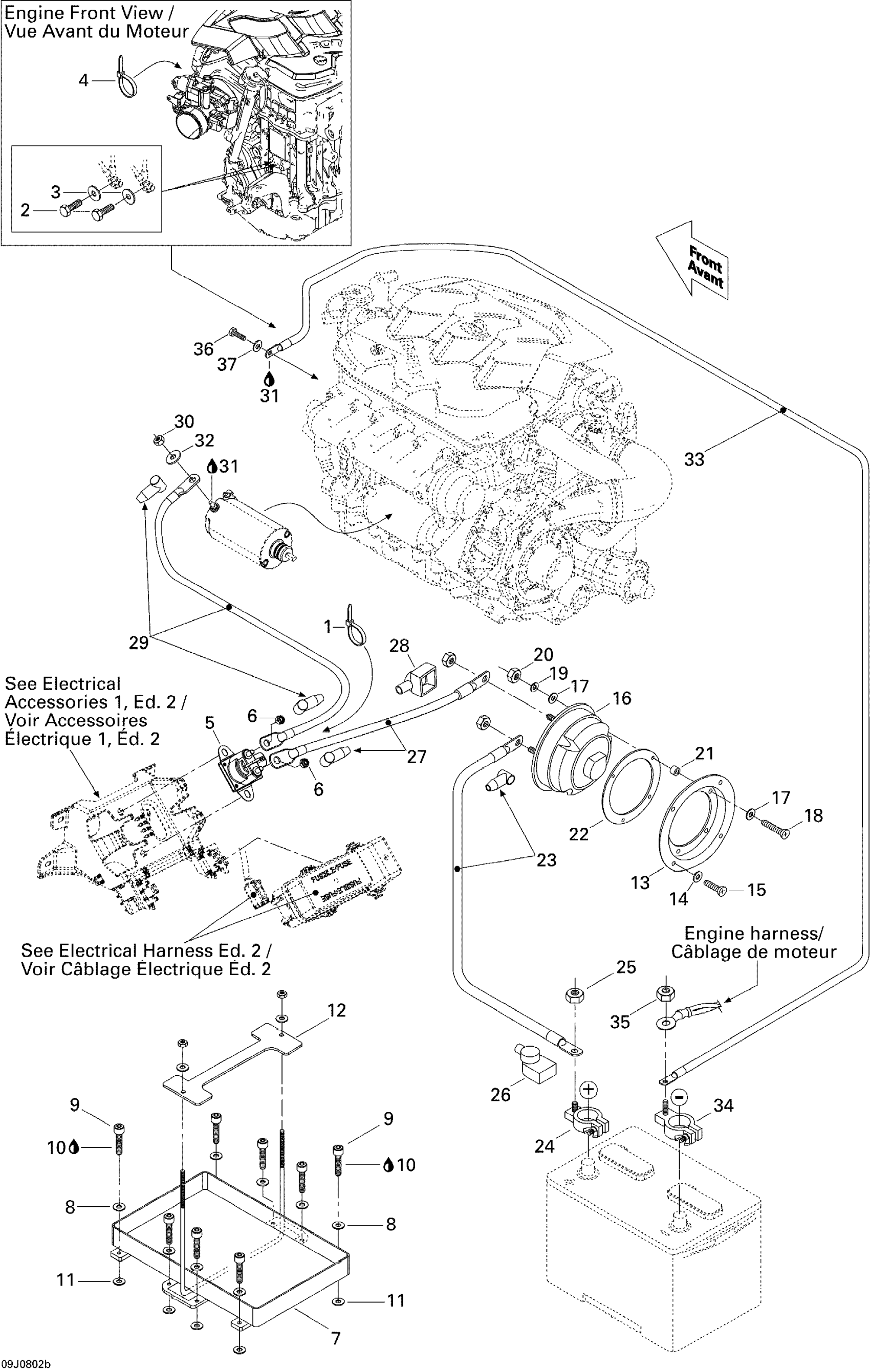

Sea-doo 150 Speedster 215, 2008 10- Electrical System Edition 2 Diagram
#
Description
Price
1
Tie Wrap 142 mm
293750002
$1.25
2
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
3
Stainless Flat Washer M6
234061600
$0.33
4
Tie-Rap 180 mm
414115200
$0.11
5
Starter Relay
278003012
$42.49
6
Hex. Elastic Stop Nut M6
232561600
$1.15
7
BATTERY SUPPORT - Call your local BRP dealership
204471008
Unavailable
8
FLAT WASHER - Call your local BRP dealership
204100069
Unavailable
9
Socket Head Screw M6 X 25
205062560
$1.69
10
Loctite 243, 10 ml
293800060
$21.49
11
FLAT WASHER, PLASTIC - Call your local BRP dealership
211200029
Unavailable
12
TOP BATTERY SUPPORT - Call your local BRP dealership
204471290
Unavailable
13
SWITCH SUPPORT - Call your local BRP dealership
204470259
Unavailable
14
Flat Washer 4 mm, Stainless
234041600
$1.15
15
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
209642560
Unavailable
16
BATTERY SWITCH - Call your local BRP dealership
204470814
Unavailable
17
Flat Washer M5, Stainless
234051600
$0.77
18
SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership
205455060
Unavailable
19
Helical Lock Washer M5
234151601
$1.15
20
Hex. Nut M5
232051600
$1.15
21
NYLON SPACER - Call your local BRP dealership
204470330
Unavailable
22
SWITCH ADAPTOR - Call your local BRP dealership
204470813
Unavailable
23
POSITIVE SWITCH CABLE - Call your local BRP dealership
204470250
Unavailable
24
POSITIVE BATTERY POLE - Call your local BRP dealership
204470349
Unavailable
25
HEX. NUT 3/8-16 - Call your local BRP dealership
211100063
Unavailable
26
RED BOOT - Call your local BRP dealership
204470269
Unavailable
27
RED CABLE - Call your local BRP dealership
204470799
Unavailable
28
RED BOOT - Call your local BRP dealership
204470269
Unavailable
29
RED CABLE - Call your local BRP dealership
204470798
Unavailable
30
Hex. Elastic Stop Nut M6
232561600
$1.15
31
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
32
Stainless Flat Washer M6
234061600
$0.33
33
RH GROUND CABLE - Call your local BRP dealership
204470199
Unavailable
34
NEGATIVE BATTERY POLE - Call your local BRP dealership
204470348
Unavailable
35
HEX. NUT 5/16?-18 - Call your local BRP dealership
204100052
Unavailable
36
Hex. Screw M6 X 12, Scotch Grip
207361260
$0.58
37
Flat Washer M6, Stainless
234062600
$0.77
