- 150 Speedster 215, 2008
10- Electrical Accessories 2, Edition 2

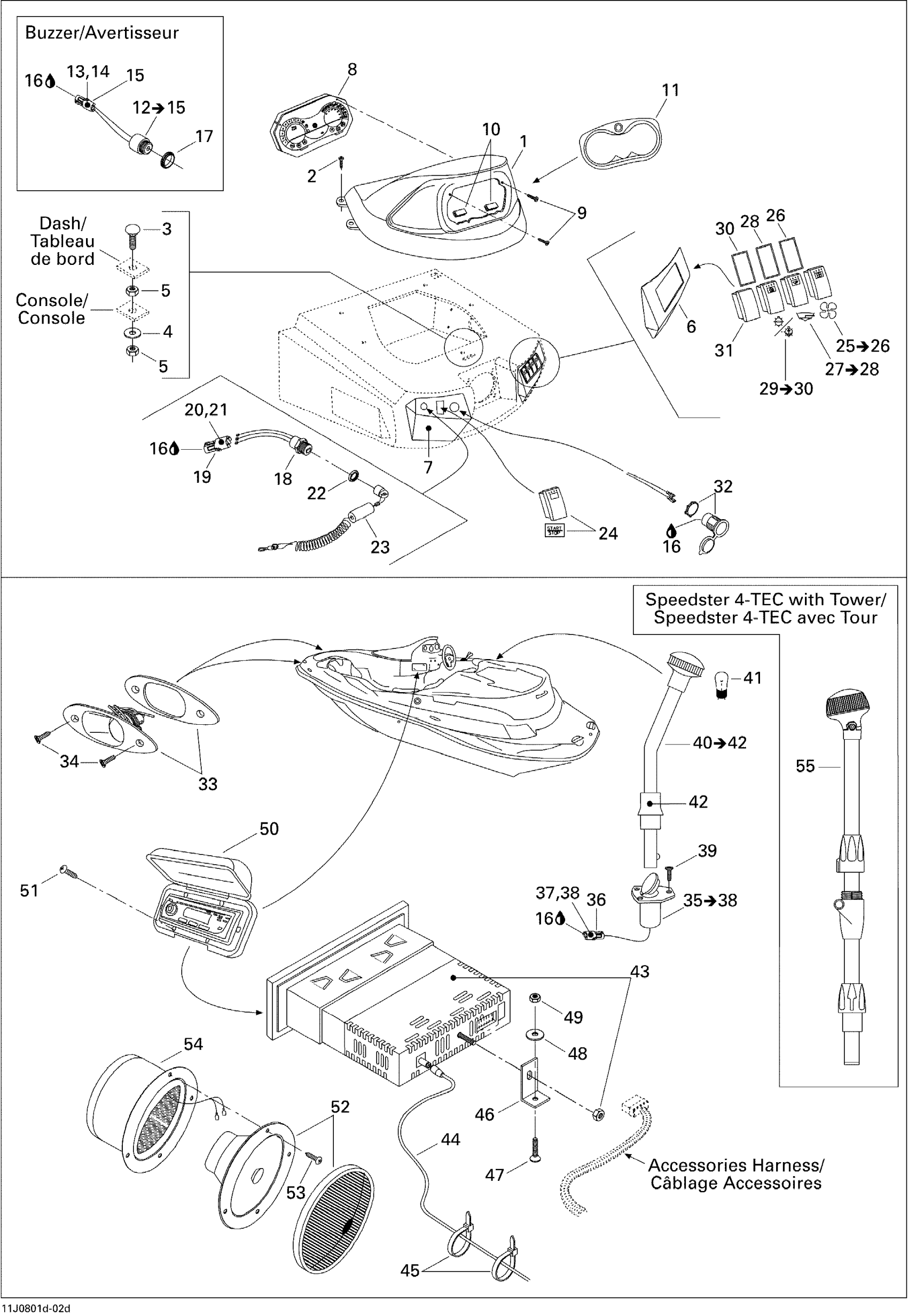

Sea-doo 150 Speedster 215, 2008 10- Electrical Accessories 2, Edition 2 Diagram
#
1
DASH - Call your local BRP dealership
204471300
Unavailable
2
SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership
202000203
Unavailable
3
Elevator Bolt
204000130
Unavailable
4
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
5
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
6
RH Switch Panel
204471138
Unavailable
7
LH SWITCH PANEL - Call your local BRP dealership
204471250
Unavailable
8
Cluster Gauge
204471378
$899.99
9
Hex. Flange Screw K40 X 25
241142560
$2.64
10
TRIM - Call your local BRP dealership
293830113
Unavailable
11
Gauge Bezel, Chrome
278002144
$38.99
12
Buzzer Ass'y
204470913
$92.99
13
Male Terminal | XT Models
278000222
$3.19
14
Wire Seal
278000218
$4.39
15
Female Housing, 2 Circuits
278000217
$9.59
16
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
17
Buzzer Nut
278000707
Unavailable
18
Safety Switch
278002351
$114.99
19
Male Housing, 4 Circuits
278000395
$15.99
20
Wire Seal
278000218
$4.39
21
Female Terminal
278000223
$3.19
22
Safety Nut (DESS Switch)
278002963
$3.28
23
Safety Lanyard
204471206
$56.99
24
START/STOP SWITCH - Call your local BRP dealership
204471178
Unavailable
25
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
26
Gasket
204470132
Unavailable
27
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
28
Gasket
204470132
Unavailable
29
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
30
Gasket
204470132
Unavailable
31
SWITCH PLUG - Call your local BRP dealership
204470596
Unavailable
32
DC Outlet
710001248
$37.99
33
LATERAL LIGHT KIT - Call your local BRP dealership
204470908
Unavailable
34
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership
209941960
Unavailable
35
Rear Lamp Base Ass'y | Includes 12 to 16
204471177
Unavailable
36
Female Housing, 2 Circuits
278000217
$9.59
37
Male Terminal | XT Models
278000222
$3.19
38
Wire Seal
278000218
$4.39
39
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
40
Rear Light Pole | Models Without Tower, Includes 39 to 41
204470792
Unavailable
41
Bulb
204470053
Unavailable
42
COLLAR - Call your local BRP dealership
204470350
Unavailable
43
Not Available As Spare Part - Friction Washer
Unavailable
44
Not Available As Spare Part - Friction Washer
Unavailable
45
Tie Wrap 94 mm | 4X4
293750001
$1.03
46
RADIO SUPPORT - Call your local BRP dealership
204470981
Unavailable
47
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership
208462060
Unavailable
48
Flat Washer M6, Stainless
234062600
$0.77
49
Hex. Elastic Stop Nut M6
232561600
$1.15
50
RADIO CD PLAYER COVER - Call your local BRP dealership
204470894
Unavailable
51
Pan Head Tapping Screw M3.5x25
209632560
Unavailable
52
Not Available As Spare Part - Friction Washer
Unavailable
53
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
54
Not Available As Spare Part - Friction Washer
Unavailable
55
Rear Light Pole | Models With Tower
204470842
Unavailable
