- 150 Speedster 215, 2008
10- Electrical Accessories 2, Edition 1

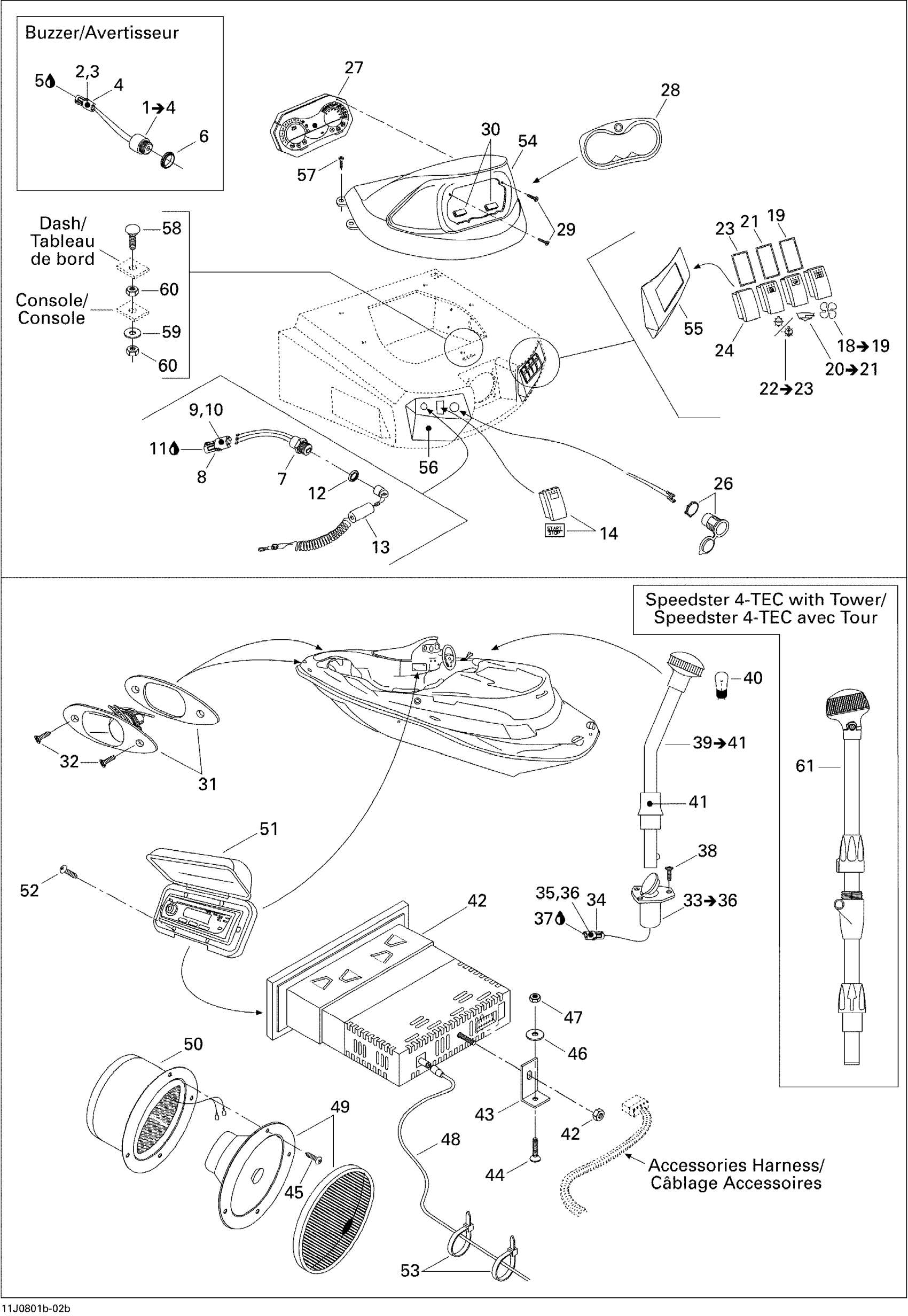

Sea-doo 150 Speedster 215, 2008 10- Electrical Accessories 2, Edition 1 Diagram
#
Not Available As Spare Part - Friction Washer
Unavailable
1
Buzzer Ass'y
204470913
$92.99
2
Male Terminal | XT Models
278000222
$3.19
3
Wire Seal
278000218
$4.39
4
Female Housing, 2 Circuits
278000217
$9.59
5
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
6
Buzzer Nut
278000707
Unavailable
7
Safety Switch This part replaces 278002325.
278002773
$114.99
8
Male Housing, 3 Circuits
278000273
$9.59
9
Wire Seal
278000218
$4.39
10
Female Terminal
278000223
$3.19
11
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
12
Safety Nut (DESS Switch)
278002963
$3.28
13
Safety Lanyard
204471206
$56.99
14
START/STOP SWITCH - Call your local BRP dealership
204471178
Unavailable
18
VENTILATION SWITCH ASS'Y - Call your local BRP dealership
204470011
Unavailable
19
Gasket
204470132
Unavailable
20
BILGE PUMP SWITCH ASS'Y - Call your local BRP dealership
204470099
Unavailable
21
Gasket
204470132
Unavailable
22
LIGHT SWITCH ASS'Y - Call your local BRP dealership
204470100
Unavailable
23
Gasket
204470132
Unavailable
24
SWITCH PLUG - Call your local BRP dealership
204470596
Unavailable
26
DC Outlet
710001248
$37.99
27
Cluster Gauge
204471378
$899.99
28
Gauge Bezel, Chrome
278002144
$38.99
29
Hex. Flange Screw K40 X 25
241142560
$2.64
30
TRIM - Call your local BRP dealership
293830113
Unavailable
31
LATERAL LIGHT KIT - Call your local BRP dealership
204470908
Unavailable
32
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership
209941960
Unavailable
33
Rear Light Base Ass'y | Includes 33 to 36
278000674
Unavailable
34
Female Housing, 2 Circuits
278000217
$9.59
35
Male Terminal | XT Models
278000222
$3.19
36
Wire Seal
278000218
$4.39
37
Was 293550004 Dielectric Grease, 150 g
219704453
$38.99
38
Phillips Tapping Screw M4.2 X 32
209943260
$1.47
39
Rear Light Pole | Models Without Tower, Includes 39 to 41
204470792
Unavailable
40
Bulb
204470053
Unavailable
41
COLLAR - Call your local BRP dealership
204470350
Unavailable
42
Not Available As Spare Part - Friction Washer
Unavailable
43
RADIO SUPPORT - Call your local BRP dealership
204470981
Unavailable
44
PHILLIPS SCREW M6 X 20 - Call your local BRP dealership
208462060
Unavailable
45
TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership
209641360
Unavailable
46
Flat Washer M6, Stainless
234062600
$0.77
47
Hex. Elastic Stop Nut M6
232561600
$1.15
48
Not Available As Spare Part - Friction Washer
Unavailable
49
Not Available As Spare Part - Friction Washer
Unavailable
50
Not Available As Spare Part - Friction Washer
Unavailable
51
RADIO CD PLAYER COVER - Call your local BRP dealership
204470894
Unavailable
52
Pan Head Tapping Screw M3.5x25
209632560
Unavailable
53
Tie Wrap 94 mm | 4X4
293750001
$1.03
54
DASH - Call your local BRP dealership
204471300
Unavailable
55
RH Switch Panel
204471138
Unavailable
56
LH SWITCH PANEL - Call your local BRP dealership
204471250
Unavailable
57
SCREW-TAPP.TRUSS HD.PH.M4.2X25 - Call your local BRP dealership
202000203
Unavailable
58
Elevator Bolt
204000130
Unavailable
59
FLAT WASHER 9/32? - Call your local BRP dealership
204100089
Unavailable
60
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
61
Rear Light Pole | Models With Tower
204470842
Unavailable
