Description

Price

1

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

209641960

Unavailable

2

Flat Washer 4 mm, Stainless

234041600

$1.15

3

MODULE SUPPORT - Call your local BRP dealership

278002699

Unavailable

4

TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership

204100203

Unavailable

5

Flat Washer M6, Stainless

234062600

$0.77

6

Accessories Harness

204471287

Unavailable

7

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

8

Flat Washer 4 mm, Stainless

234041600

$1.15

9

FUSE BLOCK SUPPORT - Call your local BRP dealership

204471274

Unavailable

10

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

11

Pan Head Screw 10-32 X 1/2"

204100220

$2.51

12

Hex. Screw 10-14 X 7/8”

211000023

$3.59

13

Flat Washer 5 mm, Stainless

234052600

$0.77

14

Diagnostic Connector

278002704

$19.49

15

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

16

Tie Wrap 142 mm

293750002

$1.25

17

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

18

HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst

204100226

Unavailable

19

Loctite 243, 10 ml

293800060

$21.49

20

Lock Washer 1/4”

211200025

$1.29

21

SEAL - Call your local BRP dealership

293250123

Unavailable

22

Temperature Sensor

278002895

$39.99

23

Était/Was 293800038 Loctite 518, 50 ml

219704456

$53.99

24

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

25

Fan Ass'y | Includes 44 to 47

204470108

$144.99

26

Male Connector, 2 Circuits

278000220

$15.49

27

Female Terminal

278000223

$3.19

28

Wire Seal

278000218

$4.39

29

Pop Rivet 3/16"

293150088

$0.99

30

Flat Washer 5 mm, Stainless

234052600

$0.77

31

Speed Sensor

278001993

$169.99

32

Silicone Sealant 51388, 300 ml

296000309

$36.99

33

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

34

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

35

Bilge Pump

204471431

Unavailable

36

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

37

ENGINE WIRING HARNESS - Call your local BRP dealership

204471289

Unavailable

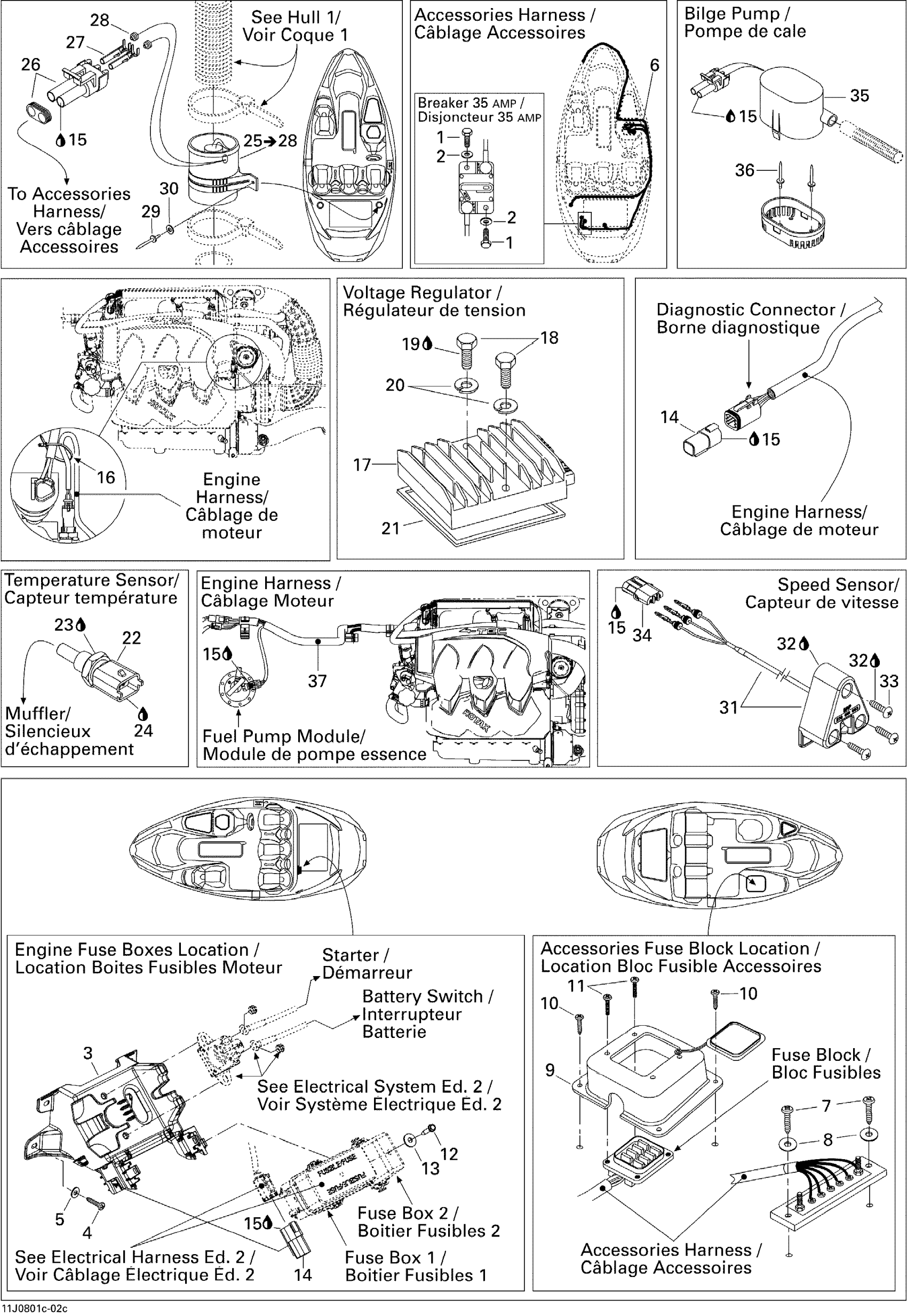

Sea-doo 150 Speedster 215, 2008 10- Electrical Accessories 1, Edition 2 Diagram

PHILLIPS TAPPING SCREW M4.2 X 19 - Call your local BRP dealership

Flat Washer 4 mm, Stainless

MODULE SUPPORT - Call your local BRP dealership

TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership

Flat Washer M6, Stainless

Accessories Harness

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

Flat Washer 4 mm, Stainless

FUSE BLOCK SUPPORT - Call your local BRP dealership

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

Pan Head Screw 10-32 X 1/2"

Hex. Screw 10-14 X 7/8”

Flat Washer 5 mm, Stainless

Diagnostic Connector

Was 293550004 Dielectric Grease, 150 g

Tie Wrap 142 mm

Voltage Regulator | For replacement, refer to service bulletin 2005-5

HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst

Loctite 243, 10 ml

Lock Washer 1/4”

SEAL - Call your local BRP dealership

Temperature Sensor

Était/Was 293800038 Loctite 518, 50 ml

Was 293550004 Dielectric Grease, 150 g

Fan Ass'y | Includes 44 to 47

Male Connector, 2 Circuits

Female Terminal

Wire Seal

Pop Rivet 3/16"

Flat Washer 5 mm, Stainless

Speed Sensor

Silicone Sealant 51388, 300 ml

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

Female Terminal Housing, 3 Circuits | XT Models

Bilge Pump

RIVET_POP 5/32 - Call your local BRP dealership

ENGINE WIRING HARNESS - Call your local BRP dealership
