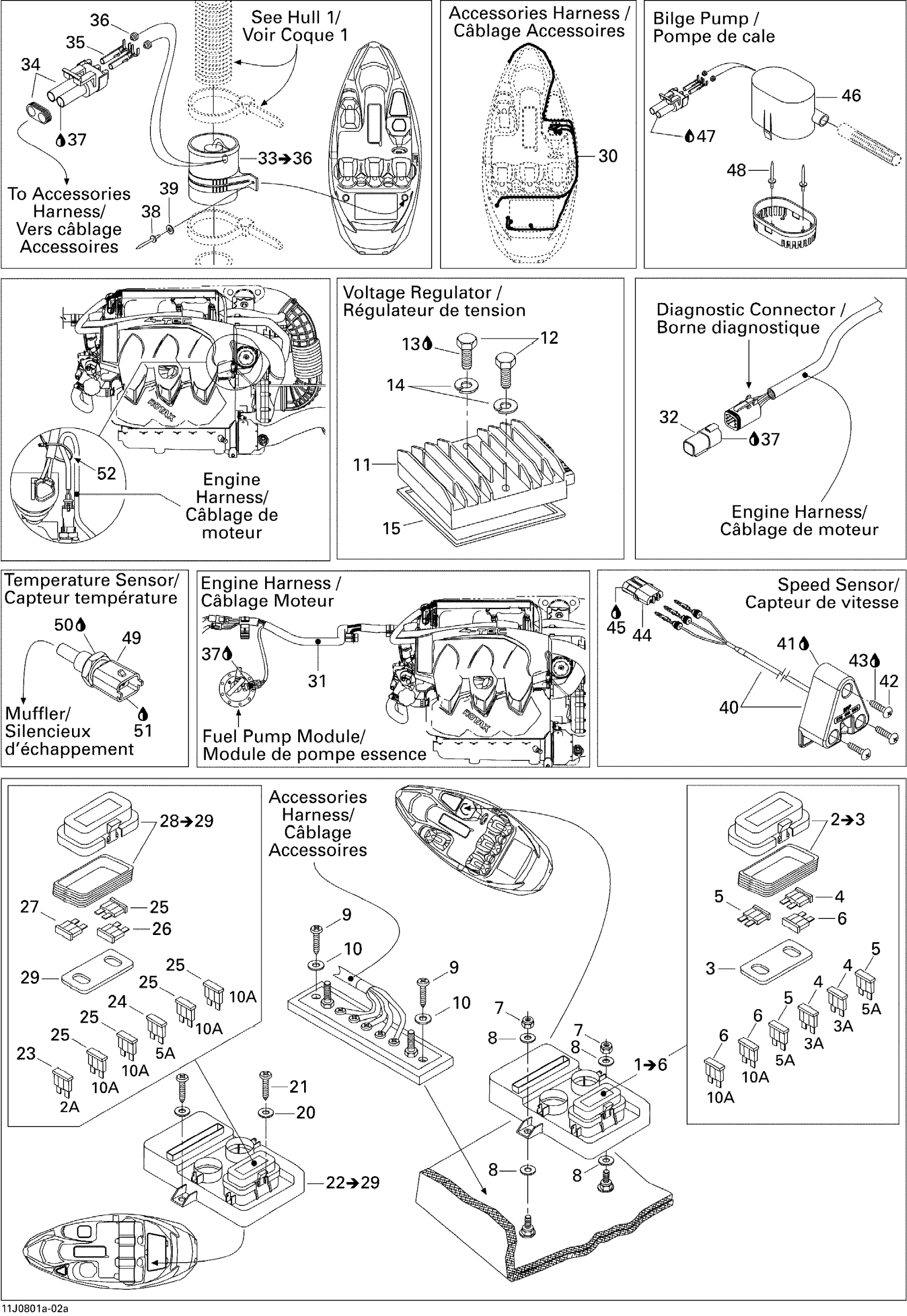

Sea-doo 150 Speedster 215, 2008 Electrical Accessories 1, Edition 1 Diagram

#

Description
Price

1

SIMPLE ENGINE INTERFACE - Call your local BRP dealership | Includes 1 to 6

204471264

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

4

FUSE, 3 AMPERES - Call your local BRP dealership | CE

278001196

Unavailable

5

Fuse, 5 Amperes | CE

278000344

$3.12

6

Fuse, 10 Amperes | North America

278001197

$1.79

7

Hex. Elastic Stop Nut M6

232561600

$0.92

8

Flat Washer M6, Stainless

234062600

$0.64

9

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

10

Flat Washer 4 mm, Stainless

234041600

$0.91

11

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$118.92

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Loctite 243, 10 ml

293800060

$20.77

14

Lock Washer 1/4”

211200025

$1.04

15

SEAL - Call your local BRP dealership

293250123

Unavailable

20

Flat Washer M6, Stainless

234062600

$0.64

21

TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership

204100203

Unavailable

22

FUSE BLOCK - Call your local BRP dealership | Includes 17 to 24

204470770

Unavailable

23

FUSE, 2 AMPERES - Call your local BRP dealership

278001442

Unavailable

24

Fuse, 5 Amperes | CE

278000344

$3.12

25

Fuse, 10 Amperes | North America

278001197

$1.79

26

Fuse, 20 Amperes

409003900

$3.12

27

Fuse, 30 Amperes

410917200

$3.12

28

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

29

COVER BUSHING - Call your local BRP dealership | North America

278001719

Unavailable

30

Accessory Harness

204471222

Unavailable

31

ENGINE HARNESS - Call your local BRP dealership | Includes 001 to 960

204471230

Unavailable

32

Diagnostic Connector

278002704

$15.57

33

Fan Ass'y | Includes 44 to 47

204470108

$114.37

34

Male Connector, 2 Circuits

278000220

$11.02

35

Female Terminal

278000223

$2.55

36

Wire Seal

278000218

$3.48

37

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

38

Pop Rivet 3/16"

293150088

$0.91

39

Flat Washer 5 mm, Stainless

234052600

$0.64

40

Speed Sensor

278001993

$143.62

41

Silicone Sealant 51388, 300 ml

296000309

$35.72

42

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

43

Silicone Sealant 51388, 300 ml

296000309

$35.72

44

Female Terminal Housing, 3 Circuits | XT Models

278000281

$8.11

45

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

46

Bilge Pump

204471431

Unavailable

47

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

48

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

49

Temperature Sensor

278002895

$31.82

50

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

51

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

52

Tie Wrap 142 mm

293750002

$0.88
