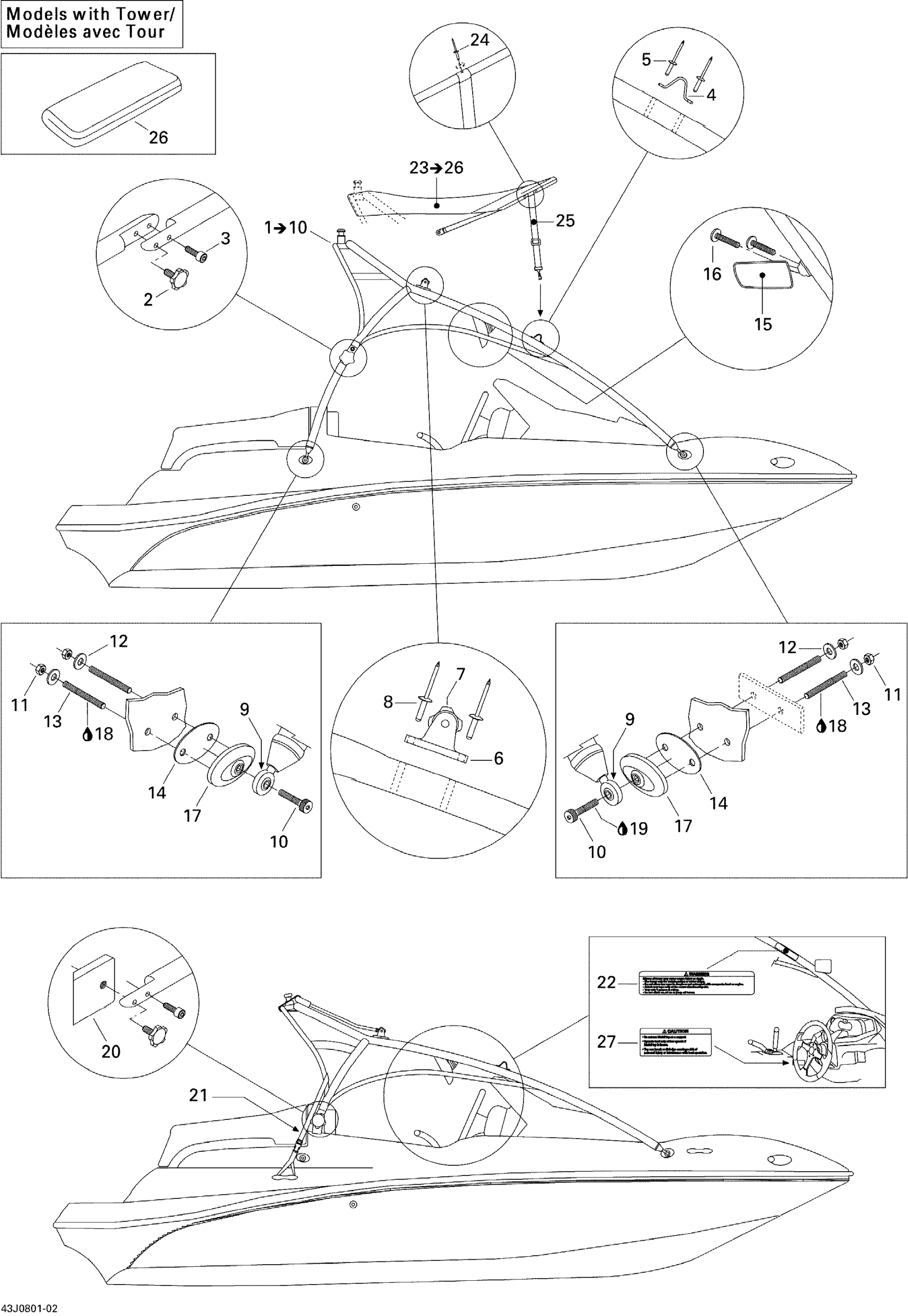

Sea-doo 150 Speedster 215, 2008 09- Tower And Bimini Top Diagram
#
Description
Price
1
Tower Ass'y | Includes 1 to 10
204072645
Unavailable
2
Fluted Knob
204071433
Unavailable
3
SOCKET HEAD SCREW 3/8-16 X 1-1/2 - Call your local BRP dealership
204100094
Unavailable
4
STRAP EYE - Call your local BRP dealership
204071845
Unavailable
5
RIVET 5/32 X 3/8 SS - Call your local BRP dealership
204130057
Unavailable
6
BIMINI BRACKET - Call your local BRP dealership
204071846
Unavailable
7
Knob, Black
204071847
Unavailable
8
RIVET 3/16 X 1/2 SS - Call your local BRP dealership
204130058
Unavailable
9
Joint 1/2"
204072012
Unavailable
10
Socket Screw 1/2-13 X 1-1/2"
204100190
Unavailable
11
LOCK NUT 1/2? - Call your local BRP dealership
204100131
Unavailable
12
FENDER WASHER - Call your local BRP dealership
204100132
Unavailable
13
Threaded Stud
204100152
Unavailable
14
Gasket
204130105
Unavailable
15
SKI MIRROR - Call your local BRP dealership This part replaces 204071420.
295100386
Unavailable
16
PHILLIPS SCREW 10-32 X 1? - Call your local BRP dealership
204100129
Unavailable
17
Tower Support
204072648
Unavailable
18
Loctite 271, 10 ml
293800005
$26.99
19
Loctite 243, 10 ml
293800060
$21.49
20
SPACER WITH NUT - Call your local BRP dealership
204072099
Unavailable
21
TOWER STRAP - Call your local BRP dealership
204071830
Unavailable
22
WARNING DECAL, TOWER - Call your local BRP dealership
204901340
Unavailable
23
Bimini Top Ass'y | Includes 23 to 26
204072650
Unavailable
24
Pop Rivet 3/16"
293150039
$1.49
25
FRONT STRAP - Call your local BRP dealership
204071842
Unavailable
26
Bimini Top Boot
204072690
Unavailable
27
CAUTION LABEL, BIMINI TOP - Call your local BRP dealership
204901331
Unavailable
