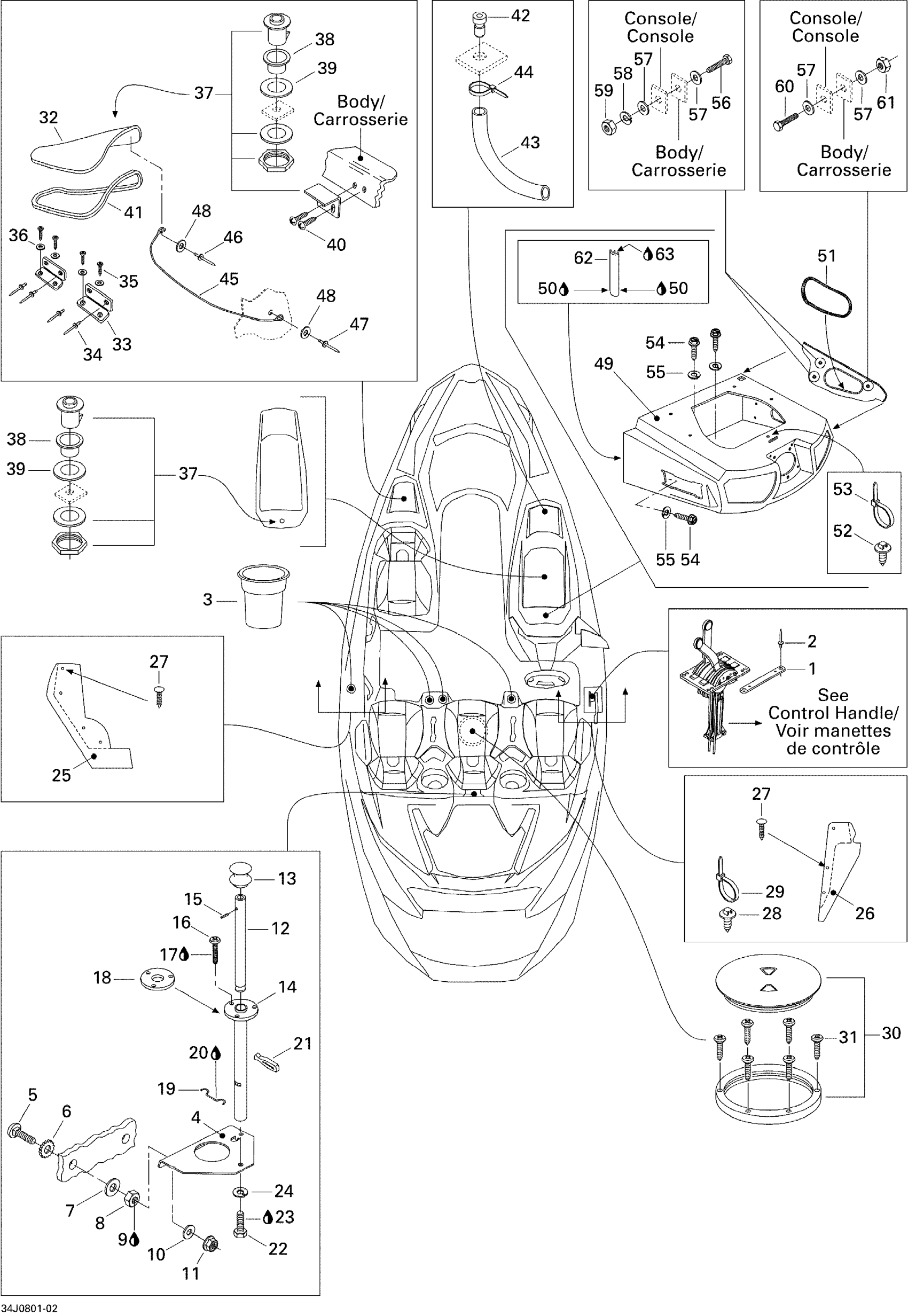

Sea-doo 150 Speedster 215, 2008 Body And Accessories Diagram

#

Description
Price

1

SHIFTER INSERT - Call your local BRP dealership

293450061

Unavailable

2

Pop Rivet 3/16"

293150013

$1.11

3

CUP HOLDER - Call your local BRP dealership | STD

291000619

Unavailable

4

FIXATION PLATE - Call your local BRP dealership

204071140

Unavailable

5

Elevator Bolt

204000130

Unavailable

6

EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership

211200054

Unavailable

7

Flat Washer M6, Stainless

234062600

$0.64

8

HEX. NUT 1/4 - Call your local BRP dealership

211100026

Unavailable

9

Loctite 271, 10 ml

293800005

$20.77

10

Flat Washer M6, Stainless

234062600

$0.64

11

NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership

212000005

Unavailable

12

SKI SHAFT - Call your local BRP dealership

204071624

Unavailable

13

SKI SHAFT CAP - Call your local BRP dealership

293000004

Unavailable

14

FIXED TUBE - Call your local BRP dealership

204071495

Unavailable

15

ROLLED PIN M3 X 30 - Call your local BRP dealership

211400004

Unavailable

16

PHILLIPS SCREW M6 X 40 - Call your local BRP dealership

208564060

Unavailable

17

Loctite 243, 10 ml

293800060

$20.77

18

RUBBER WASHER - Call your local BRP dealership

293830045

Unavailable

19

SPRING - Call your local BRP dealership

291001205

Unavailable

20

Synthetic Grease, 400 G

293550010

Unavailable

21

Windshield Latch

570023800

$3.58

22

Hex. Screw M8 X 18

207181860

$1.43

23

Loctite 243, 10 ml

293800060

$20.77

24

Lock Washer 8 mm, Stainless

234181601

$0.46

25

Not Available As Spare Part - Friction Washer

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Black Dart

293730014

$0.81

28

Mount Dart

293730040

$0.86

29

Tie-Rap 180 mm

414115200

$0.09

30

DECK PLATE 8 - Call your local BRP dealership

204073192

Unavailable

31

PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership

209941960

Unavailable

32

STORAGE DOOR, PORT SIDE, YELLOW - Call your local BRP dealership | Yellow Model

204073023

Unavailable

32

STORAGE DOOR, PORT SIDE, RED - Call your local BRP dealership | Red Model

204072639

Unavailable

33

Hinge

269700031

$7.80

34

RIVET_POP 5/32 - Call your local BRP dealership

293150029

Unavailable

35

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

36

Flat Washer 4 mm

234040600

$0.46

37

LATCHES KIT, 2 SUB-ASSEMBLIES - Call your local BRP dealership

204071753

Unavailable

38

LATCH INSERT - Call your local BRP dealership

204620007

Unavailable

39

COMPENSATION GASKET - Call your local BRP dealership

204620045

Unavailable

40

SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership

209631360

Unavailable

41

Seal Tray 1000Mm Long

219704368

$12.30

42

DRAIN FITTING - Call your local BRP dealership

204071783

Unavailable

43

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

44

Tie Wrap 94 mm | 4X4

293750001

$0.83

45

RETAINER CABLE - Call your local BRP dealership

204000117

Unavailable

46

POP RIVET 3/16 - Call your local BRP dealership

204130050

Unavailable

47

Pop Rivet 3/16"

293150039

$1.31

48

Flat Washer 5 mm, Stainless

234052600

$0.64

49

CONSOLE ASS'Y - Call your local BRP dealership

204073119

Unavailable

50

Silicone Sealant 51388, 300 ml

296000309

$35.72

51

SLIT CONDUIT, METER - Call your local BRP dealership

204550028

Unavailable

52

Mount Dart

293730040

$0.86

53

Tie-Rap 180 mm

414115200

$0.09

54

Self Drill Screw L( Hex Washer Head ) - Call your local BRP dealership

204050138

Unavailable

55

Lock Washer 1/4”

211200025

$1.04

56

Hex. Screw M6 X 45

207164560

$1.51

57

Flat Washer M6, Stainless

234062600

$0.64

58

Lock Washer Helical M6

234161601

$0.92

59

Hex. Nut M6

232061600

$0.91

60

Hex. Screw M6 X 35

207163560

$1.17

61

Hex. Elastic Stop Nut M6

232561600

$0.92

62

TRIM, WHITE - Call your local BRP dealership

204050042

Unavailable

63

Était Was 413705800 Loctite 414 , 29.5 c.c

219704463

Unavailable
