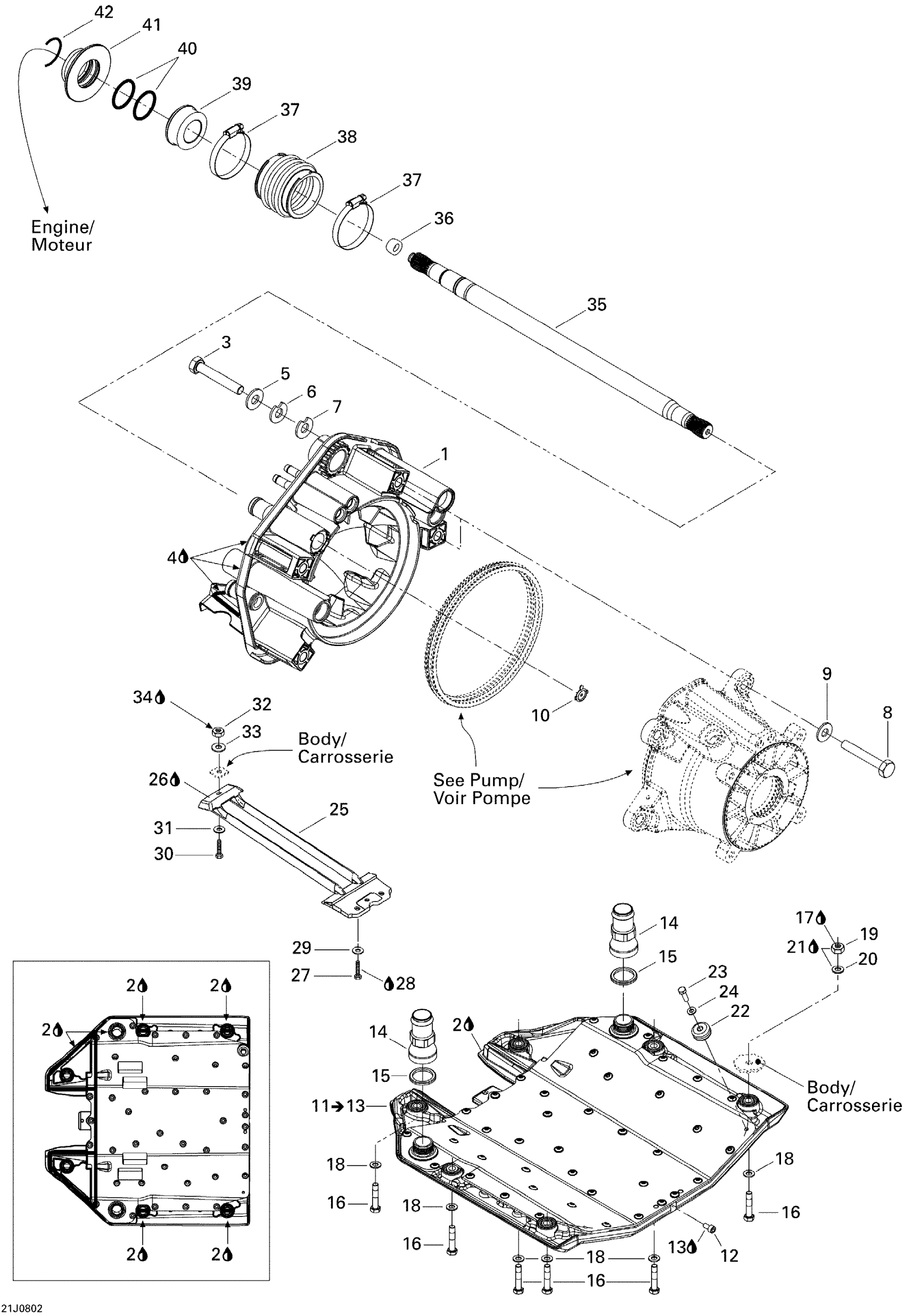

Sea-doo 150 Speedster 215, 2008 Propulsion Diagram

#

Description
Price

1

PUMP SUPPORT - Call your local BRP dealership

204120315

Unavailable

2

Instant Gasket

219701421

$51.99

3

HEX. SCREW M10 X 45, SCOTCH GRIP - Call your local BRP dealership

250000189

Unavailable

4

Silicone Sealant 51388, 300 ml

296000309

$36.99

5

Flat Washer 10 mm, Stainless

234002600

$2.22

6

Shim 0.3 mm

272000053

$11.49

7

NEEDS DESCRIPTION This part replaces 204120067.

0460011

$10.49

8

HEX. SCREW M10 X 50, SCOTCH GRIP - Call your local BRP dealership

250000188

Unavailable

9

Flat Washer

211200051

$1.68

10

Reducer This part replaces 291001887.

291004649

$17.49

11

Riding Plate Ass'y | Includes 10 to 12

271001649

$275.49

12

Socket Drain Plug M6 X 12

250500005

$16.49

13

Was 293800013 Loctite 56765

219704454

$65.99

14

Straight Plastic Fitting

293710111

$8.47

15

O-Ring

293300121

$8.32

16

Hex. Screw M8 X 40

207084060

$2.22

17

Loctite 243, 10 ml

293800060

$21.49

18

Stainless, Flat Washer 8 mm

234081600

$0.55

19

Hex. Elastic Nut M8

232581600

$1.48

20

Flat Washer 8 mm, Stainless

234082600

$2.43

21

Silicone Sealant 51388, 300 ml

296000309

$36.99

22

Anode Zinc

271001813

$18.99

23

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

24

Stainless Flat Washer M6

234061600

$0.33

25

Pump Grate

204120294

Unavailable

26

Instant Gasket

219701421

$51.99

27

Hex. Screw M6 X 16

207161660

$1.59

28

Loctite 271, 10 ml

293800005

$26.99

29

Stainless Flat Washer M6

234061600

$0.33

30

Hex. Screw M8 X 40

207184060

$2.22

31

Stainless, Flat Washer 8 mm

234081600

$0.55

32

Hex. Elastic Nut M8

232581600

$1.48

33

Stainless, Flat Washer 8 mm

234081600

$0.55

34

Silicone Sealant 51388, 300 ml

296000309

$36.99

35

Drive Shaft

204120309

$476.99

36

Drive Shaft Plug

272000173

$8.68

37

Norma Clamp

293650077

$7.41

38

Bellows

272000183

$28.99

39

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

40

O-Ring

293300044

$1.05

41

Carbon Ring Kit This part replaces 272000177.

295501200

$77.99

42

C-Clip

271001575

$6.11
