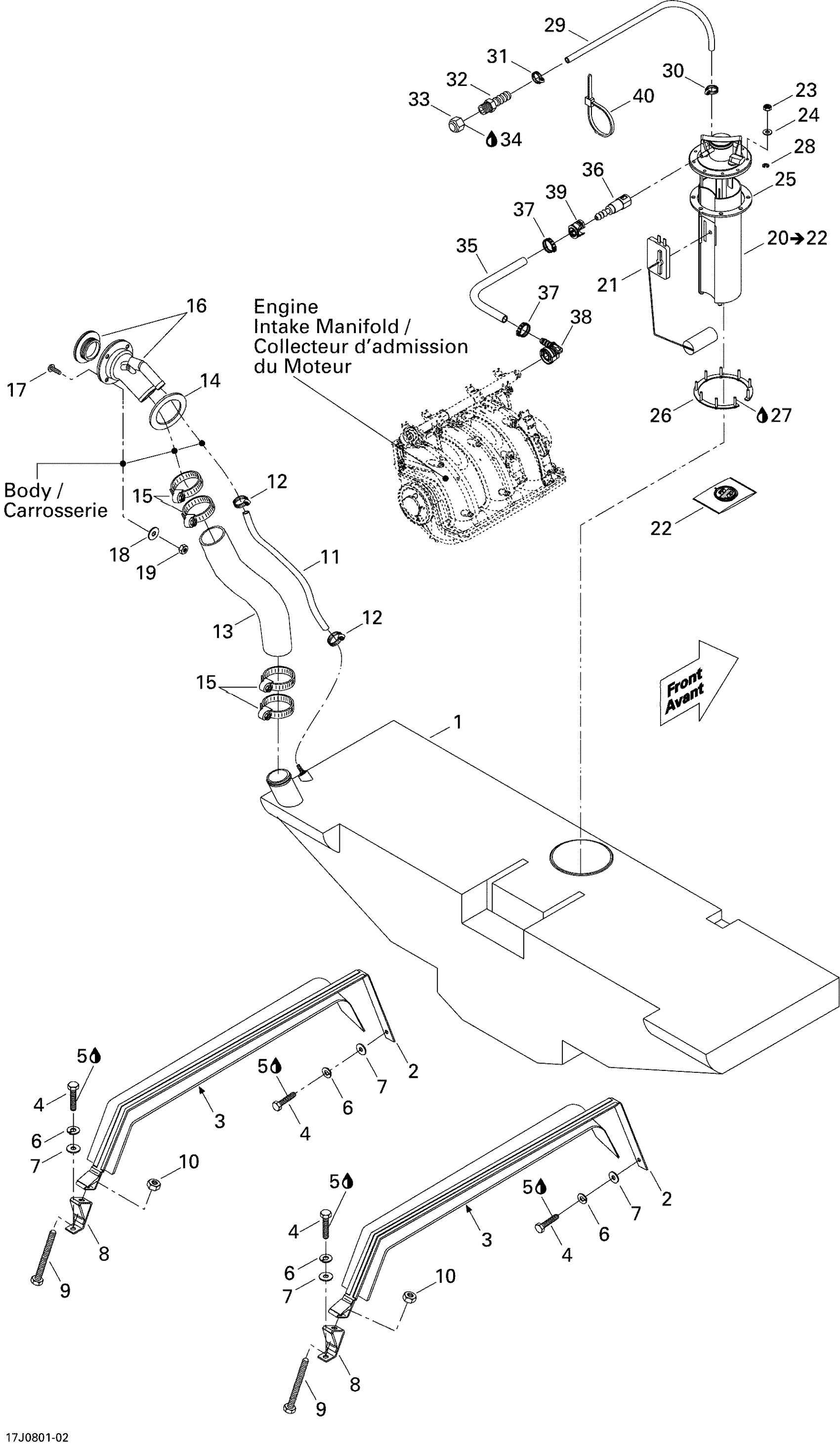

Sea-doo 150 Speedster 215, 2008 02- Fuel System Diagram
#
1
FUEL TANK ASS'Y - Call your local BRP dealership | Includes 1a to 1e
275500814
Unavailable
2
FUEL TANK STRAP - Call your local BRP dealership
204560181
Unavailable
3
PROTECTOR PAD - Call your local BRP dealership
204560185
Unavailable
4
Hex. Screw M8 X 30
207183060
$1.58
5
Loctite 271, 10 ml
293800005
$26.99
6
Lock Washer 8 mm, Stainless
234181601
$0.55
7
Flat Washer 8 mm, Stainless
234082600
$2.43
8
TANK BRACKET - Call your local BRP dealership
275500252
Unavailable
9
HEX. SCREW M8 X 35 - Call your local BRP dealership
207183560
Unavailable
10
Hex. Elastic Nut M8
232581600
$1.48
11
HOSE 16 MM - Call your local BRP dealership
204560358
Unavailable
12
NORMA CLAMP - Call your local BRP dealership
293650069
Unavailable
13
FILLER NECK HOSE - Call your local BRP dealership
204560377
Unavailable
14
SPACER - Call your local BRP dealership This part replaces 275500801.
204560188
Unavailable
15
NORMA CLAMP - Call your local BRP dealership
293650174
Unavailable
16
Fuel Filler Neck Ass'y
204560253
Unavailable
17
Phillips Screw M4 X 35
208643560
Unavailable
18
Flat Washer 4 mm
234040600
$0.55
19
Elastic Stop Nut M4
232541600
$1.15
20
FUEL PUMP MODULE ASS'Y - Call your local BRP dealership | Includes 23 to 25
204560418
Unavailable
21
SENSOR LEVER - Call your local BRP dealership
270600051
Unavailable
22
Fuel Filter, Bosch
219700368
$39.99
23
Elastic Stop Nut 5 mm
232551200
$1.47
24
Flat Washer 5 mm, Stainless
234052400
$2.85
25
Gasket
293250088
$14.99
26
C-Ring, 9 Studs
275500679
$77.49
27
Était/Was 293800038 Loctite 518, 50 ml
219704456
$53.99
28
Circlip 5 mm
293370002
$5.50
29
HOSE 1/4 - Call your local BRP dealership
204560178
Unavailable
30
Tridon Gear Clamp
293650170
$1.99
31
NORMA CLAMP - Call your local BRP dealership
293650121
Unavailable
32
COUPLER - Call your local BRP dealership
204560265
Unavailable
33
Pipe Cap
204560263
Unavailable
34
Was 293800013 Loctite 56765
219704454
$65.99
35
HOSE 5/16 - Call your local BRP dealership
204560396
Unavailable
36
CONNECTOR BOX - Call your local BRP dealership
275500428
Unavailable
37
Torro Hose Clamp
204130212
Unavailable
38
Elbow Fitting 90°
293710105
$14.22
39
STOPPER CONNECTOR - Call your local BRP dealership
275500429
Unavailable
40
Tie-Rap 173 mm
293750009
$1.04
