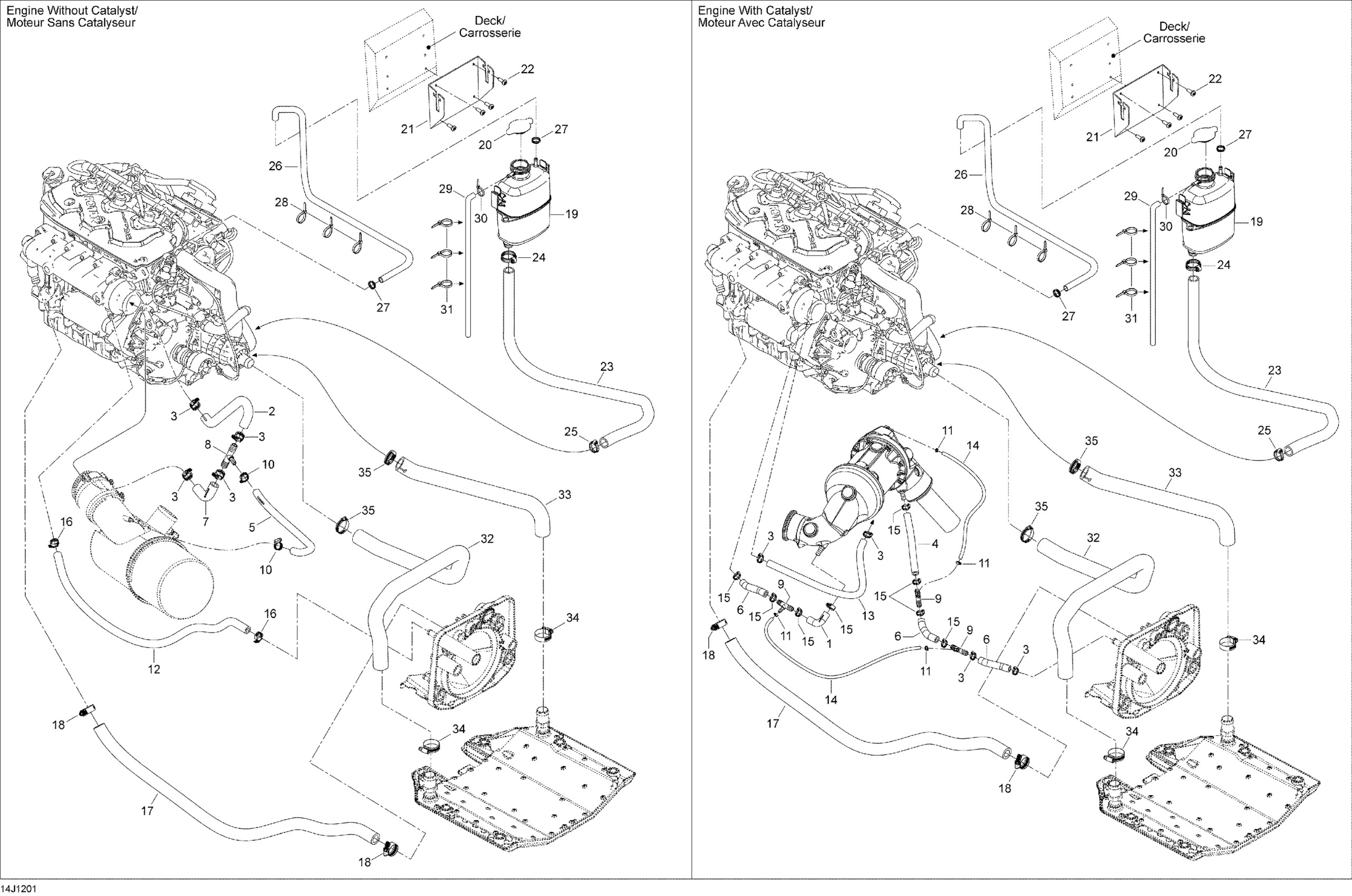

Sea-doo 150 Speedster 155, 2012 Cooling System Diagram

#

Description
Price

1

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

2

Hose, Bypass Upper | Without Catalyst This part replaces 276000244.

276000484

$19.49

3

Tridon Gear Clamp

293650172

$3.09

4

Was 276000001 Hose 12.5 mm

219704394

$51.99

5

Formed Hose | Without Catalyst

276000246

$19.49

6

Was 276000001 Hose 12.5 mm

219704394

$51.99

7

Hose, Bypass Lower | With Catalyst This part replaces 276000137.

276000455

$19.49

8

T-Fitting

293710116

$17.62

9

T-Fitting

293710116

$17.62

10

Tridon Gear Clamp

293650171

$3.09

11

Tridon Gear Clamp

293650171

$3.09

12

Was 276000001 Hose 12.5 mm

219704394

$51.99

13

Was 276000001 Hose 12.5 mm

219704394

$51.99

14

Was 275500549 Hose 1/4"

219704357

$194.99

15

Tridon Gear Clamp

293650172

$3.09

16

Tridon Gear Clamp

293650172

$3.09

17

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

18

Tridon Gear Clamp

293650051

$4.19

19

Coolant Tank

276000086

$109.99

20

Pressure Cap | Includes 720 to 720a

276000100

$25.99

21

COOLANT TANK BRACKET - Call your local BRP dealership

276000287

Unavailable

22

SCREW-PAN HD.#10 X 5/8 SS - Call your local BRP dealership

204100073

Unavailable

23

Hose 19.0Mm. 2000Mm Long

219704361

$48.99

24

Tridon Gear Clamp

293650051

$4.19

25

Tridon Gear Clamp

293650019

$5.82

26

Was 275500549 Hose 1/4"

219704357

$194.99

27

Oetiker Gear Clamp

293650025

$3.09

28

Tie Wrap 142 mm

293750002

$1.25

29

Polyurethane Hose 10000Mm Long

219704410

$56.99

30

Tie Wrap 94 mm | 4X4

293750001

$1.03

31

Tie Wrap 142 mm

293750002

$1.25

32

LH RADIATOR HOSE - Call your local BRP dealership

276000250

Unavailable

33

RH Radiator Hose

276000248

$58.99

34

Tridon Gear Clamp

293650045

$5.69

35

Tridon Gear Clamp

293650045

$5.69
