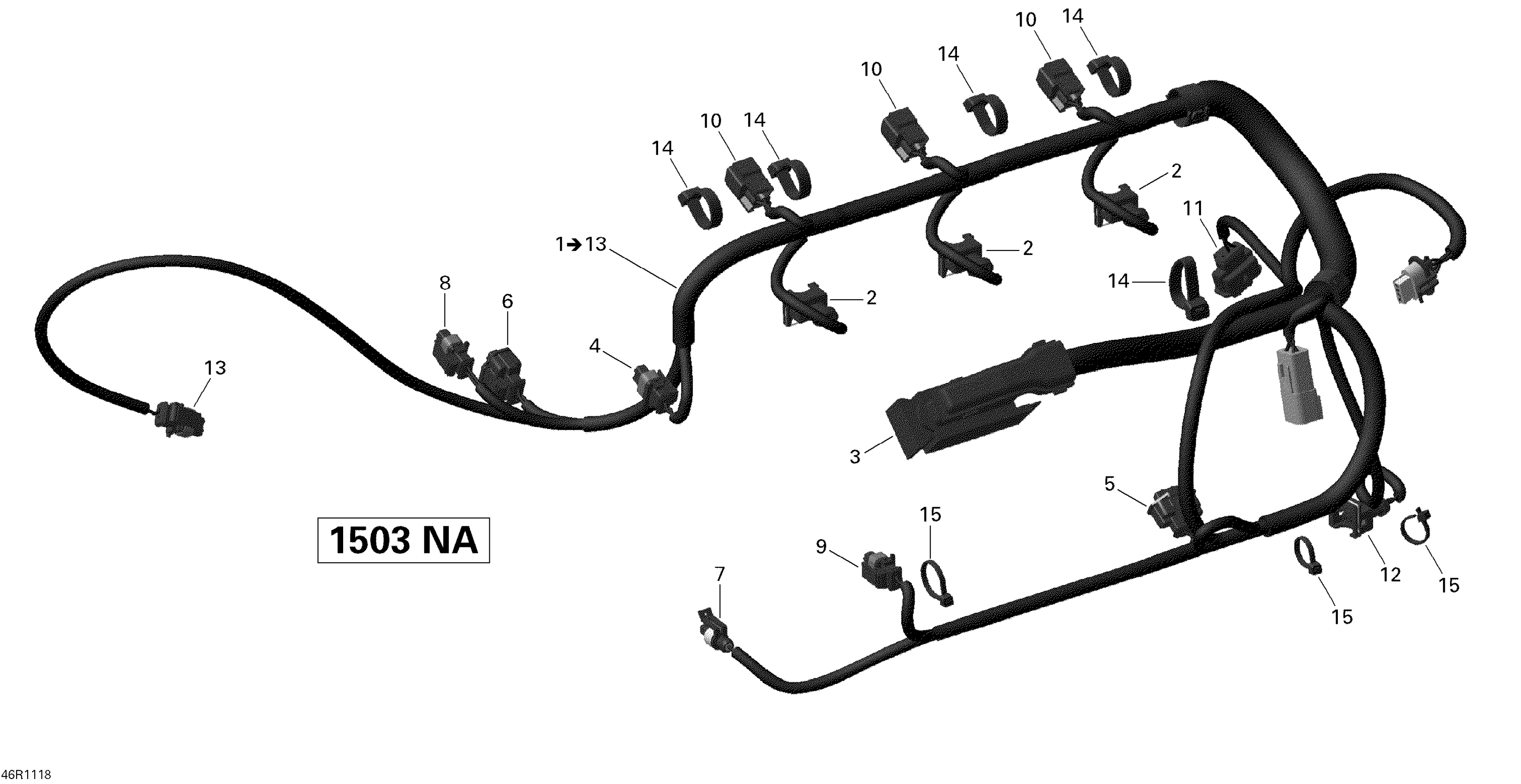

Sea-doo 150 Speedster 155, 2011 Engine Harness Diagram

#

Description
Price

1

ENGINE WIRING HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 13

420665205

Unavailable

2

MALE HOUSING, 2 CIRCUITS, AMP - Call your local BRP dealership

415128566

Unavailable

3

ECM Connector

420664450

$27.49

4

Male Housing, 2 Circuits

278001005

$19.49

5

Housing Connector, 3 Circuits

278001829

$21.99

6

Housing Connector, 3 Circuits

278001830

$35.99

7

Male Housing, 1 Circuit

278001012

$16.86

8

Male Housing, 2 Circuits

278001005

$19.49

9

Male Housing, 2 Circuits

278001005

$19.49

10

CONNECTOR 3 POSITIONS - Call your local BRP dealership

420964100

Unavailable

11

Housing Connector, 3 Circuits

278001829

$21.99

12

MALE HOUSING, 2 CIRCUITS, AMP - Call your local BRP dealership

415128566

Unavailable

13

Male Housing, 2 Circuits

278001005

$19.49

14

Tie-Rap

420866716

$1.90

15

Tie Rap

420866714

$1.90
