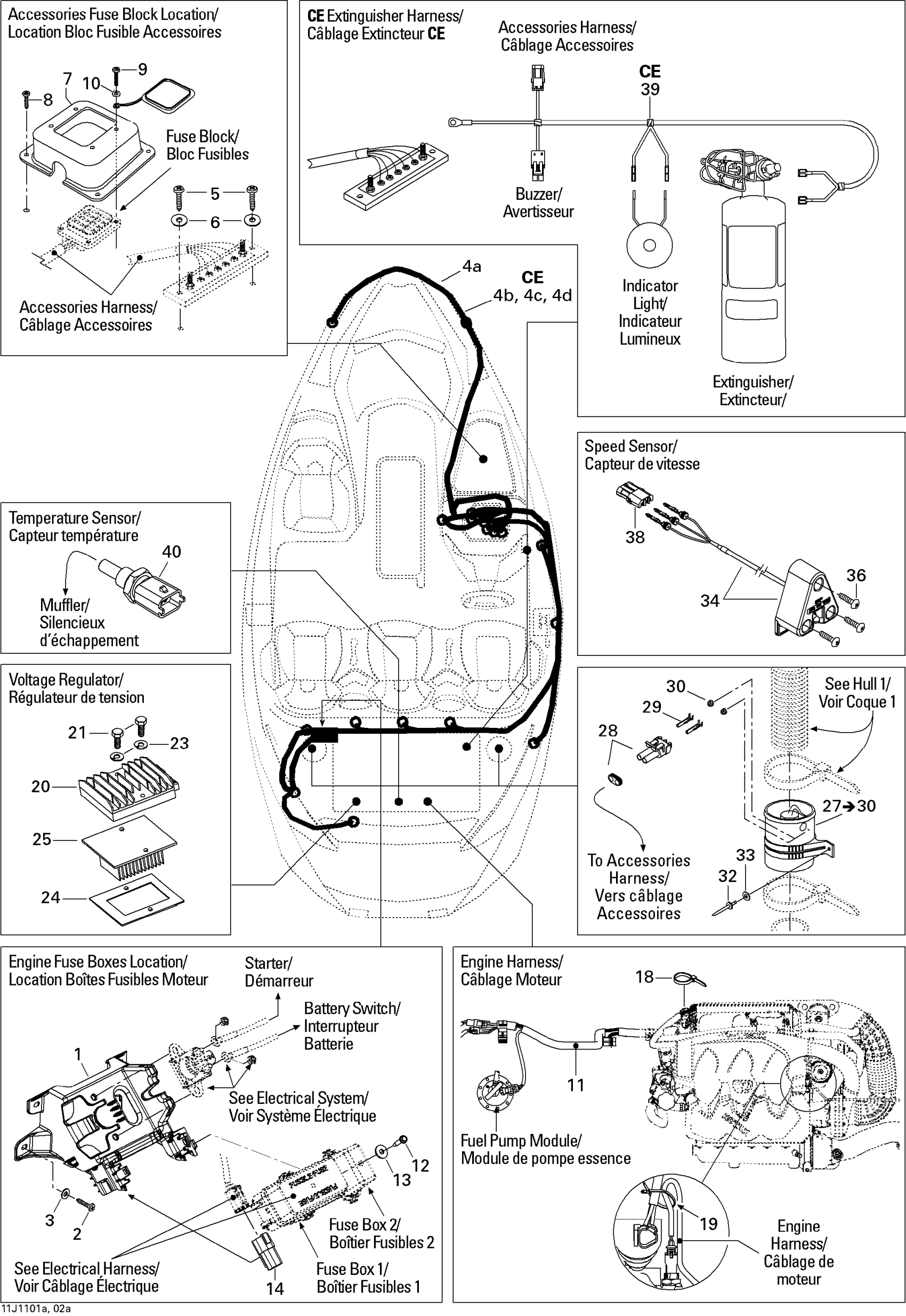

Sea-doo 150 Speedster 155, 2011 Electrical Accessories 1 Diagram

#

Description
Price

1

MODULE SUPPORT - Call your local BRP dealership

278002699

Unavailable

2

TAPPING PHILLIPS SCREW #12 X 3/4 - Call your local BRP dealership

204100203

Unavailable

3

Flat Washer M6, Stainless

234062600

$0.77

4a

Accessories Harness | North America

204471343

Unavailable

4b

HARNESS - ACC./REWORK - Call your local BRP dealership | Includes 4b to 4d, Europe

278002632

Unavailable

4c

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

4d

Fuse Block Label | Europe

278002633

Unavailable

5

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

6

Flat Washer 4 mm, Stainless

234041600

$1.15

7

FUSE BLOCK SUPPORT - Call your local BRP dealership

204471274

Unavailable

8

TAPPING PHILLIPS SCREW M4.2 X 13 - Call your local BRP dealership

209641360

Unavailable

9

Pan Head Screw 10-32 X 1/2"

204100220

$2.51

10

Flat Washer 5 mm, Stainless

234052600

$0.77

11

ENGINE WIRING HARNESS - Call your local BRP dealership

204471289

Unavailable

12

Hex. Screw 10-14 X 7/8”

211000023

$3.59

13

Flat Washer 5 mm, Stainless

234052600

$0.77

14

Diagnostic Connector

278002704

$19.49

18

Tie-Rap 180 mm

414115200

$0.11

19

Tie Wrap 142 mm

293750002

$1.25

20

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

21

HEX. SCREW 1/4-20 X 1 - Call your local BRP dealership | Without Catalyst

204100226

Unavailable

23

Lock Washer 1/4”

211200025

$1.29

24

SEAL - Call your local BRP dealership

204471293

Unavailable

25

RECTIFIER HEAT SINK - Call your local BRP dealership

204471296

Unavailable

27

Fan Ass'y | Includes 44 to 47

204470108

$144.99

28

Male Connector, 2 Circuits

278000220

$15.49

29

Female Terminal

278000223

$3.19

30

Wire Seal

278000218

$4.39

32

Pop Rivet 3/16"

293150088

$0.99

33

Flat Washer 5 mm, Stainless

234052600

$0.77

34

Speed Sensor

278001993

$169.99

36

PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership

211000021

Unavailable

38

Female Terminal Housing, 3 Circuits | XT Models

278000281

$9.85

39

FIRE EXTINGUISHER HARNESS - Call your local BRP dealership | Europe

278002635

Unavailable

40

Temperature Sensor

278002895

$39.99
