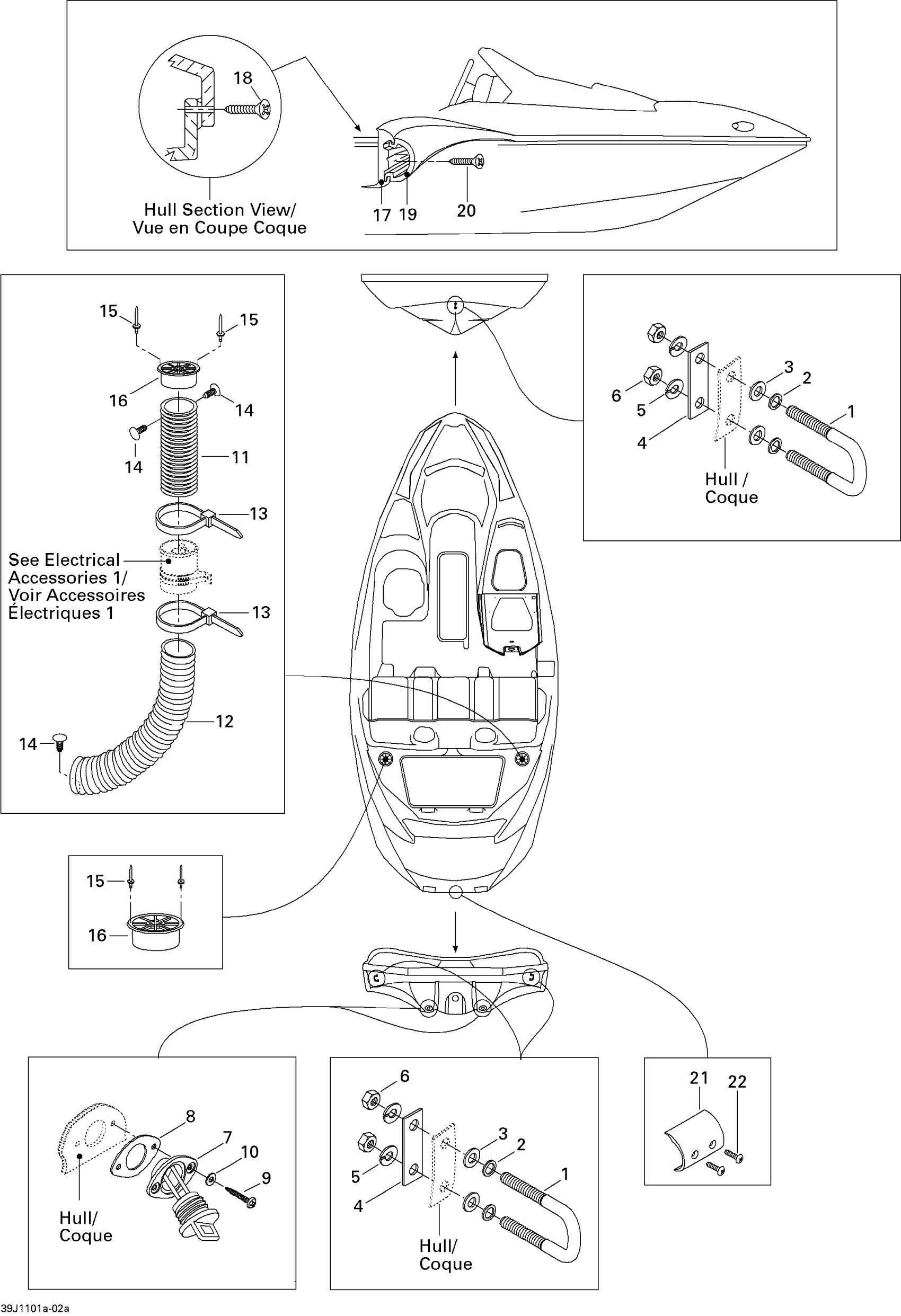

Sea-doo 150 Speedster 155, 2011 Hull 1 Diagram

#

Description
Price

1

U-Clamp

292000933

$59.49

2

Flat Washer M8.5 x 18

293050001

$3.07

3

FLAT WASHER, PLASTIC - Call your local BRP dealership

211200029

Unavailable

4

RETAINING PLATE - Call your local BRP dealership

291000307

Unavailable

5

Lock Washer 8 mm, Stainless

234181601

$0.55

6

Hex. Nut M8

232081600

$1.47

7

Drain Plug

292000187

$14.49

8

GASKET - Call your local BRP dealership

293250030

Unavailable

9

PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership

209642560

Unavailable

10

Flat Washer 4 mm, Stainless

234041600

$1.15

11

Was 204050122 Vent Hose 4"

219704358

$25.99

12

Was 204050122 Vent Hose 4"

219704358

$25.99

13

Tie Rap, 533 mm

293750047

$2.09

14

Black, Dart

293730006

$0.99

15

RIVET_POP 1/8 X ,750 - Call your local BRP dealership

293150036

Unavailable

16

VENT - 4 OPEN / WHT. - Call your local BRP dealership This part replaces 204050533.

204050803

Unavailable

17

BUMPER, BLACK - Call your local BRP dealership

262000198

Unavailable

18

PHILLIPS TAPPING SCREW #8 X 1 - Call your local BRP dealership

204100049

Unavailable

19

RUBRAIL INSERT 50FT - Call your local BRP dealership

204061394

Unavailable

20

Phillips Tapping Screw M4.2 X 32

209943260

$1.47

21

BUMPER COVER, BLACK - Call your local BRP dealership

204050780

Unavailable

22

Phillips Tapping Screw M4.2 X 32

209943260

$1.47
