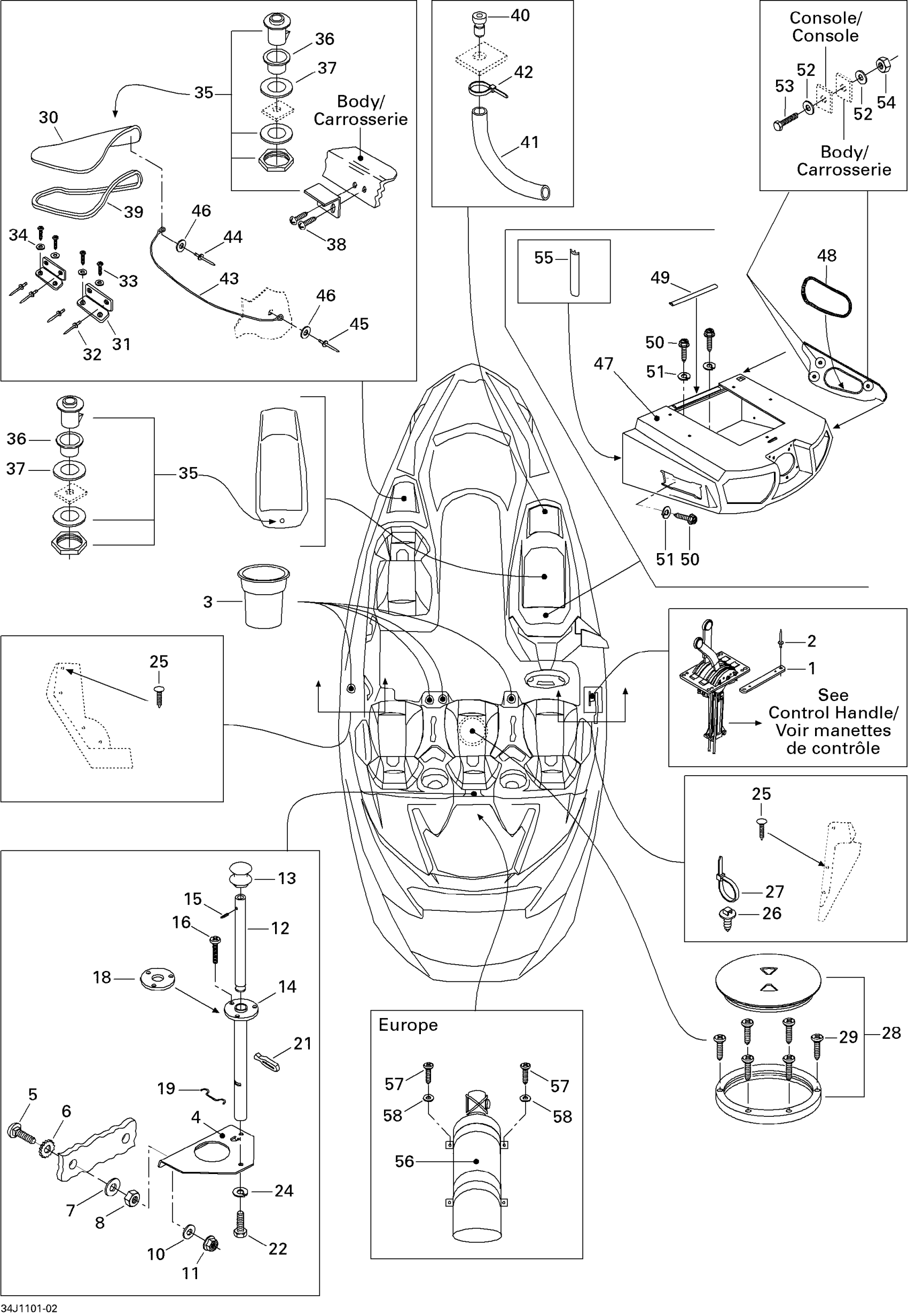

Sea-doo 150 Speedster 155, 2011 09- Body And Accessories Diagram
#
1
SHIFTER INSERT - Call your local BRP dealership
293450061
Unavailable
2
Pop Rivet 3/16"
293150013
$1.37
3
CUP HOLDER - Call your local BRP dealership | STD
291000619
Unavailable
4
FIXATION PLATE - Call your local BRP dealership
204071140
Unavailable
5
Elevator Bolt
204000130
Unavailable
6
EXTERNAL TOOTH LOCK WASHER 10 MM - Call your local BRP dealership
211200054
Unavailable
7
Flat Washer M6, Stainless
234062600
$0.77
8
HEX. NUT 1/4 - Call your local BRP dealership
211100026
Unavailable
10
Flat Washer M6, Stainless
234062600
$0.77
11
NUT-STOP ELASTIC MS-17830 - Call your local BRP dealership
212000005
Unavailable
12
SKI SHAFT - Call your local BRP dealership
204071624
Unavailable
13
SKI SHAFT CAP - Call your local BRP dealership
293000004
Unavailable
14
FIXED TUBE - Call your local BRP dealership
204071495
Unavailable
15
ROLLED PIN M3 X 30 - Call your local BRP dealership
211400004
Unavailable
16
PHILLIPS SCREW M6 X 40 - Call your local BRP dealership
208564060
Unavailable
18
RUBBER WASHER - Call your local BRP dealership
293830045
Unavailable
19
SPRING - Call your local BRP dealership
291001205
Unavailable
21
Windshield Latch
570023800
$4.49
22
Hex. Screw M8 X 18
207181860
$1.48
24
Lock Washer 8 mm, Stainless
234181601
$0.55
25
Black Dart
293730014
$0.99
26
Mount Dart
293730040
$1.04
27
Tie-Rap 180 mm
414115200
$0.11
28
DECK PLATE 8 - Call your local BRP dealership
204073192
Unavailable
29
PHILLIPS SCREW M4.2 X 19 - Call your local BRP dealership
209941960
Unavailable
30
STORAGE DOOR, PORT SIDE, RED - Call your local BRP dealership | Red Model
204072639
Unavailable
30
STORAGE DOOR, PORT SIDE, YELLOW - Call your local BRP dealership | Yellow Model
204073023
Unavailable
31
Hinge
269700031
$9.99
32
RIVET_POP 5/32 - Call your local BRP dealership
293150029
Unavailable
33
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
34
Flat Washer 4 mm
234040600
$0.55
35
LATCHES KIT, 2 SUB-ASSEMBLIES - Call your local BRP dealership
204071753
Unavailable
36
LATCH INSERT - Call your local BRP dealership
204620007
Unavailable
37
COMPENSATION GASKET - Call your local BRP dealership
204620045
Unavailable
38
SCREW-TAPP.PAN HD.PH.DIN.7981C-A2 - Call your local BRP dealership
209631360
Unavailable
39
Seal Tray 1000Mm Long
219704368
$13.99
40
DRAIN FITTING - Call your local BRP dealership
204071783
Unavailable
41
Polyurethane Hose, 8 Mm 3000Mm Long
219704412
$32.99
42
Tie Wrap 94 mm | 4X4
293750001
$1.03
43
RETAINER CABLE - Call your local BRP dealership
204000117
Unavailable
44
POP RIVET 3/16 - Call your local BRP dealership
204130050
Unavailable
45
Pop Rivet 3/16"
293150039
$1.49
46
Flat Washer 5 mm, Stainless
234052600
$0.77
47
CONSOLE ASS'Y - Call your local BRP dealership
291003240
Unavailable
48
SLIT CONDUIT, METER - Call your local BRP dealership
204550028
Unavailable
49
TRAY SEAL, METER - Call your local BRP dealership
293200032
Unavailable
50
Self Drill Screw L( Hex Washer Head ) - Call your local BRP dealership
204050138
Unavailable
51
Lock Washer 1/4”
211200025
$1.29
52
Flat Washer M6, Stainless
234062600
$0.77
53
Hex. Screw M6 X 35
207163560
$1.49
54
Hex. Elastic Stop Nut M6
232561600
$1.15
55
TRIM, WHITE - Call your local BRP dealership
204050042
Unavailable
56
Not Available As Spare Parts
XXX
Unavailable
57
Not Available As Spare Parts
XXX
Unavailable
58
Not Available As Spare Parts
XXX
Unavailable
