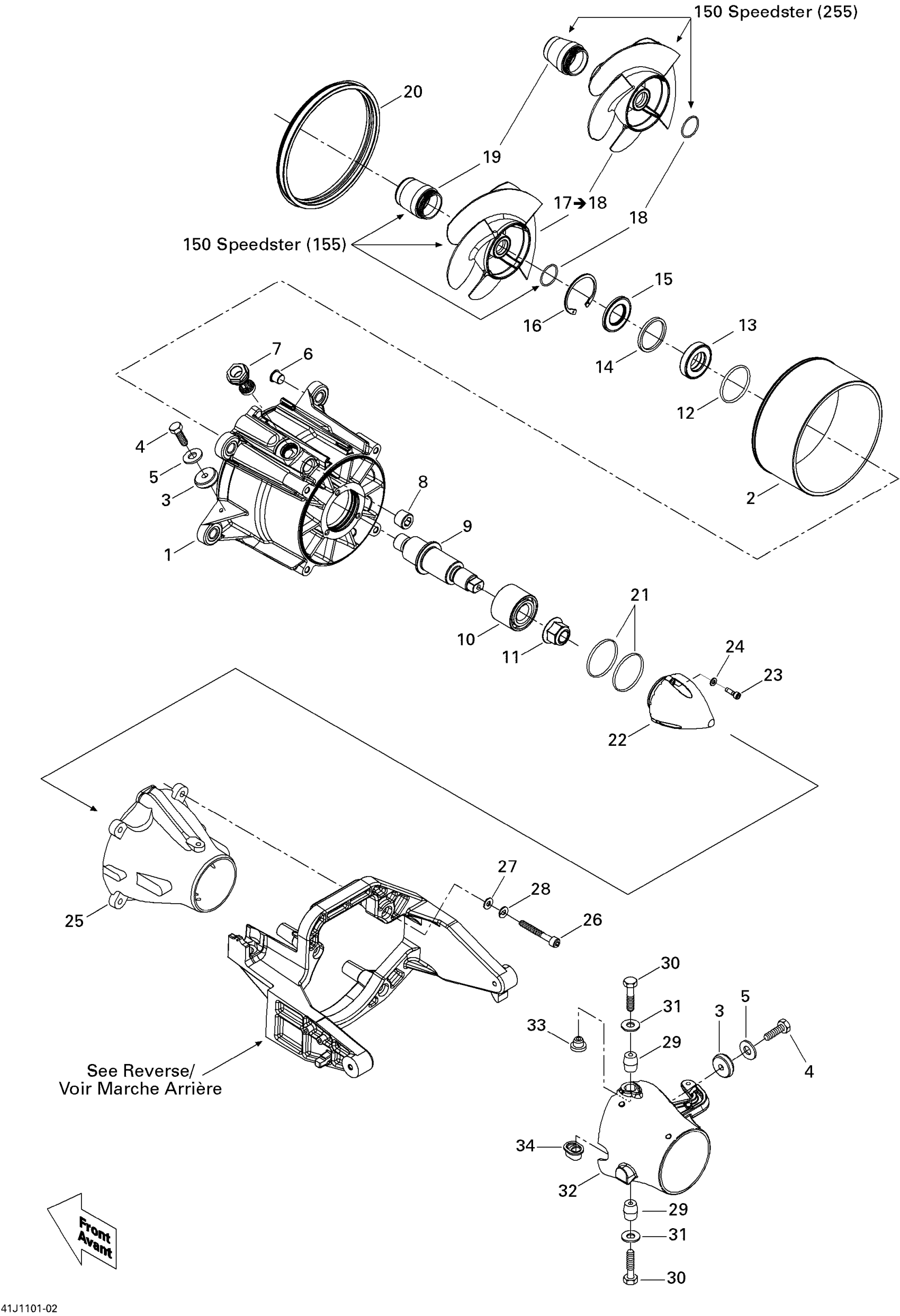

Sea-doo 150 Speedster 155, 2011 Pump Diagram

#

Description
Price

1

Housing Impeller Anodized This part replaces 267000417.

271002161

$329.99

2

Wear Ring

267000419

$84.99

3

Anode Zinc

271001813

$18.99

4

Hex. Screw M6 X 20, Scotch Grip

207362060

$1.47

5

Stainless Flat Washer M6

234061600

$0.33

6

Bushing

267000093

$9.59

7

Plug | Includes 370z to 370z1

267000282

$19.49

8

Black, Plastic Plug

267000469

$7.59

9

Impeller Shaft

267000388

$116.49

10

Angled Bearing This part replaces 267000030.

267000900

$80.99

11

Elastic Flange Nut M20

250100104

$12.66

12

O-Ring

293300090

$7.20

13

Seal

271002071

$33.99

14

Spacer

271001393

$8.59

15

Oil Seal

293200089

$19.99

16

Circlip

293370038

$8.79

17

Impeller Ass'y | Includes 17 to 18 This part replaces 267000639.

267000968

$391.99

18

O-Ring

293300114

$15.89

19

Guard

271002225

$11.99

20

Neoprene Seal

293200087

$12.63

21

O-Ring

293300086

$3.59

22

Impeller Cover

267000428

$18.49

23

Socket Head Screw M6 X 25, Scotch Grip

205562560

$2.11

24

Stainless Flat Washer M6

234061600

$0.33

25

Black, Venturi - Call your local BRP dealership

204160302

Unavailable

26

Socket Head Screw M8 X 100, Scotch Grip

250000464

$7.51

27

Flat Washer M8.5 x 18

293050001

$3.07

28

Lock Washer 8 mm, Stainless

234181601

$0.55

29

Sleeve

271001816

$14.99

30

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

31

Flat Washer M8.5 x 18

293050001

$3.07

32

STEERING NOZZLE, BLACK - Call your local BRP dealership This part replaces 271001784.

462125

Unavailable

33

Venturi Bushing

293900001

$7.62

34

Plastic Bushing

293900010

$9.59
