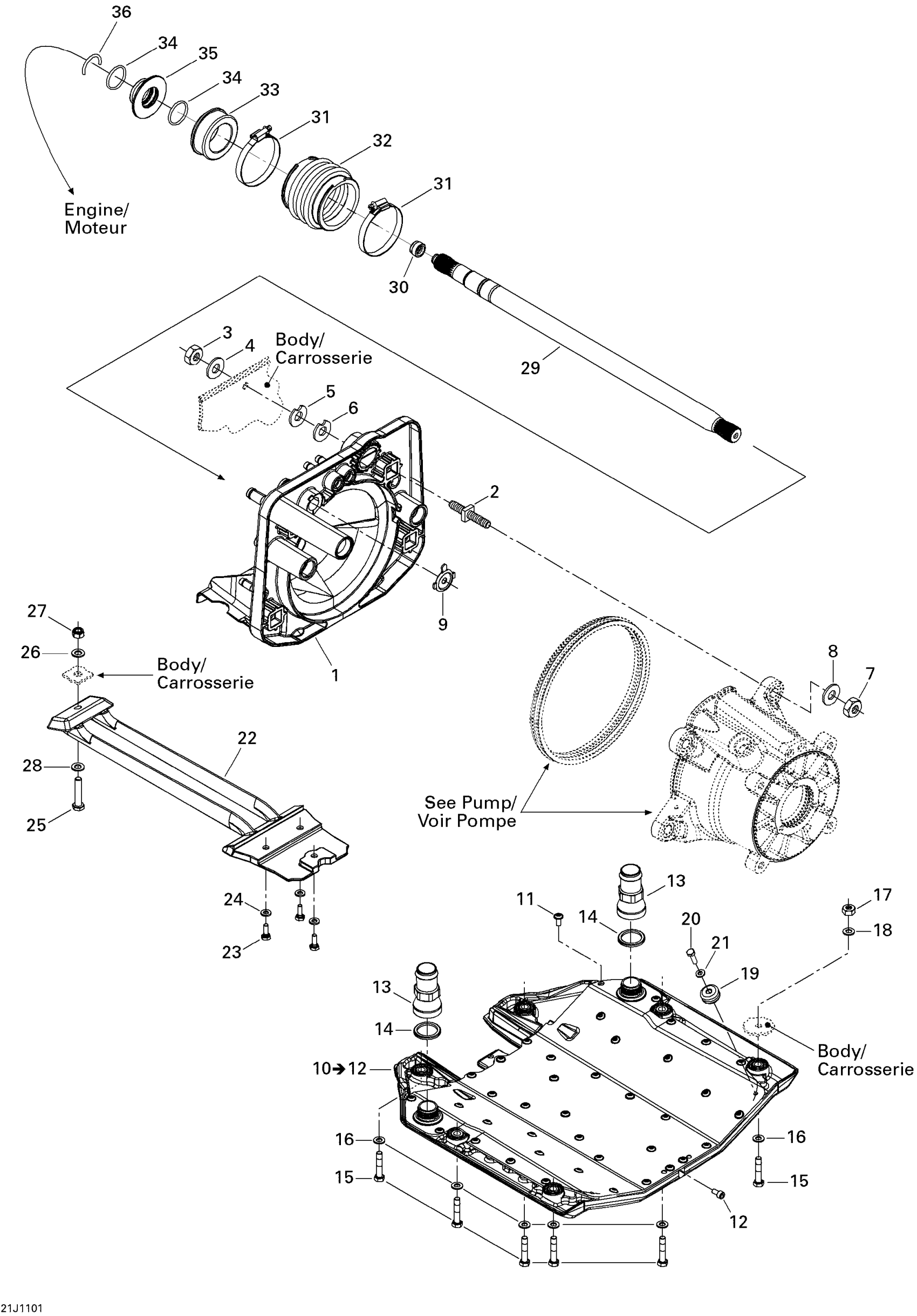

Sea-doo 150 Speedster 155, 2011 05- Propulsion Diagram
#
Description
Price
1
PUMP SUPPORT - Call your local BRP dealership
204120314
Unavailable
2
Square Stud
250300022
$20.99
3
Elastic Stop Nut M10, Brass
232501200
$2.64
4
Flat Washer 10 mm, Stainless
234002600
$2.22
5
Shim 0.3 mm
272000053
$11.49
6
NEEDS DESCRIPTION This part replaces 204120067.
0460011
$10.49
7
Elastic Stop Nut M10, Brass
232501200
$2.64
8
Flat Washer
211200051
$1.68
9
Reducer This part replaces 291001887.
291004649
$17.49
10
Riding Plate Ass'y | Includes 10 to 12
271001649
$275.49
11
Torx Button Head Screw M6 X 14
250000064
$6.66
12
Socket Drain Plug M6 X 12
250500005
$16.49
13
Straight Plastic Fitting
293710111
$8.47
14
O-Ring
293300121
$8.32
15
Hex. Screw M8 X 40
207084060
$2.22
16
Stainless, Flat Washer 8 mm
234081600
$0.55
17
Hex. Elastic Nut M8
232581600
$1.48
18
Flat Washer 8 mm, Stainless
234082600
$2.43
19
Anode Zinc
271001813
$18.99
20
Hex. Screw M6 X 20, Scotch Grip
207362060
$1.47
21
Stainless Flat Washer M6
234061600
$0.33
22
PUMP GRATE - Call your local BRP dealership
271001561
Unavailable
23
Hex. Screw M6 X 16
207161660
$1.59
24
Stainless Flat Washer M6
234061600
$0.33
25
Hex. Screw M8 X 40
207184060
$2.22
26
Stainless, Flat Washer 8 mm
234081600
$0.55
27
Hex. Elastic Nut M8
232581600
$1.48
28
Stainless, Flat Washer 8 mm
234081600
$0.55
29
Drive Shaft This part replaces 271001534.
271001724
$328.49
30
Drive Shaft Plug
272000173
$8.68
31
Norma Clamp
293650077
$7.41
32
Bellows
272000183
$28.99
33
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
34
O-Ring
293300044
$1.05
35
Carbon Ring Kit This part replaces 272000177.
295501200
$77.99
36
C-Clip
271001575
$6.11
