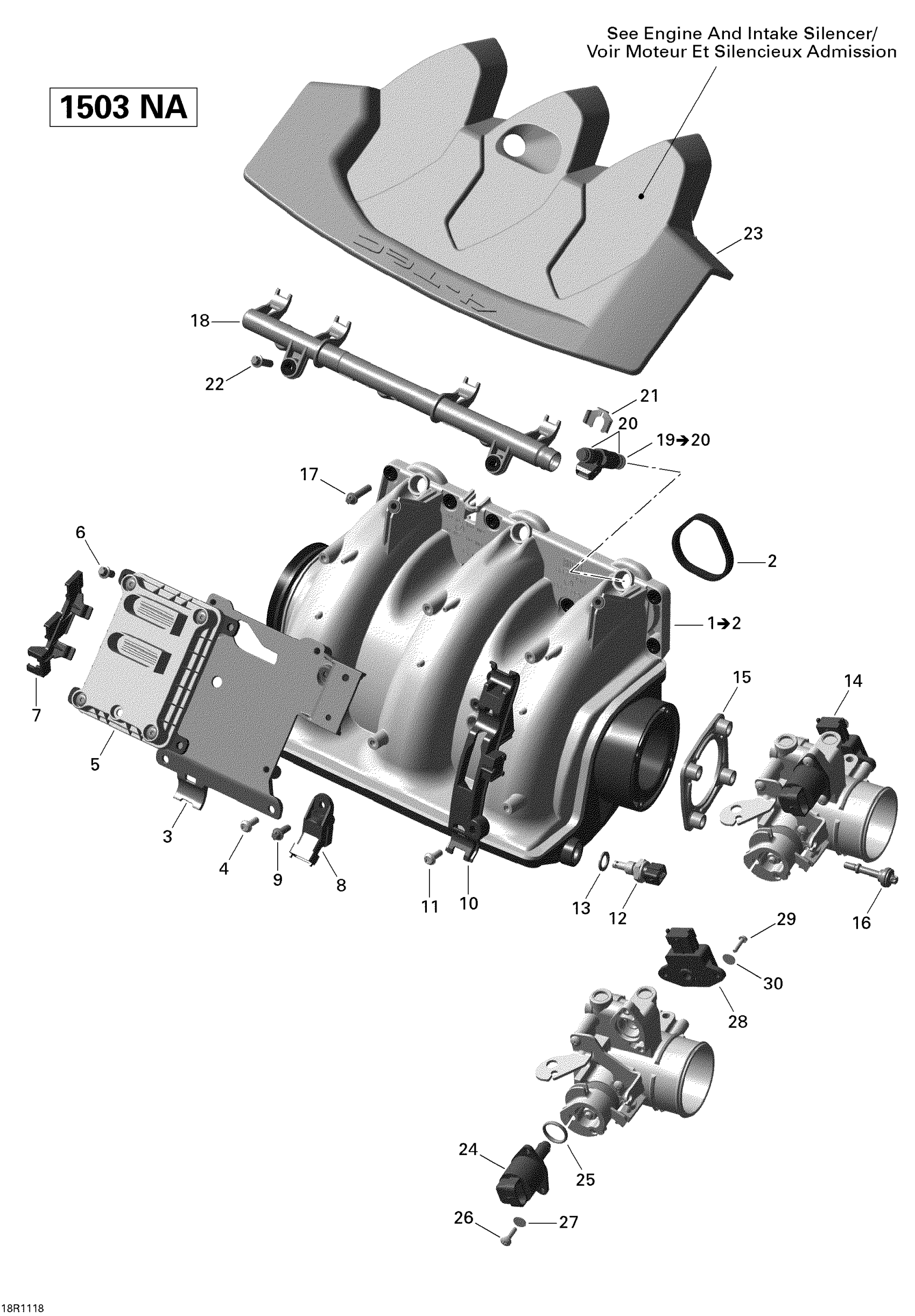

Sea-doo 150 Speedster 155, 2011 Air Intake Manifold And Throttle Body Diagram

#

Description
Price

1

Air Intake Manifold | Includes 1 to 2

420867921

$418.63

2

Gasket | Included in gasket kit

420950740

$3.61

3

BASE PLATE - Call your local BRP dealership

420851521

Unavailable

4

Torx Flange Screw M6 X 16

420641048

$2.46

5

ELECTRONIC BOX - Call your local BRP dealership

420664137

Unavailable

6

Torx Flange Screw M6 X 16

420641588

$1.74

7

CONNECTOR BRACKET - Call your local BRP dealership

420660402

Unavailable

8

Pressure Sensor

270600040

$157.92

9

Torx Flange Screw M6 X 16

420641048

$2.46

10

WIRING SUPPORT - Call your local BRP dealership

420660410

Unavailable

11

Torx Flange Screw M6 X 16

420641588

$1.74

12

Temperature Sensor This part replaces 420222423.

420222421

$31.82

13

Aluminum Sealing Ring

420250016

$4.41

14

Throttle Body

420892452

$748.12

15

Rubber Gasket

420950792

$8.89

16

Allen Screw M6 x 30,5

420440561

$3.67

17

Torx Flange Screw M6 X 25

420641238

$2.68

18

FUEL RAIL ASS'Y - Call your local BRP dealership

420874394

Unavailable

19

INJECTOR - Call your local BRP dealership | Includes 19 to 20

420874430

Unavailable

20

O-Ring

420631220

$11.48

21

Injector Clip

420853030

$2.46

22

Torx Flange Screw M6 X 25

420641238

$2.68

23

Not Available As Spare Part - Friction Washer

Unavailable

24

Idle Air Control Valve

420665941

$147.52

25

O-Ring

420631780

$3.61

26

Binding Head Screw M5 X 16

420440911

$11.48

27

Snap Ring

420845710

$3.38

28

Position Sensor

420866120

$77.97

29

Phillips Screw M4 X 16

208641660

$0.74

30

Flat Washer 4 mm, Stainless

234042600

$0.92
